ARM-Based System
Product
Specification
AIB-Q6490
Qualcomm® QCS6490, 8-core Kryo™ 670, up to 2.7 GHz
8GB LPDDR4, 128GB UFS 3.1
1 x M.2 B Key (USB 3.1)
1 x GbE (RJ-45)
4 x USB 2.0
12V DC input
Supports Linux, Android, Windows (on request)
CE, FCC, RoHS certified
Operating Temp: -20°C to 60°C

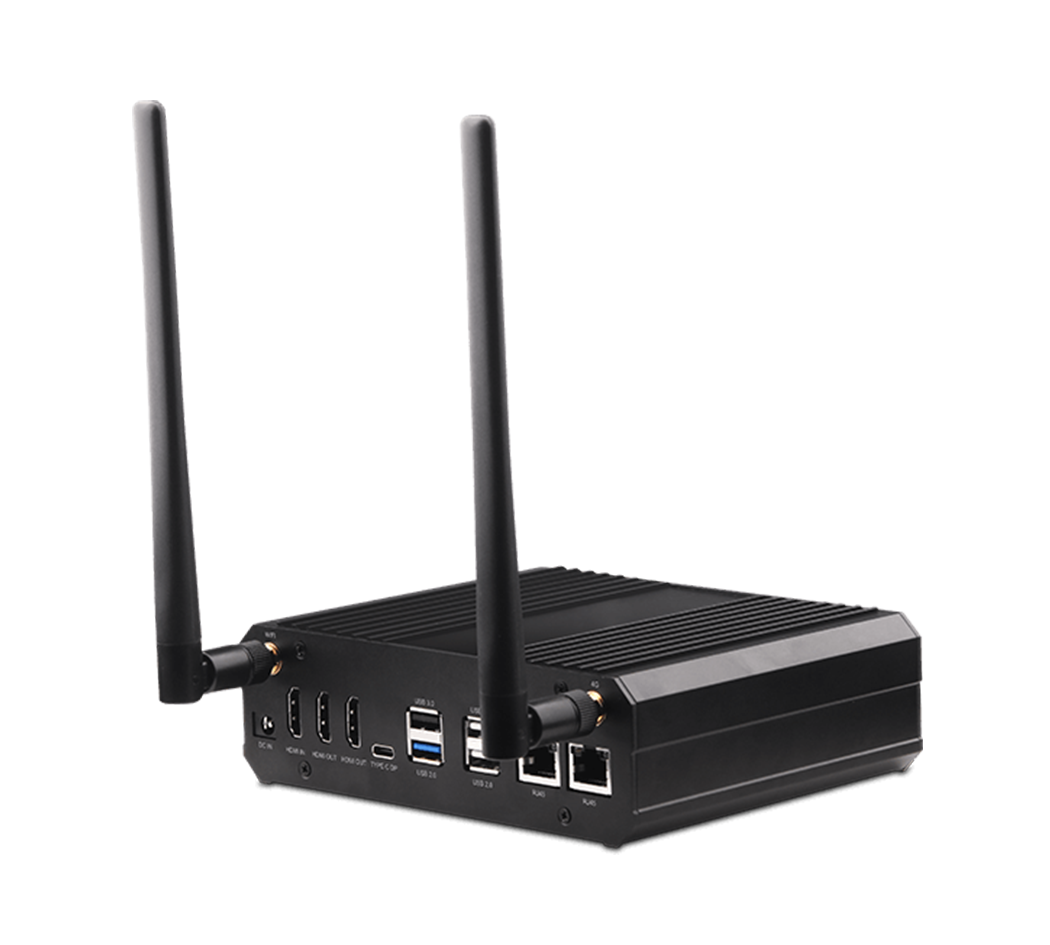

AIB-3588
- RK3588 octa-core 64-bit (A76+A55) processor with integrated 6Tops NPU.
- Supports up to 32GB RAM, 8~128GB eMMC optional, customizable based on customer needs.
- supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding.
- Seamless connectivity: Gigabit Ethernet, WiFi6, Bluetooth, 5G/4G LTE.(option)
- Built-in HDMI®, GPIO, CAN, RS485, USB2.0/3.0, RS232, and more.
- Industrial-grade design for stable 24/7 operation in a temperature range (0~50°C).

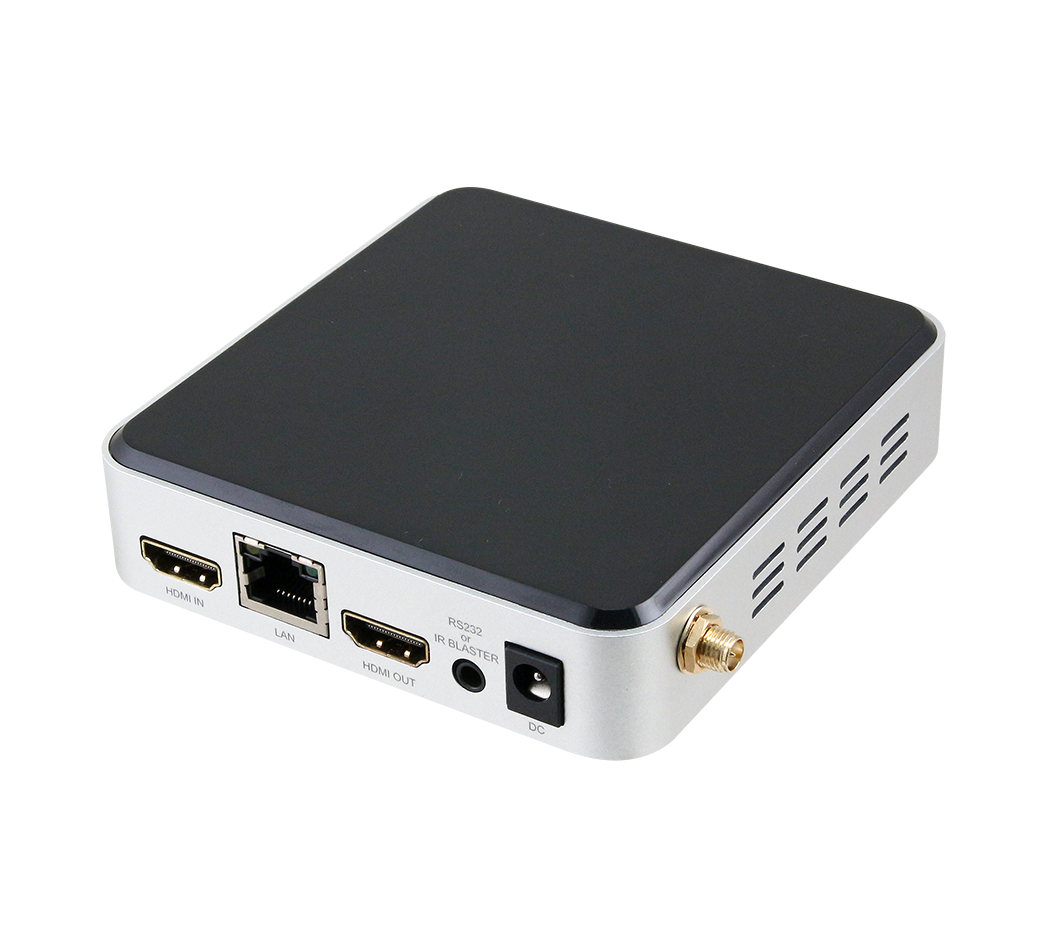

AIB-3566
- Rockchip RK3566 Quad-core ARM Cortex-A55 CPU @ 1.8GHz
- 2GB LPDDR4/32GB eMMC, 4GB LPDDR4 /64GB eMMC expandable via micro SD card
- Stunning 4K Ultra HD display through HDMI®
- Rich I/O: HDMI® In, HDMI® Out, USB3.0, USB2.0, RS232 and IR blaster
- Seamless connectivity: Gigabit LAN, Wi-Fi, Bluetooth
- Fanless, small form factor, VESA-ready
- Supports Android 11
