Infrared (IR) Touch Overlays

Infrared IR touch screens are one of the most reliable touch technologies on the market today.

CDS infrared touch screens consists of a touch frame which is installed in front of the display. The frame is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the touch frame. The bezel shields the parts from the operation environment while allowing the IR beams to pass through, so you are left with a grid of invisible beams in front of the display.

When a touch input is applied, it interrupts the IR light beams. The Photo transistors from X & Y axes detect the IR light beams which have been interrupted and transmit exact signals that identify the X & Y axes coordinates to the PC / host.

Applications for IR Infrared Touch screens include Kiosk, Medical instrumentation, ATM, Retail, Commercial transportation, Advertising display, Digital Signage and many other industrial applications.




  • True Multi Touch without Ghost
  • Slim Bezel
  • Cost Effective
  • Easy Installation
  • High Stability & Reliability
  • Integrated controller


1. High stability – Changes in the time or environment will not cause any drift.

2. High light transmittance – The touch screen has no intermediate touch overlay, enabling light transmittance to reach as high as 100%.

3. Long service life  – Extremely durable, scratch resistant

4. Easy activation – Touch pressure is not required; no special material is required for touch activation. An activating stylus can be used whether soft or hard – conductor or nonconductor.

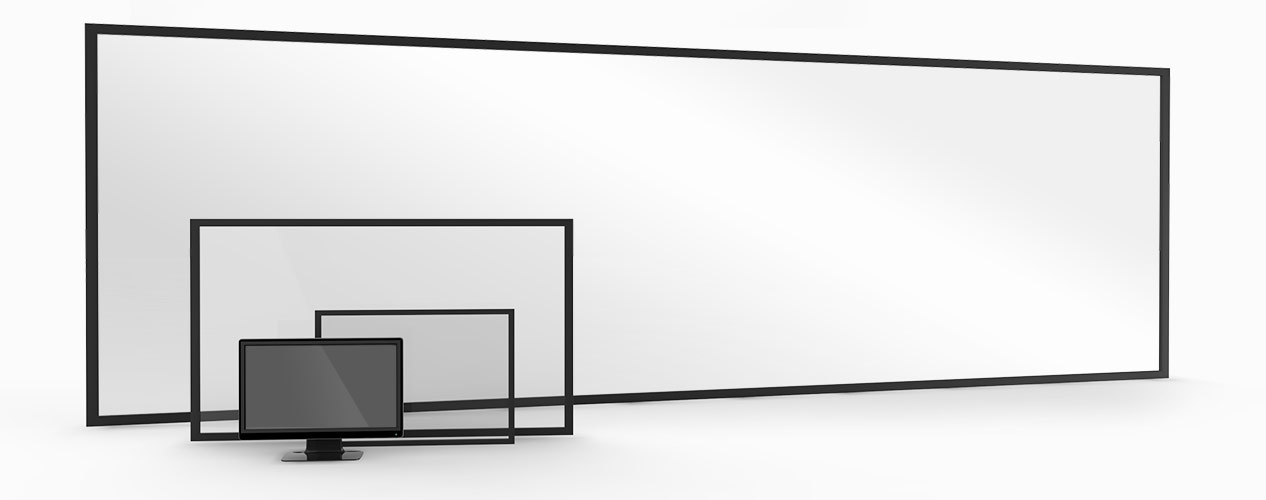

Size possibility of CDS IR touch overlay (large touch screen)


 IR Infrared Touch screens
Available sizes10.4″~103(Custom sizes available upon request)
Touch Input MethodPen, Finger, Gloved hand or any other pointer
Minimum Touch Object5~7mm(depends on each model and size)
Touch Response time4.5 ~ 15ms(depends on each model and size)
Touch DurabilityUnlimited
Resolution16384 X 16384(based on controller resolution)
HousingAluminum, Black
GlassOption(Custom versions available upon request)
Operating VoltageDC4.6V ~ 5.25V
Power consumptionUSB : < 2W, Adapter : < 3.5W
TemperatureOperating : -10℃ ~ +60℃
Storage : -40℃ ~ +85℃(8hr still)
HumidityOperating : 10% ~ 90% RH(Non-condensing)
Storage : 10% ~ 95% RH(Non-condensing)
InterfaceUSB2.0 Full speed, HID Compliant Plug & Play
