Barebone System

Product

Specification

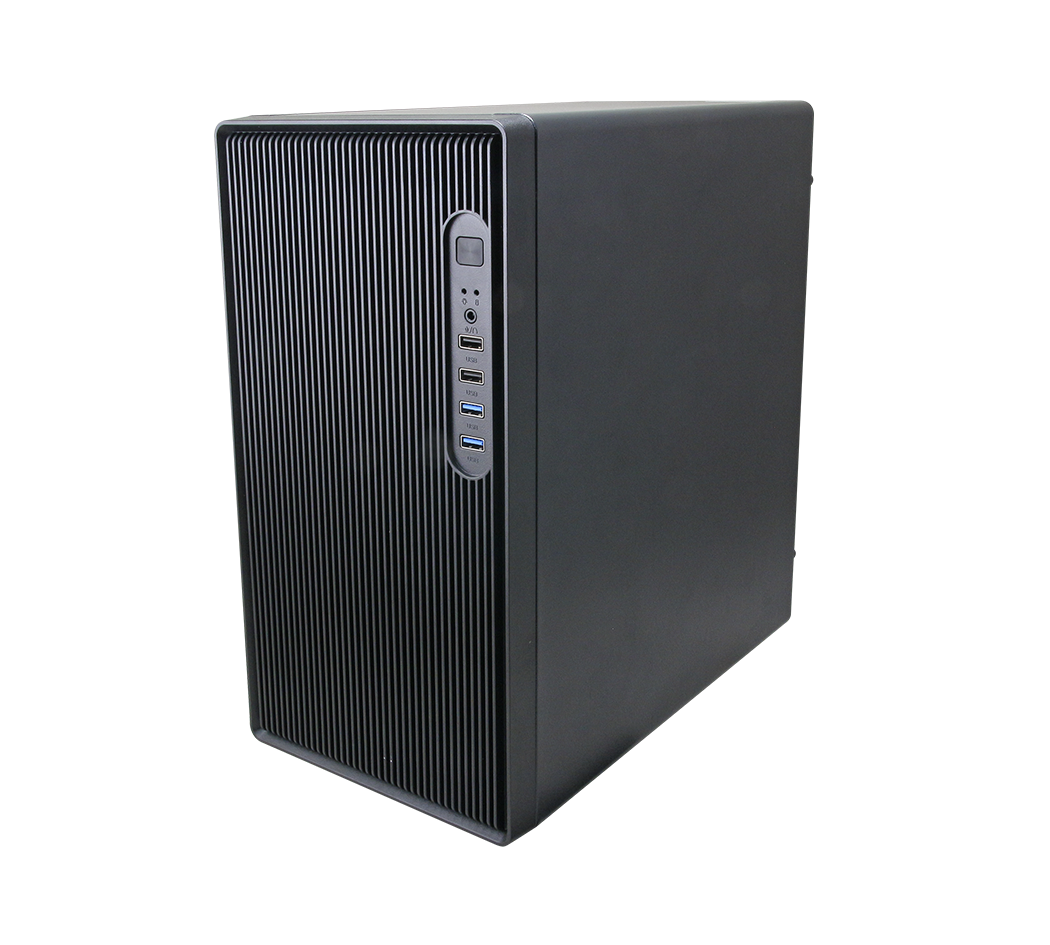

BMX-P820

BMX-P820
  • 14th Generation Intel® Raptor Lake-S Refresh (35 W ) Processors
  • Two 262-pin DDR5 4800MHz SO-DIMM socket, supports up to 64GB Max. (non ECC only)
  • 2 x Intel® i219LM, I226V Ethernet
  • RealTek ALC897 Audio Codec
  • 1 x HDMI 1.4b 4K@30Hz, 2 x DP++ 1.4a 4K@60Hz
  • 3 x SATA III
  • 4 x USB 3.2 Gen1 x 1, 4 x USB 2.0 Type-A
  • 1 x PCIe x16 (Gen4), 1 x M.2 M-Key 2242/2280 NVMe (PCIe x4 + SATA III), 1 x M.2 E-Key 2230 with CNVi Support (PCIe x 1 + USB 2.0)
  • Onboard infineon SLB 9670VQ2.0 support TPM2.0
  • 3 x Audio (Mic in and Line out for Rear IO, Mic in/Line out for Front IO)
  • ATX power

Avalue Capture Form For PDF Download (BMX-P820)

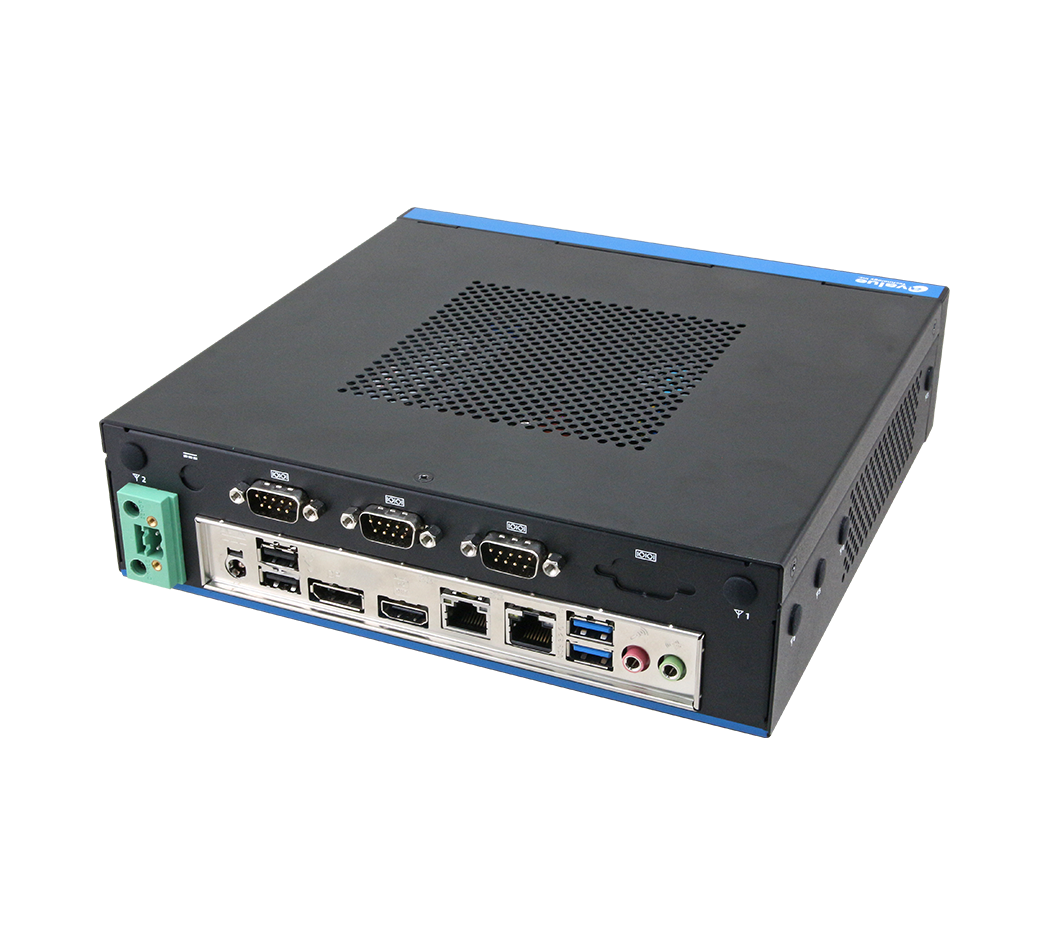

BMX-T820

BMX-T820
  • MX610HD Inside
  • LGA 1700 socket supports 13th Gen Intel® Processor
  • Intel® Integrated UHD Graphic with Xe Architecture (CPU Dependent)
  • Intel® H610E PCH (x4 Gen4 DMI)
  • 2 x Memory Socket (Capacity Max. Up to 64GB DDR5 4800)
  • 2 x Display (HDMI 1.4b, DP 1.2a)
  • 2 x Intel® Ethernet Controller (1GbE, 2,5GbE)
  • 2 x Audio Jack (Mic-In, Line-Out)
  • 2 x Expanslot Slot (M.2 Key-E, Key-M)
  • 3 x COM Port (RSx232, 2xRSx232/422/485)
  • 6 x USB Port (2xUSB 3.2, 4xUSB 2.0)
  • Support Table Stand, Desktop

Avalue Capture Form For PDF Download (BMX-T820)

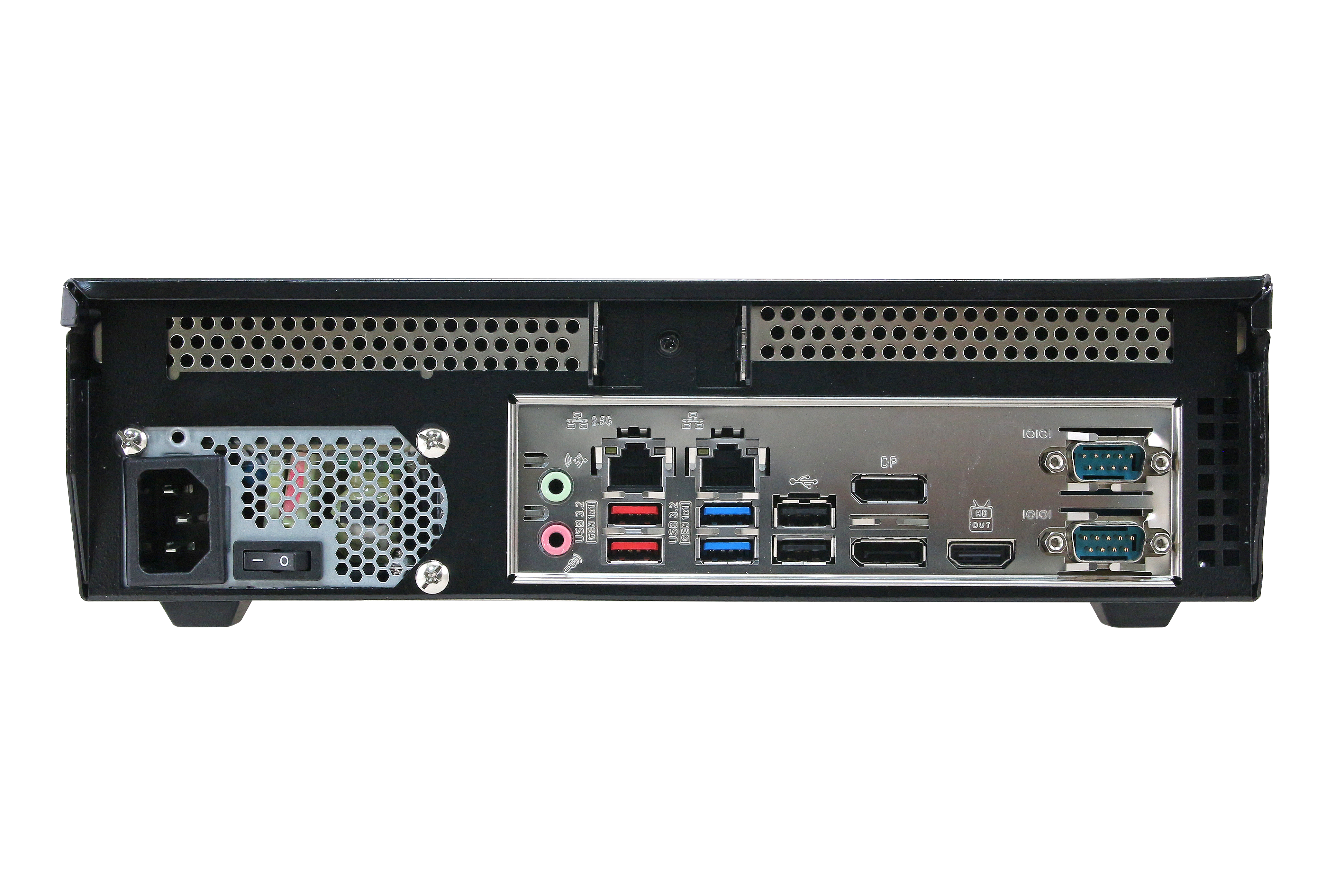

BMX-T550-B

BMX-T550-B
  • Intel® 13th Gen Core™ i9/i7/i5/i3 Processor (35W/65W)
  • Intel® H610E PCH
  • Intel® Iris® Xe/ UHD Graphics (CPU Dependent)
  • 2 x Memory Socket (Capacity Max. Up to 64GB DDR5 4800)
  • 3 x Display (HDMI 1.4b, 2 x DP 1.4a)
  • 2 x Intel® Ethernet Controller (1GbE, 2.5GbE)
  • 2 x Audio Jack (Mic-In, Line-Out)
  • 2 x COM Port (2 x RSx232/422/485)
  • 3 x Expanslot Slot (M.2 Key-E, Key-M, PCIe x 16)
  • 8 x USB Port (4 x USB 3.2, 4 x USB 2.0)
  • Onboard dTPM 2.0 IC

Avalue Capture Form For PDF Download (BMX-T550-B)
