Medical Boxed PC

Product

Specification

Product

Specification

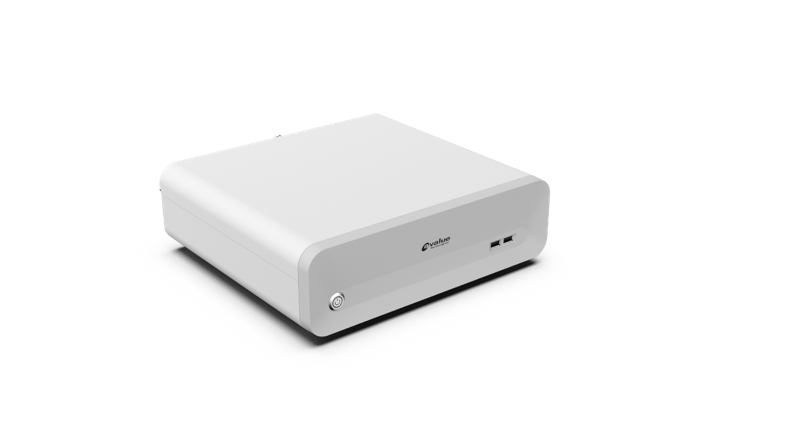

MAB-T660D

MAB-T660D
  • 12/13/14th Generation Intel® Core™ i3/i5/i7/i9 Processors. Max TDP 65W
  • Intel® H610E Chipset
  • 2 x SODIMM sockets support DDR5 5600MHz up to 64GB (Non-ECC) (CPU dependent)
  • 1 x DP 1.4, 1 x HDMI
  • 1 x PCIe x16 Gen 4 (from CPU) (with riser card), 1 x M.2 E-Key CNVi support, 1 x M.2 M-Key NVMe support
  • 1 x Intel GbE LAN; 1 x Intel 2.5 GbE LAN
  • 1 x Internal 2.5” SSD
  • 2 x USB 3.2 Gen1 x1 Type A at Rear, 2 x USB 2.0 Type A at Rear, 2 x USB 2.0 Type A at Front
  • 0~40°C (32˚F ~ 104˚F) Operating Temp
  • Riser Card PCIex16 1 to 1

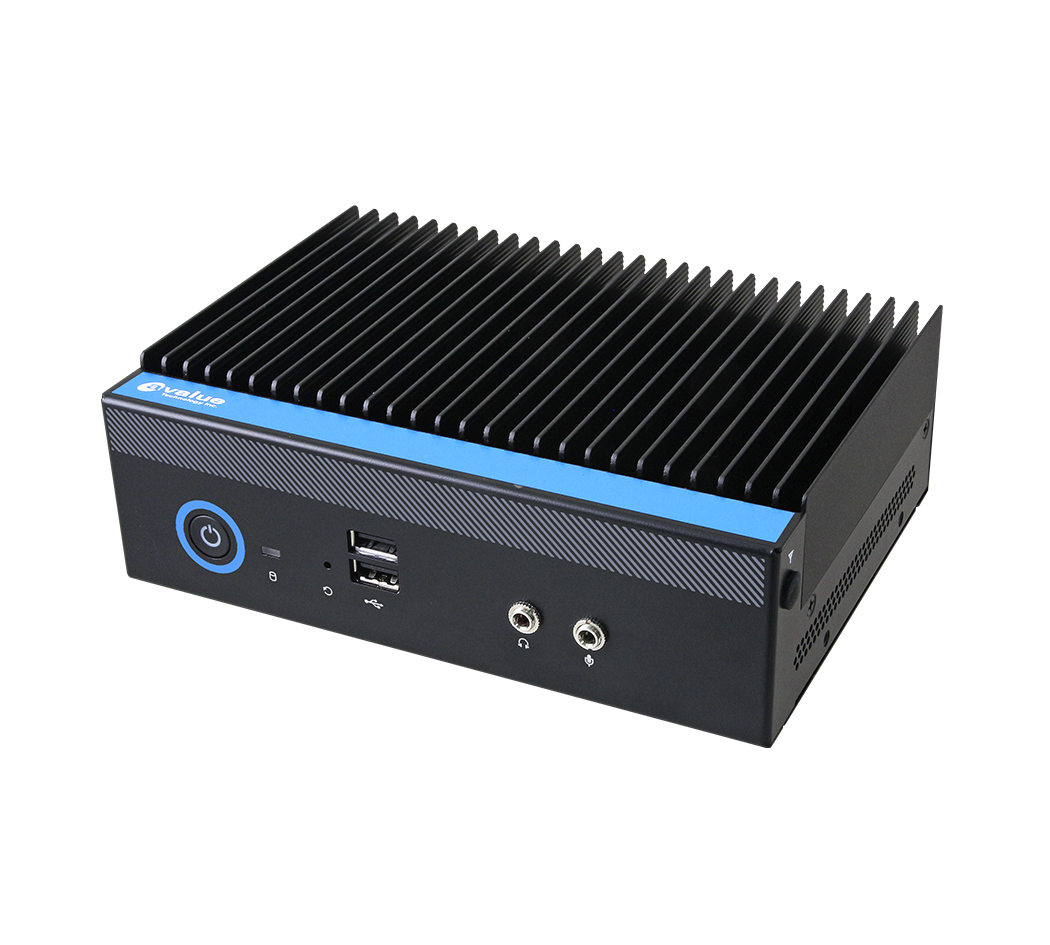

EPC-ASL

EPC-ASL
  • Intel® Processor N97
  • 1-DDR5 4800MHz SO-DIMM socket, Max. up to 16GB
  • Intel® UHD Graphics
  • Dual Expansion Slot M.2, Key-E/B for Wi-Fi, LTE, SSD, I/O module
  • Rich I/O, 6-USB, 1-HDMI, 1-DP, 2-LAN(2.5GbE), 2-RS232, 1-Mic-in, 1-Line-out
  • Wide Range DC Power Input, +12V/24V
  • Fanless Operating Temp, 0 ~ 50°C
  • Default dTPM 2.0, Wall Mount Kit

Avalue Capture Form For PDF Download (MAB-660D)

Avalue Capture Form For PDF Download (EPC-ASL)

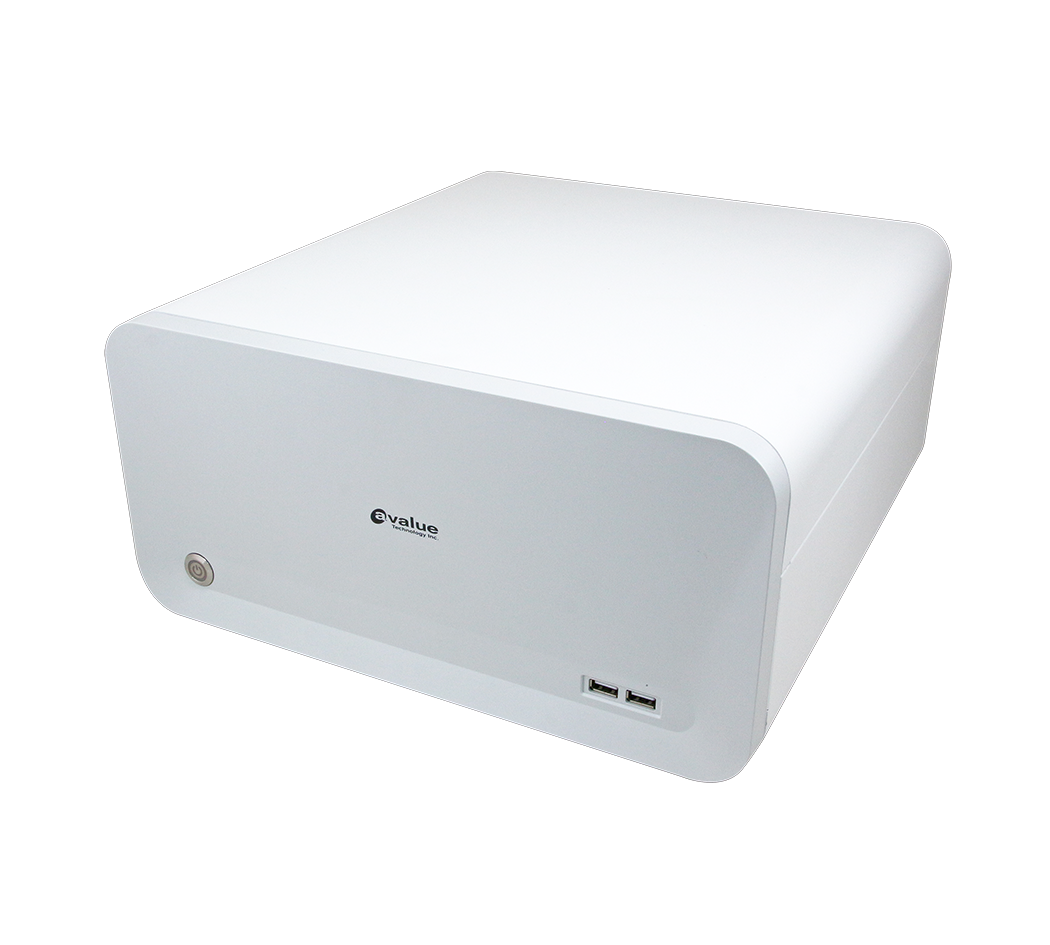

MAB-T600-B1

  • 12/13th Generation Intel® Core™ i3/i5/i7/i9 Processors
  • Intel® R680E PCH
  • 4 x Memory Socket, Max. Up to 128GB DDR5 4400MHz with ECC Support
  • 4 x DP++, 2-2.5 Gigabit Ethernet
  • 6 x USB 3.2 Gen 2, 1 x USB 3.2 Gen 2 Type-C at Rear, 2-USB at Front
  • 2 x Storage, 2-2.5” Drive Bay, Optional 2-3.5” Drive Bay
  • 1 x Gen 5 PCIe x16, 2 x Gen 4 PCIe x4, 1 x Gen 3 PCIe x4

Avalue Capture Form For PDF Download (MAB-T600-B1)
