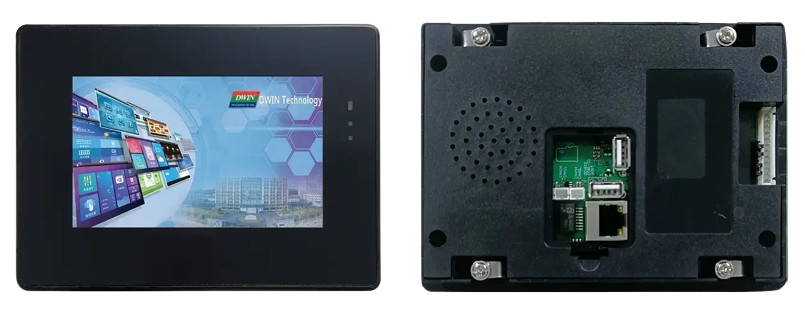

5 inch Industrial Linux Intelligent Display Terminal

Your next embedded dream display

The Industrial Linux Intelligent Display Terminal is designed to meet the rigorous demands of industrial environments. Running on the Linux 5.4 operating system, this advanced display module provides a high level of customisation, reliability, and security for various industrial applications.

Key Features

  • Display: 5.0-inch IPS-TFT-LCD with a resolution of 800×480 pixels, capable of displaying 16.7M colours.
  • Touchscreen: Available in both capacitive and resistive touch options.
  • Durability: IP65-rated enclosure for superior protection against dust and water.
  • Software Environment: Supports secondary development in a QT environment.
  • Multi-Language Support: Includes vector font library, picture library, video library, and audio library.
  • Connectivity: Compatible with network cable connections to PC for seamless project updates.
  • Communication Interfaces: Equipped with RS232, RS485, CAN, and Ethernet ports for versatile external device connectivity.
  • Display Enhancements: Features anti-UV and anti-glare properties for enhanced visibility in various lighting conditions.

Technical Specifications

Master Control Parameters

  • Motherboard Level: Industrial-grade
  • Processor: Allwinner T113
  • CPU: Dual-core ARM Cortex-A7
  • Operating System: Linux 5.4
  • Flash Memory: 8GB EMMC
  • RAM: 128MB DDR3

Display Parameters

  • Colour Depth: 16.7M (24-bit colour: 8R, 8G, 8B)
  • Panel Type: IPS TFT LCD with wide viewing angles
  • Viewing Angle: 85° / 85° / 85° / 85° (Left/Right/Up/Down)
  • Active Area: 108.8mm (H) x 65.6mm (V)
  • Resolution: 800 x 480 pixels
  • Backlight: LED, rated for ≥30,000 hours of continuous use before brightness decay to 50%
  • Brightness: 300 nits with 100 levels of adjustment

Power & Voltage Requirements

  • Operating Voltage: 8.0V ~ 23V
  • Operating Current:
    • VCC = +12V, Backlight ON: 200mA
    • VCC = +12V, Backlight OFF: 100mA
  • Recommended Power Supply: 12V 0.5A DC

Reliability & Environmental Resistance

  • Operating Temperature: -20°C ~ +70°C
  • Storage Temperature: -30°C ~ +80°C
  • Humidity Tolerance: 10% ~ 90% RH
  • Conformal Coating: Yes
  • Electrostatic Discharge (ESD) Protection: Air discharge ±8KV
  • Electrical Fast Transient (EFT) Immunity: ±2KV group pulse interference
  • Protection Rating: IP65 (Front Panel)

Peripheral & Interface Support

  • Serial Communication:
    • 2-way RS232 (UART2 & UART3)
    • 2-way RS485 (UART4 & UART5)
  • CAN Interface: 2-way (CAN0, CAN1)
  • USB Ports: 2-way (HOST x2)
  • SD Card Slot: 1-way, drawer type (Supports up to 64GB)
  • Ethernet Interface: 1-way, 10/100 Mbps
  • Real-Time Clock (RTC): Built-in super-capacitor RTC with accuracy of ±20ppm @25°C
  • Buzzer: Built-in 3V passive buzzer

Dimensions & Weight

  • Physical Dimensions: 160.0mm (W) x 118.0mm (H) x 26.7mm (T)
  • Net Weight: 340g
Customisation & Security

As an open-source platform, Linux allows developers to modify and tailor the system to meet specific industrial requirements. The security features of Linux provide strong protection against malware and unauthorized access, ensuring a stable and robust environment. System administrators have exclusive control over program changes, enhancing security and reducing potential vulnerabilities.

Conclusion

The Industrial Linux Intelligent Display Terminal is a powerful and adaptable solution for industrial automation, human-machine interface (HMI) applications, and other embedded system needs. With its combination of robust hardware, secure Linux OS, and extensive connectivity options, it provides a high-performance display module for diverse industrial scenarios.
