CDS and Avalue Launch Next-Gen Industrial Panel PCs for Diverse Environments

Industrial Panel PCs that will excel in your harsh environment

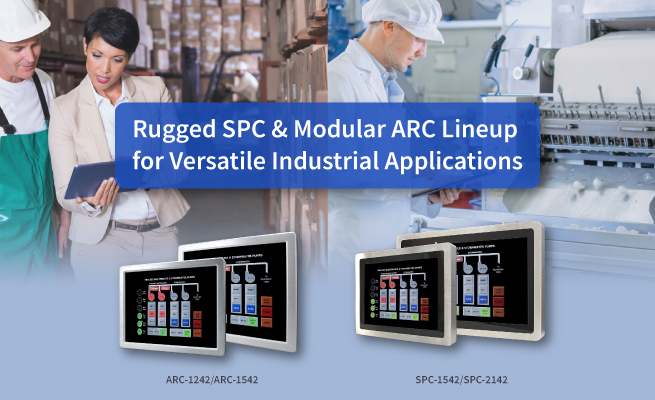

CDS and Avalue Technology have jointly introduced two advanced series of industrial panel PCs—the SPC-1542/2142 and ARC-1242/1542—powered by the cutting-edge 13th Gen Intel® Core™ (Raptor Lake-PS) processors. While both series are built on a shared motherboard platform, they cater to distinct industrial needs by offering robust connectivity and exceptional durability in harsh environments.

SPC-1542/2142: Built for Hygiene-Critical & Extreme Conditions

Specially engineered for sectors where hygiene and durability are critical, the fanless SPC series features IP66/IP69K-rated stainless-steel enclosures. These units are resistant to high-pressure washdowns, dust, and powerful water jets. Available in 15-inch (SPC-1542) and 21.5-inch (SPC-2142) models, they are the ideal solution for:

  • ✔ Food and beverage processing
  • ✔ Pharmaceutical manufacturing
  • ✔ Chemical plants
  • ✔ Other high-hygiene environments

Key Features:

  • ✔ Projected capacitive touchscreen
  • ✔ M12 waterproof connectors (LAN, USB, COM)
  • ✔ Wide operating temperature range (-10°C to 50°C for SPC-1542, -10°C to 45°C for SPC-2142)
  • ✔ Up to 32GB DDR5 4800MHz memory
  • ✔ Suitable for HMIs and rugged kiosks

ARC-1242/1542: Flexible & Expandable for Industrial Automation

The ARC series, rated IP65 at the front and IP41 at the rear, provides extensive peripheral integration for a wide range of industrial applications. Ideal for:

  • ✔ Smart factories and logistics
  • ✔ Warehousing terminals
  • ✔ Retail and hospitality kiosks

CDS and Avalue’s Intelligent Expansion Technology (IET) are a standout advantage, enabling customisable I/O configurations tailored to diverse industrial applications.

Key Features:

  • ✔ IET expansion modules (supports audio, USB/COM, HDMI, CAN bus, GPIO, and more)
  • ✔ Dual touch options:
  • ✔ 5-wire resistive touch (standard on ARC-1242/1542)
  • ✔ Projected capacitive (PCAP) touch (available on -B models)
  • ✔ Comprehensive I/O: USB 3.2, USB-C, dual Gigabit LAN, M.2 slots (Wi-Fi/BT/4G/5G optional)
  • ✔ Wide operating temperature range (-10°C to 50°C)
Operating System & Security Support

Both series support Windows 10/11 and Linux operating systems and are equipped with TPM 2.0, which enhances security and data protection across applications.

For more details, visit https://crystal-display.com/industrial-panel-pc/

Or contact our technical sales team on:

📞 Call us on: +44 (0)1634 791600
📧 Email: info@crystal-display.com
