Introducing Fine Pitch LED: Precision Display Like Never Before
Experience next-level visual performance with Fine Pitch LED technology — delivering ultra-high resolution, seamless images, and vibrant colours for retail environemts, corporate displays, and immersive digital experiences.
What is Fine Pitch LED?
Fine Pitch LED refers to a type of LED display that has a very small pixel pitch. Pixel pitch is the distance between the centers of two adjacent pixels (or LED clusters), and a smaller pitch means a higher pixel density—critical for achieving high resolution at close viewing distances.

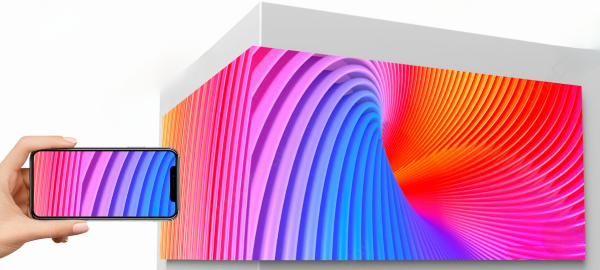

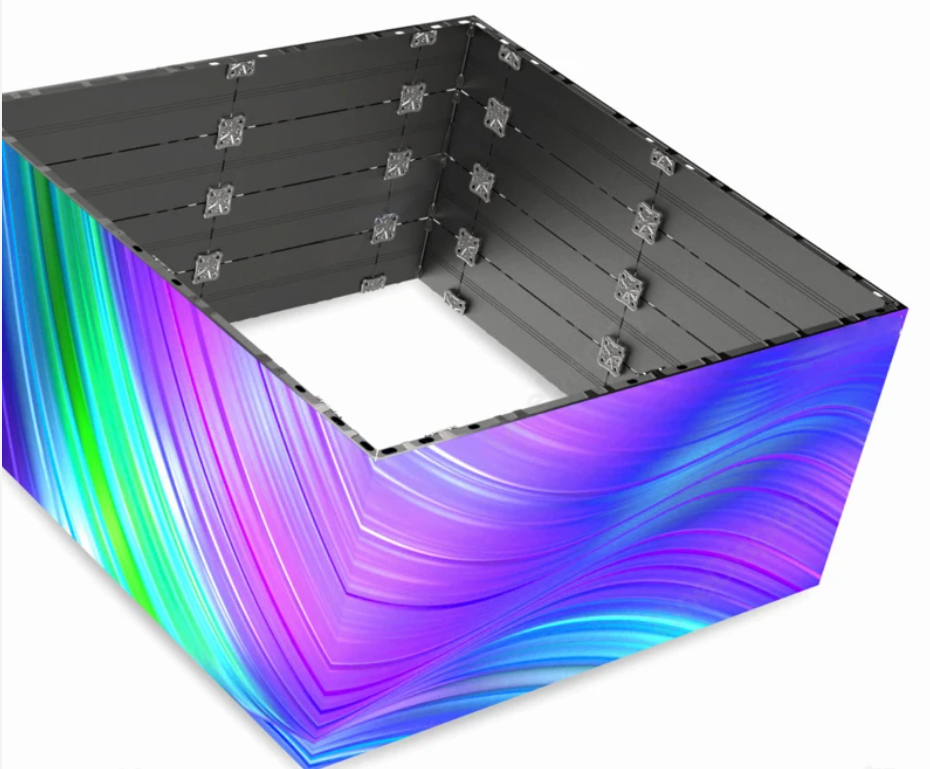

Supports 90-Degree Splicing
Supports 90-degree splicing for innovative corner display solutions. Ideal for retail, exhibitions, or events, it empowers you to create dynamic and versatile display designs.
Excellent Visual Performance
With a high refresh rate of 3840Hz, High Dynamic Range (HDR), high-resolution display, and advanced 24-bit grayscale capabilities, it delivers an exceptional viewing experience—ideal for both live audiences and camera shooting environments.

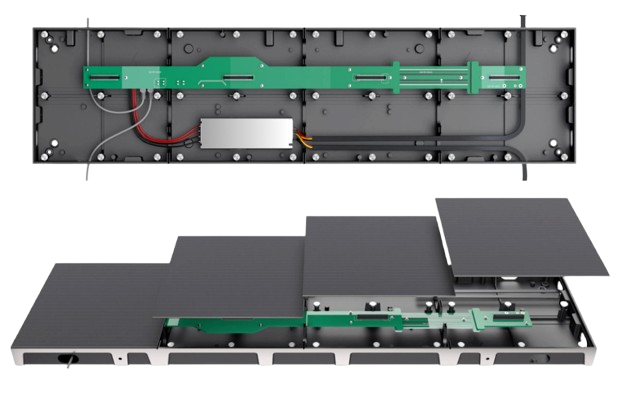

Neater Design
Whether it’s power or network cables, our concealed cable design simplifies wiring, ensuring a clean, safe, and elegant installation.

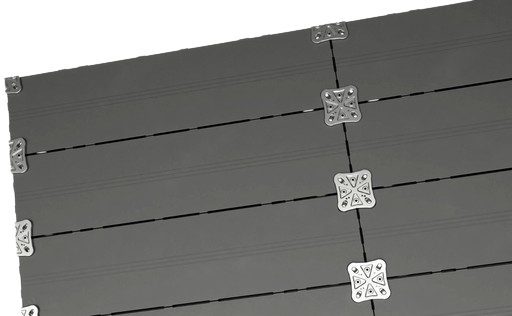

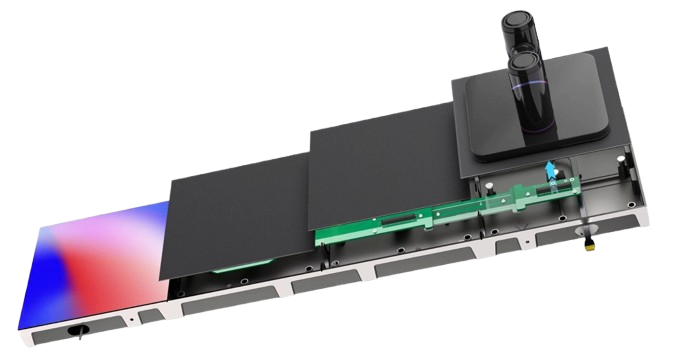

Magnetic & Hard Connection
Quick & Seamless Installation
Check Out Our Fine Pitch LED Wall in Action!

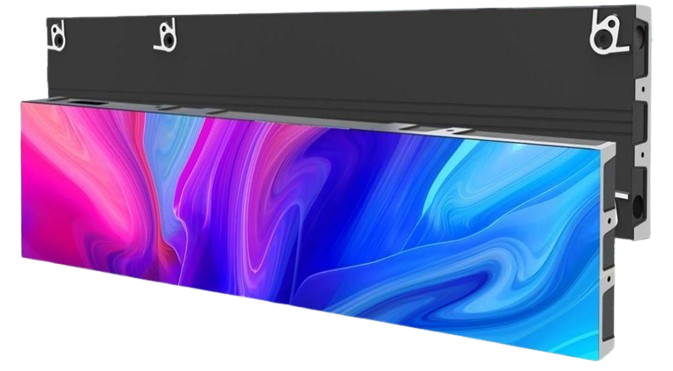

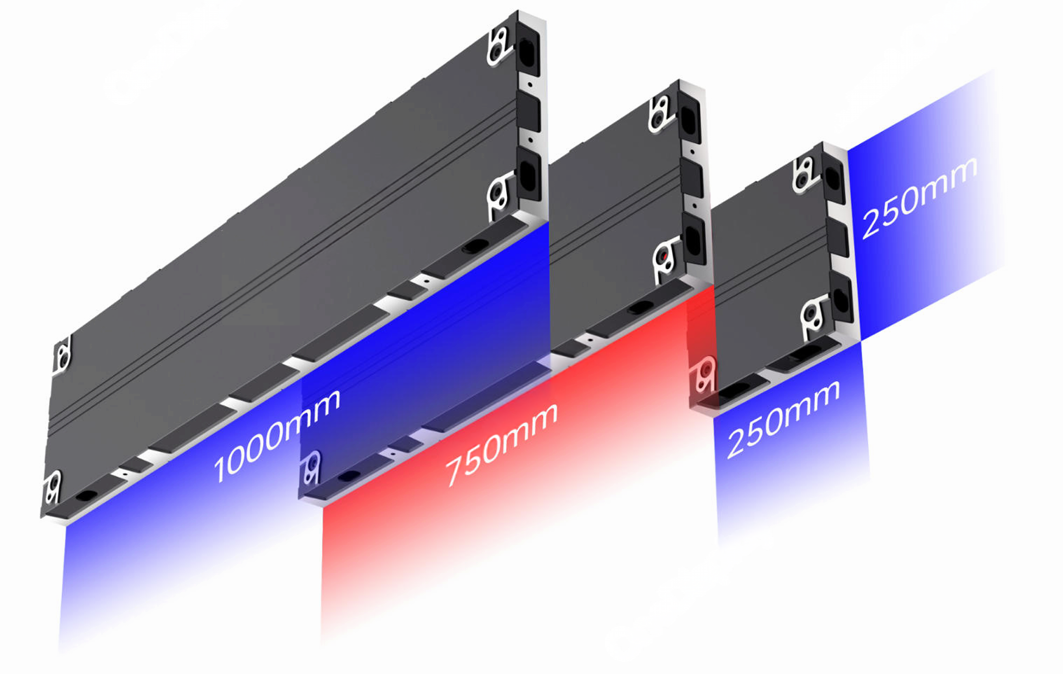

Size & Weight
Different panel sizes give you the flexibility to create a wide variety of screen configurations. Each cabinet is lightweight—ranging from just 2 to 5.5 kg—and features a slim profile of only 41.6 millimeters, making it both compact and space-efficient.

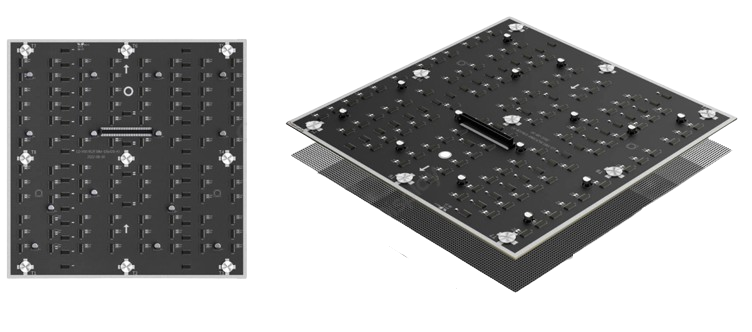

Optional High Protection GOB
Optional LED modules feature polymer encapsulation to resist mechanical stress, providing effective sealing against dust and moisture. This ensures reliable performance in demanding environments and areas with frequent human contact.

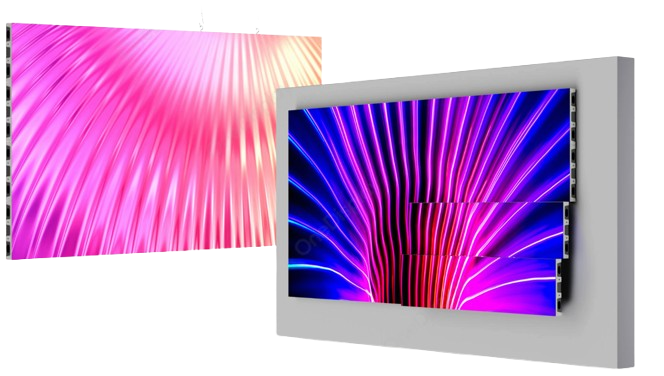

multiple Installation Methods
The flexible structural design supports multiple installation methods—including wall mounting, hoisting, double-sided hoisting, and shelf screen setups—offering adaptability and ease of integration across various environments.
Applications

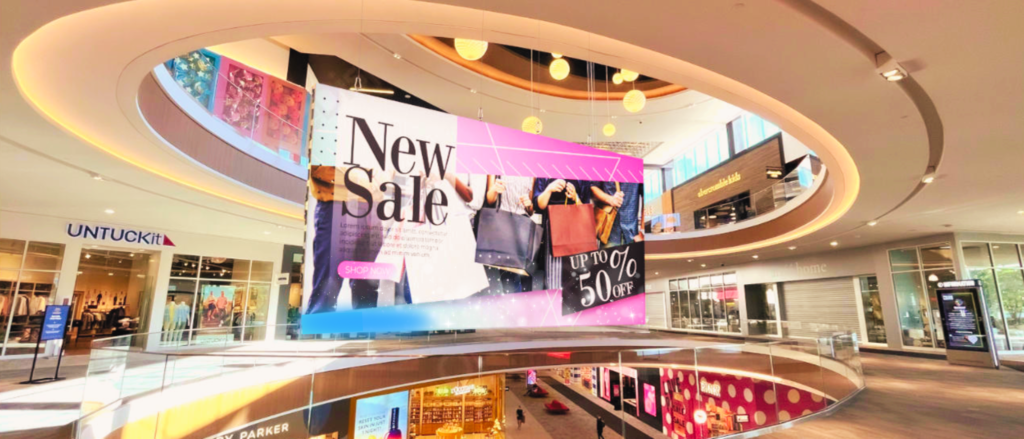

For Shopping Mall

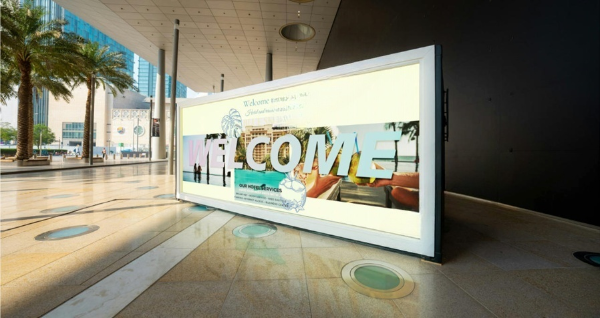

For Event

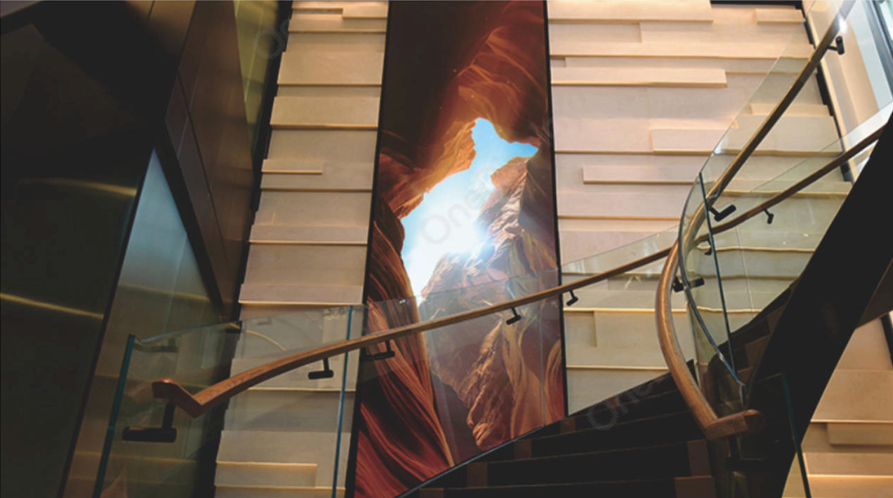

For Store
Product Specification
| Basic Brightness | ||||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.56mm | 1.95mm | 2.5mm | 2.6mm | 2.97mm | 3.91mm |
| LED LAMP Bead Model | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
| Module Resolution | 160×160 | 128×128 | 100×100 | 96×96 | 84×84 | 64×64 |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Panel Resolution | 640×160 | 512×128 | 400×100 | 384×96 | 336×84 | 256×64 |
| Density of Pixel | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Arrangement | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 |
| Panel Weight | 5.5kg / 4kg / 2kg | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 | 4×2 / 4×1 / 3×1 / 1×1 |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Module / Panel Fixed Way | Front | Front | Front | Front | Front | Front |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Brightness | 500nits | 800nits | 1200nits | 800nits | 800nits | 800nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Frame change frequency | 60hz | 60hz | 60hz | 60hz | 60hz | 60hz |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
| Signal Input | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
| Operating Voltage | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz |
| Maximum Power | 500 | 600 | 550 | 550 | 400 | 430 |
| Average Power | 160 | 180 | 160 | 160 | 120 | 125 |
| Operating Environment | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C |
| High Brightness | ||||
|---|---|---|---|---|
| Pixel Pitch | 1.95mm | 2.6mm | 2.97mm | 3.91mm |
| LED LAMP Bead Model | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Module Resolution | 128×128 | 96×96 | 84×84 | 64×64 |
| Module Size | 250x250mm | 250x250mm | 250x250mm | 250x250mm |
| Panel Resolution | 512×128 | 384×96 | 336×84 | 256×64 |
| Density of Pixel | 262144 | 147456 | 112896 | 65536 |
| Module Arrangement | 4×1 / 3×1 / 1×1 | 4×1 / 3×1 / 1×2 | 4×1 / 3×1 / 1×3 | 4×1 / 3×1 / 1×4 |
| Panel Weight | 5.5kg / 4kg / 2kg | 5.5kg / 4kg / 2kg | 5.5kg / 4kg / 2kg | 5.5kg / 4kg / 2kg |
| Panel Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Module / Panel Fixed Way | Front | Front | Front | Front |
| Viewing Angle | 160 / 160 | 160 / 160 | 160 / 160 | 160 / 160 |
| Brightness | 4000nits | 4000nits | 4500nits | 4500nits |
| IP Grade | IP43 | IP43 | IP43 | IP43 |
| Frame change frequency | 60hz | 60hz | 60hz | 60hz |
| Refresh Rate | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz | 1,920Hz~3,840Hz |
| Gray Scale | 14bits~22bits | 14bits~22bits | 14bits~22bits | 14bits~22bits |
| Operating Platform | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) | Windows (Win7, Win10, etc.) |
| Signal Input | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. | DVI,HDMI1.3,DP1.2,SDI,HDMI2.0,etc. |
| Operating Voltage | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz | AC: 110V~240V, 50~60Hz |
| Maximum Power | 600 | 550 | 400 | 430 |
| Average Power | 180 | 160 | 120 | 125 |
| Operating Envrionment | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C | -20°C to 50°C |
Why Choose CDS?
CDS offers high-performance Fine Pitch LED solutions backed by expert support, precision engineering, and customizable designs. With seamless installation options, cutting-edge display technology, and a focus on reliability, CDS delivers exceptional image quality and long-term value—perfect for corporate, retail, broadcast, and control room environments.
