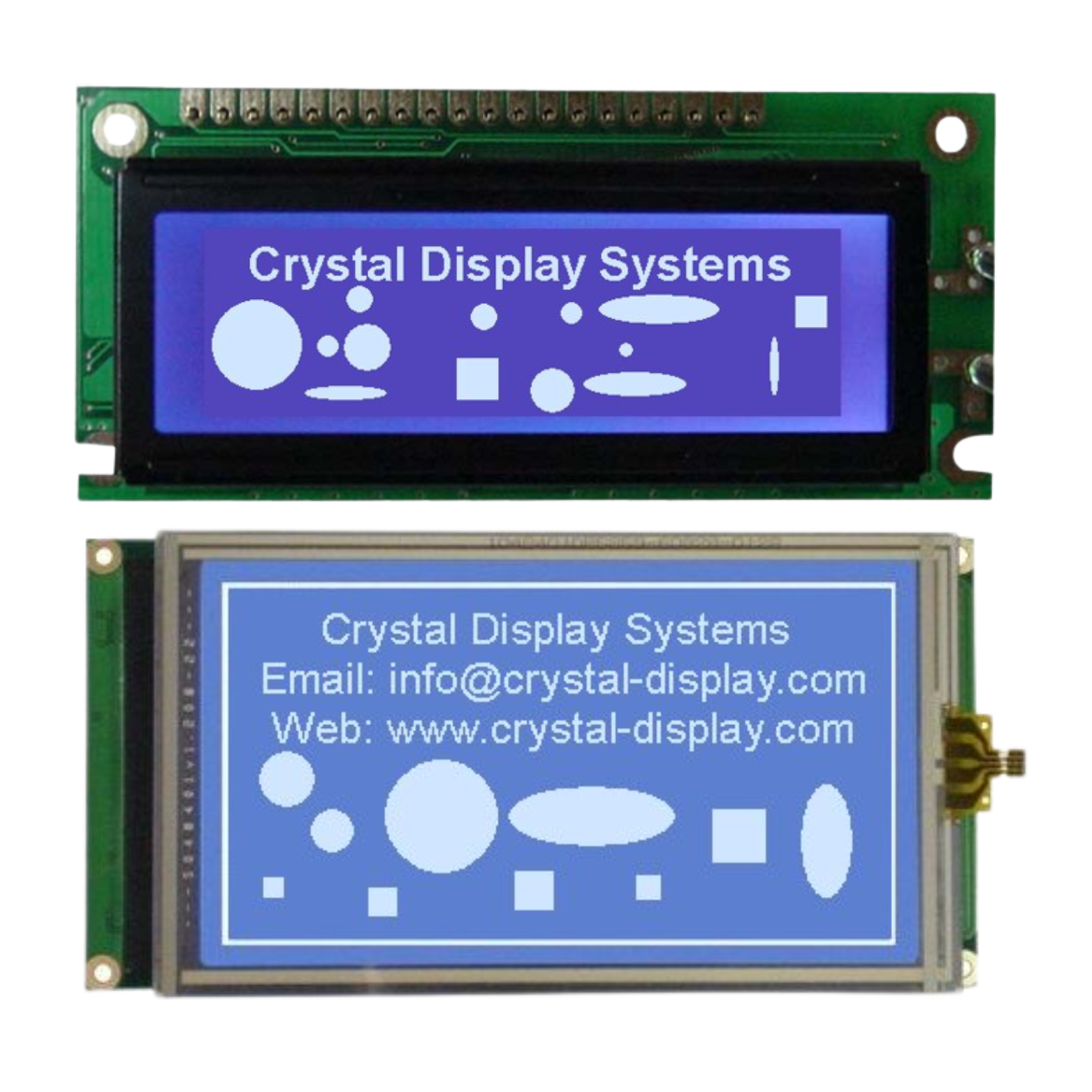

Monochrome LCD Graphic Modules

Simplicity and Reliability in Display Technology

In the continually evolving landscape of display technologies, monochrome LCD graphic modules have not only persevered but also thrived due to their simplicity, reliability, and cost-effectiveness. These displays, primarily designed for black and white functionality, offer a myriad of advantages that position them as the preferred choice in various industries and applications.

Monochrome LCD graphic modules represent a specific display technology renowned for their proficiency in delivering sharp and clear images and text in a single color, typically black and white. They are composed of liquid crystals that adeptly twist and untwist to regulate the passage of light through the display, thereby generating the desired patterns and text.

What is a Monochrome LCD Graphic Module?

A monochrome LCD (Liquid Crystal Display) graphic module is a type of display module that utilizes a monochrome (single color) LCD panel to render graphical content. These modules are commonly used in various electronic devices such as industrial equipment, consumer electronics, medical devices, and instrumentation.

monochrome graphic module

Product Flexibility

At Crystal Display Systems Ltd, we have a deep understanding of the importance of both a flexible product range and the need for rapid sample delivery, pilot batches, and high-volume production. Moreover, we offer these advantages while maintaining an unwavering commitment to product quality. Plus when CDS acquired Craft Data Limited it added some new monochrome lcd graphic modules and increases the range.

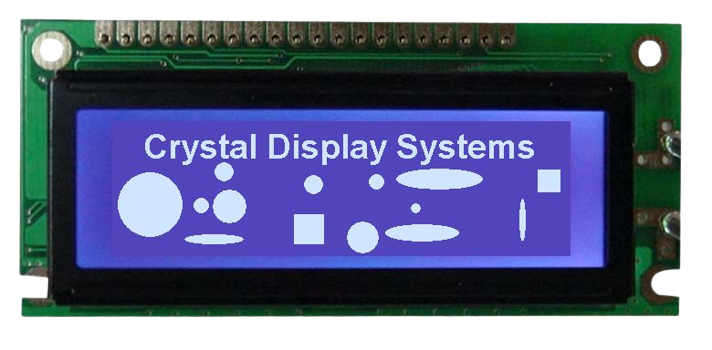

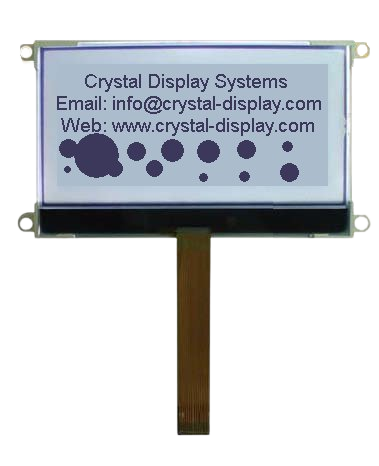

Our product lineup encompasses an extensive variety of monochrome STN and FSTN graphic LCD modules, spanning from 80 x 32 dot resolution to 320 x 240 dots (QVGA), covering all the standard industry sizes and formats, as well as some distinctive options.

Furthermore, these modules are available in a multitude of sizes and resolutions, rendering them suitable for an extensive spectrum of applications. This versatility enables them to seamlessly transition from compact displays designed for handheld devices to more sizable panels intended for use in industrial equipment. Monochrome LCD graphic modules have proven their versatility across numerous sectors.

Features

1. High Contrast and Visibility

Renowned for their high contrast ratio, monochrome LCDs excel in providing excellent visibility, especially in brightly lit environments. Consequently, they prove to be the ideal choice for applications where readability is absolutely critical.

2. Wide Temperature Range

Thanks to their robust design, these modules exhibit a capacity to operate consistently within a wide temperature range. Consequently, they prove themselves as suitable solutions for a diverse range of applications, spanning from indoor to outdoor environments. Whether subjected to freezing cold or searing heat, monochrome LCDs remain steadfast in their performance.

3. Low Power Consumption

Recognized for their exceptional power efficiency, monochrome LCDs consume significantly less power than certain other display technologies. This attribute firmly positions them as an excellent option, particularly for battery-operated devices.

4. Customizable Sizes and Resolutions

Manufacturers offer a diverse range of sizes and resolutions, thereby affording designers the flexibility to precisely choose the optimal module for their unique application. Moreover, with customization options readily available, this ensures that the display can be perfectly tailored to impeccably meet the exact requirements of the project.

5. Durable and Reliable

Monochrome LCD graphic modules have earned a reputation for their robust durability and unwavering reliability. Consequently, their capability to endure shocks and vibrations makes them an ideal choice for demanding industrial and automotive applications.

monochrome lcd graphic modules

Advantages and Disadvantages

Advantages of Monochrome LCD Modules

  • Cost-effectiveness: Monochrome LCDs present a cost-effective alternative when juxtaposed with certain other display technologies. This cost-efficiency establishes them as an economical choice for a broad spectrum of applications.

  • Long Lifespan: With an extended operational lifespan, these displays substantially curtail the need for frequent replacements.

  • Excellent Sunlight Visibility: Monochrome LCDs, with their exceptional performance, shine in providing superb visibility, especially in direct sunlight, a pivotal feature for outdoor applications.

  • Customization: The capacity to meticulously customize the size and resolution of the display ensures that it seamlessly aligns with the requirements of the intended application.

Disadvantages of Monochrome LCD Modules

  • Limited Colour Range: By their inherent characteristics, monochrome LCDs are inherently restricted to showcasing content exclusively in black and white. Consequently, this limitation might render them less suitable for applications necessitating vibrant color displays.

  • Lower Resolution: When placed in comparison with high-resolution displays, it becomes apparent that monochrome LCDs may feature a slightly lower pixel density.

  • Viewing Angle Limitations: These displays could potentially have limitations associated with viewing angles. Consequently, this could lead to a decline in image quality when observed from extreme angles.

Applications

Our Monochrome LCD graphic modules can be found in a range of applications across diverse industries, including:

Custom Touchscreen Design
Automotive

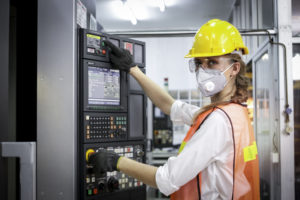

1. Industrial Control Systems

Within industrial settings, these displays fulfill a crucial role by enabling the visualization and control of diverse processes. It is their exceptional durability and unwavering reliability that render them an outstanding choice, particularly in the most demanding and harsh environments.

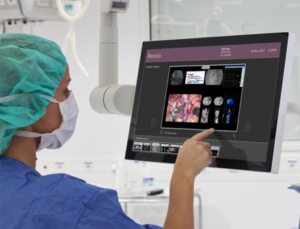

2. Medical Equipment

Monochrome LCDs are frequently employed within medical devices, specifically in patient monitors. In these instruments, the imperative attributes of clarity and precision are of paramount significance to healthcare professionals.

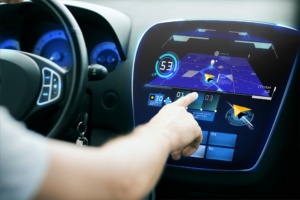

3. Automotive Displays

Monochrome LCDs hold a significant place within vehicles, where they are utilized in a variety of applications. These include instrument clusters, GPS systems, and other information displays essential for in-vehicle information and navigation.

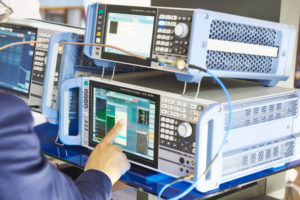

4. Test and Measurement Instruments

Instruments designed for the purposes of testing, measuring, and data analysis commonly integrate monochrome LCDs into their design. This strategic inclusion ensures that data representation is both clear and highly precise.
