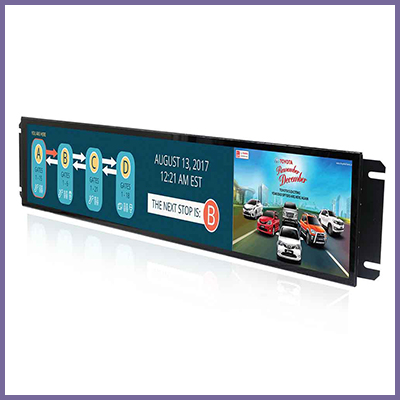

CDS 37.6 inch EN50155 Full IP54 Fanless Panel PC for Railway

/

Crystal Displays Launch the 37.6″ EN50155 Railway Full IP54 Fanless Panel PC Key Features; Intel® 6th Skylake mobile processor support 37.6″ LCD, 1920 x 540, 1000 nits Contrast ratio: 8000:1 178°(H),178°(V) viewing angle EN50155 certificated for railway Full IP54 and fanless design Support 24/36/48/72/96/110 VDC input with M12 connector Anti-Shock and vibration Operating temperature –  -25°C ~ 55°C Dimensions – 1039.6 mm(W) x 67.8 mm(D) x 310.1 mm(H) Our experienced sales team are dedicated to assisting our customers in the research and development of their design so that we achieve the perfect solution for any application, together. Take a look at our standard Panel PC offerings here – Panel PCs but we can offer custom solutions so please discuss your requirements and projects with us. Or if it is stretched that is interest to you please check out our full range here – Stretched LCD Monitors  For more information please email info@crystal-display.com or visit our contact page for our full contact details.

CDS instrumentation market
Industrial TFT Displays

Displays for Instrumentation From CDS

/

The process automation and instrumentation market is expected to increase leading to the increased importance of reduced operating costs and production efficiency, adoption of digital technologies, increased adoption of industrial automation and process control, and optimum utilisation of resources. So, let CDS help you with one of the key factors propelling the growth of the process automation and instrumentation market. CDS have a wide array of products designed and developed for Instrumentation applications. We have focused our entire range on high quality, industrial grade products to ensure our solutions offer both the performance and also the reliability that our customers have come to expect from our displays. We have the ability to customise our displays and touchscreens to ensure the display is fully suitable for your application. Products include; open frame monitors (customised to your requirements), LCD TFT displays, EL displays, E-paper, stretched displays, square displays, embedded Panel PCs, highly reliable interface boards, sunlight readable displays, embedded boxed PCs, touchscreens and more. Please see below; For more information please visit – http://crystal-display.com/products/instrumentation-displays/ Or please contact us via our new contact details

CDS IP54 stretched for railway
Embedded

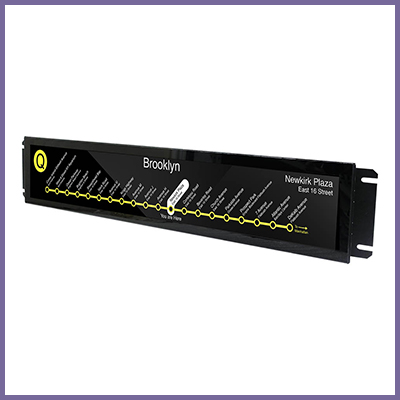

28 inch EN50155 Railway Full IP54 Fanless Panel PC

/

Crystal Displays Launches the 28″ EN50155 Railway Full IP54 Fanless Panel PC Key Features;  Intel® 6th Skylake mobile processor support 28″ LCD, 1920 x 357, 1000 nits 6500:1 contrast ratio 178°(H),178°(V) viewing angle EN50155 certificated for railway Full IP54 and fanless design Supports 24/36/48/72/96/110 VDC input with M12 connector Anti-Shock and vibration Dimensions – 815 mm(W) x 68.6 mm(D) x 78.1 mm(H) Operating temp-  -25°C ~ 55°C We are dedicated to helping our customers design the perfect solution for any application. Please contact our experienced sales team who can help you today! Take a look at our standard Panel PC offerings here – Panel PCs but we can offer custom solutions so please discuss your requirements and projects with us. Or if it is stretched that is interest to you please check out our full range here – Stretched LCD Monitors  For more information please email info@crystal-display.com or visit our contact page for our full contact details.

CDS 4K ultra slim stretched
Special Shaped Displays

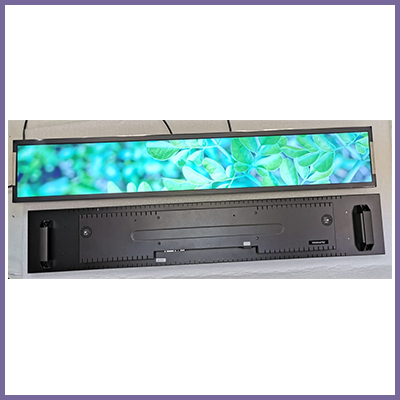

New Ultra Slim Stretched LCD Models

/

Need an ultra wide display but also in need of something ultra slim too? Look no further 🙂 here at CDS we already have multiple ultra slim options for ultra wide stretched as below; MO-210-001-EW-1200-L – 21″ Stretched POS High Bright LCD Monitor, 1200 cd/m², 1920×132 resolution, 552.6 x 59.9 x 36.5 mm outer dimensions M0-275-001-EW-1000-L – 27.5″ Stretched LCD POS Display (Shelf Edge), 1000 cd/m², 1366×70 resolution, 722.1 x 69.7 x 38.8 mm outer dimensions MO-348-001-EW-2000-L – 34.8″ High Bright Stretched LCD Monitor, 2000 cd/m², 1920×264 resolution, 902 x 151.9 x 62.2 mm outer dimensions MO-435-001-EW-2000-L – 43.5″ High Bright Stretched LCD Monitor, 2000 cd/m², 1920×268 resolution, 1124.3 x 187.4 x 64.6 mm outer dimensions MO-478-001-EW-1600-L – 47.8″ High Bright Stretched LCD Monitor, 1600 cd/m², 1920×178 resolution, 1247.2 x 154.1 x 62.9 mm outer dimensions Newly launched slim versions for 2020; MO-188-001-EW-500-G  – 18.83″ (21.5″ 1/6 cut), 1920 x 182 resolution, active area 476.6 x 45.1 mm with 500 nits brightness and wide viewing angle MO-479-001-EW-1000-G – 47.9″ (55″ 1/5 cut), 1920 x 206 resolution, active area 1209.6 x 129.8 mm with 1,000 nits brightness and wide viewing angle Take a look at our full offerings here – Stretched Displays If you have any interest in these super slim sizes please get in contact so our sales team can assist you with your project! For more information please email info@crystal-display.com or visit our contact page for our full contact details.

CDS large format stretched LCD
Special Shaped Displays

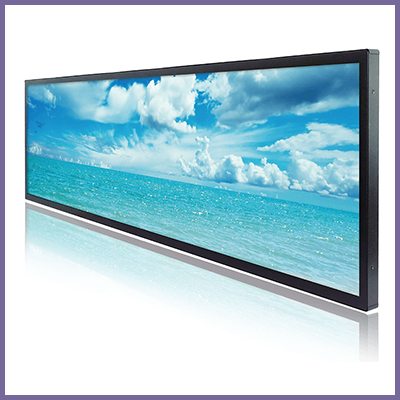

CDS Stock Ultra Wide Stretched Monitors for Customers

/

Here at CDS we understand that an 11 weeks lead time is sometimes impossible for many projects. For most projects, the displays are designed in many months in advance so it is not an issue for a custom cut and built to order stretched monitor but there are circumstances where customers can not wait 11 weeks to design in a sample and then wait another 11 weeks for the roll out. In these cases we are here to help with our stocked offerings. From now on we will be stocking the below models; The MO-376-003-EW-1000-L, 37.6 inch;  Resizing display creating an aspect ratio of 16 : 4.5 Sunlight readable& high brightness (1,000 nits) Resolution: 1920 x 540 Wide view angle of 178° (H), 178° (V) Low power consumption BL MTBF: 100,000 hours The MO-280-004-1000-L, 28 inch;  Resizing display (aspect ratio of 16:3) Sunlight readable, high brightness (1,000 nits) Resolutions: 1920 x 357 Wide viewing angle of 178° (H), 178° (V) EN50155 certified BL MTBF: 70,000 hours The MO-495-003-1200-L, 49.5 inch;  Resizing display (aspect ratio of 16:4.5) Sunlight readable, high brightness (1,200 nits) Resolutions: 1920 x 538 Wide view angle of 178° (H), 178° (V) Low power consumption BL MTBF: 70,000 hours For more information on our stretched display range please visit http://crystal-display.com/products/stretched-displays/ Or contact our experiences sales team on +44 (0) 1634 327420 or email info@crystal-display.com

CDS window rod displays
Digital Signage

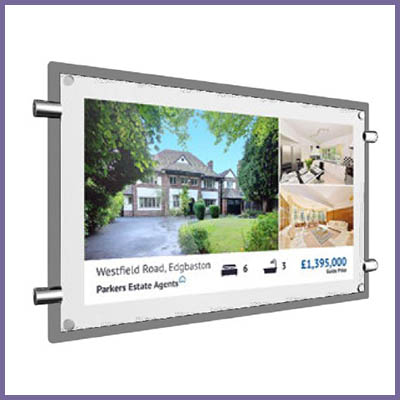

Rod Powered Digital Signage for Window Displays

/

New 15″ digital rod displays! Displays that are powered via rods with no mains cable required! Other key features and benefits;  1,000cd/m² Sunlight Readable Digital Light Pockets Plug and Play – the most straightforward way to upload content to the screen Rear pouch for printed signage at the rear – really maximising space Attractive LED illuminated bevelled edge to compliment traditional static light pockets seamlessly Synchronise Multiple Displays for perfect unison Check out the YouTube overview as below;  To check out even more incredible displays in our digital signage range please visit – http://crystal-display.com/category-digital-signage/ Or to receive more information about any particular product or project please contact our sales team via email or call us directly on +44 (0) 1634 327420 and our experienced team will be of service.

CDS stretched LCD monitor
Special Shaped Displays

7 New Stretched Models Introduced for 2020

/

7 newly launched ultra-wide stretched LCD displays. New resolutions with new cuts and great viewing angles! More choice for new opportunities with stretched displays this year! Please see the newly introduced models to our line-up; 15.3″ (18.5″ 1/3 cut), 1280 x 342 resolution, active area 374.8 x 100.1 mm with 500 nits brightness and wide viewing angle 18.83″ (21.5″ 1/6 cut), 1920 x 182 resolution, active area 476.6 x 45.1 mm with 500 nits brightness and wide viewing angle 21.79″ (23″ 3/4 cut), 1920 x 818 resolution, active area 509.2 x 216.9 mm with 550 nits brightness and wide viewing angle 23.9″ (27″ 1/3 cut), 1920 x 359 resolution, active area 597.9 x 111.8 mm with 500 nits brightness and wide viewing angle 29.29″ (32″ 3/5 cut), 1920 x 704 resolution, active area 698.4 x 256.1 mm with 500 nits brightness and wide viewing angle 29.37″ (32″ 3/4 cut), 1920 x 720 resolution, active area 698.4 x 261.9 mm with 500 nits brightness and wide viewing angle 47.9″ (55″ 1/5 cut), 1920 x 206 resolution, active area 1209.6 x 129.8 mm with 1,000 nits brightness and wide viewing angle Available as panel and kits for integration or as chassis monitors with inbuilt media players and more. Touch options are also available, just let us know your requirements. Take a look at our full offerings here – Stretched Displays If you have any interest in these sizes please get in contact so our sales team can assist you with your project! For more information please email info@crystal-display.com or visit our contact page for our full contact details.

CDS stretched displays for rail
Special Shaped Displays

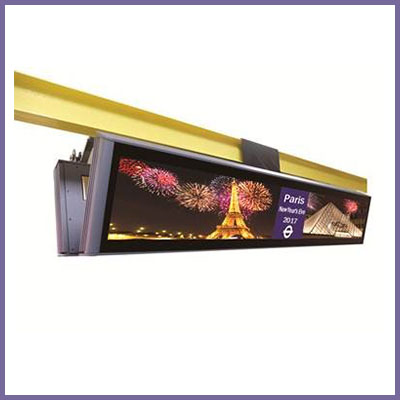

57.4″ Double Sided 4K Stretched Panel PC

/

Check out the PPC-574-001-DS-EW4K-1000-L, a 57.4″ Double Sided 4K Stretched Panel PC. An IP54 rated V shape display with 4mm AR glass designed for the transportation market. With special aspect ratio 16:3.4, wide resolution 3840 x 807 and high brightness 1000 nits. This ruggedised outdoor unit is designed for street level with IP54 waterproof and high built in performance computer to deliver informative messages and advertising content. PPC-574-001-DS-EW4K-1000-L is a true plug & play solution that includes everything required for outdoor displays including the computer, WiFi connectivity and resistant glass. Key Features & Benefits; Double-sided 57.4” resizing LCD Ultra-Wide Screen (16 : 3.4) High Brightness 1000 nits High Efficiency LED 4mm Thick Resistant Glass IP54 Environmental Rating Intel® Skylake-U Series Processor Storage SSD 64GB BL MTBF: 100,000 hours Here at CDS we are dedicated to innovation with our models for any application. Check out the full spec here;  57.4″ Double Sided 4K Stretched Panel PC from Chris Bartram, Digital Displays Specialist With a strong support team and highly experienced R&D team we can customise a solution for you! For more information on our stretched display range please visit http://crystal-display.com/products/stretched-displays/ Or contact our experiences sales team to discuss your projects on email info@crystal-display.com

cds stretched tft panel
Uncategorized

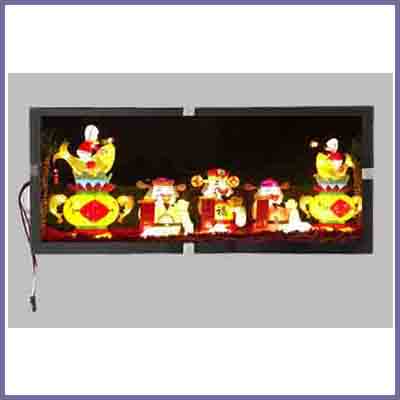

Newly Launched 14.3 inch Bar Type TFT LCD

/

The spectacular bar type TFT LCD PNL-143-EW-400-M with a resolution of 1280RGBx512, LVDS interface and 400nits brightness. Key Spec info: Active area – 337.92 x 135 mm Contrast ratio – 1000:1 Outline dimensions – 368.6(H) x 166.4(V) x 22.2(D) mm (Typ.) Anti-glare type, Hardness 3H surface treatment Operating temp: 0 to +50 degrees Celsius We can improve the brightness on this display but there will be a MOQ. PCAP touch overlays are also available with an MOQ. For more information on Crystal Displays stretched display range please visit http://crystal-display.com/products/stretched-displays/ Or contact them on +44 (0) 1634 327420 or email info@crystal-display.com

cds boe stretched displays
Uncategorized

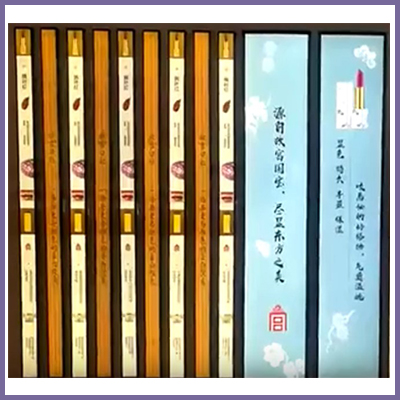

New 47.1 inch Ultra Ultra Wide Stretched Displays

/

Brand new 47.1″ ultra high resolution ultra wide stretched monitors with ultra wide viewing angles of 178 degrees, 500 nits brightness, 1000:1 contrast and more. The BOE DV471FBM-N10 panel is here! With an amazing resolution of 3840 x 160 and active area of 1,196.16 x 49.84 mm this displays is super long and super stretched. Full dimensional outline – 1,209 x 62.9 x 14.5 mm. Horizontal arranged back-light, 2-LED lighting bar type with 50,000 hours (to half life) backlight life time. See how stretched they are in the below video; For more information on Crystal Displays stretched display range please visit http://crystal-display.com/products/stretched-displays/ Or contact them on +44 (0) 1634 327420 or email info@crystal-display.com
