Core Monitors
Budget Friendly Professional Monitors
Adaptable 24/7 commercial grade AV monitor with simple digital signage media player
IPS Panel
With 450cd/m² the IPS panel shines brighter than any domestic television while delivering superior image quality and colour depth at 178° ultra wide viewing angle in both landscape and portrait orientations.
Narrow Bezel
A narrow bezel helps draw attention to the screens images and not the display for maximum impact messaging. Thanks to the
narrow bezel these monitors can also be used as part of a budget friendly video wall.
Built-in Media Player
These displays feature AV inputs and a built-in HD media player, enabling content playback directly from a USB drive. Simply load your pictures and videos onto a USB stick, insert it, and the screen will play them in a continuous loop.
- 24/7 Commercial Use
- Built in Speakers
- Power Timer
- LED Backlight
- Technology
- Smart Temperature
- Control System
Product Specification
Specification
Part Number
CDS-320-PM-X
CDS-430-PM-X
CDS-500-PM-X
CDS-550-PM-X
Diagonal
32″
43″
50″
55″
Resolution
1920×1080
1920×1080
1920×1080
1920×1080
Display Area
698.4×392.85
941.2×529.4
1073.78×604
1209.6×680.4
cd/m²
450
450
450
450
Overall Size
716.2×415.05×45.95
963.6×557.9×46.1
1090.4×621.3×56.9
1232×708.9×50.4
Weight
8.46kg
11.2Kg
18kg
19.45kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Contrast Ratio
4000:1
AV Inputs
Video
HDMI, VGA, BNC
Control
RS232
Audio
Audio Socket (3.5mm)
Speaker Type
5W, 8Ω (x2)
Environmental
Operating temp
0°C to 40°C
Storage temp
-10°C to 55°C
Operating Humidity
10% to 80%
Storage Humidity
10% to 90%
Media Player
Media Formats
Video (AVI, MP4), Audio
(MP3), Image (JPG,
BMP)
Large Format
Budget Friendly 4K UHD Digital Signage
Ultra-high definition professional monitors with built-in 4K Android media player
Remarkable 4K Display
With four times the resolution of Full HD you can achieve a truly immersive experience with an incredible image quality. The 4K resolution is now compatible with the integrated Android Media Player, our CMS software, HDMI channels and third party devices, giving you ultimate flexibility.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos on a USB stick, insert in the display, wait for your content to copy over and then remove. Your images and videos will now play in a continuous loop.
Integrated Android Player
There is an integrated 4K Android media player inside the screen allowing you to upgrade to a network version without needing any additional hardware. You can also install third party Android apps if required.
- Lightweight Design
- 24/7 Commercial Use
- Slim Bezel
- Connect Devices
- ECO-Friendly Power Timer
- Built in Speakers
Product Specification
Specification
Part Number
CDS-650-PM4K-X
CDS-750-PM4K-X
CDS-860-PM4K-X
Diagonal
65″
75″
86″
Resolution
3840×2160
3840×2160
3840×2160
Display Area
1428.5×803.5
1650.2×928.3
1895×1066
cd/m²
450
450
450
Overall Size
1463.2×838.3×76.4
1685.6×963.7×76.4
1930.8×1101.8×76.4
Weight
23.54kg
33.15kg
51kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
AV Inputs
Video
HDMI In x3, HDMI Out, USB 2.0, USB 3.0, USB Type-C, Audio Out, SPDIF, RS-232, RF45 in, RJ45 Out
Speaker Type
10W (x2)
Environmental
Operating temp
0°C to 40°C
Storage temp
-20°C to 60°C
Operating Humidity
10% to 90%
Storage Humidity
10% to 90%
Computer / media player
Media Formats
Video
(MPEG1/MPEG2/MPEG4
/H.264/WMV/MKV/TS/F
LV), Audio (MP3, ACC),
(JPG/JPEG/BMP/PNG)
Media resolution
3840×2160
CPU
A55×4
Graphic engine
Mali G52MP2
RAM
4GB
Hard drive / eMMC
32GB
USB
USB 3.0 and USB 2.0
LAN
100M/1000M Ethernet
Wi-Fi
802.11b/g/n/ac; 2.4G
and 5G
Architecture
64-bit
OS
Android 11

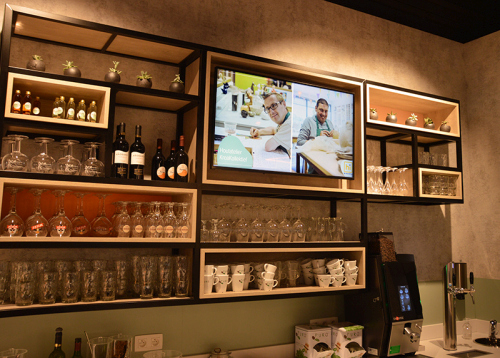

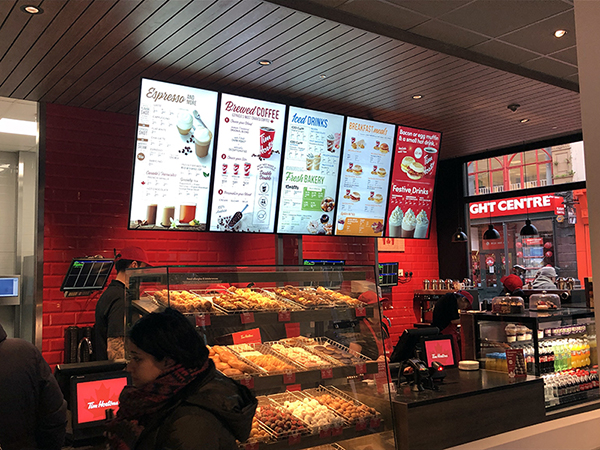

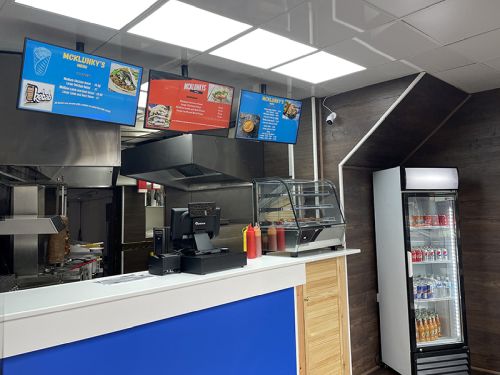

Application Examples
