High Bright Double Sided
Ultra High Brightness Hanging Double Sided Displays

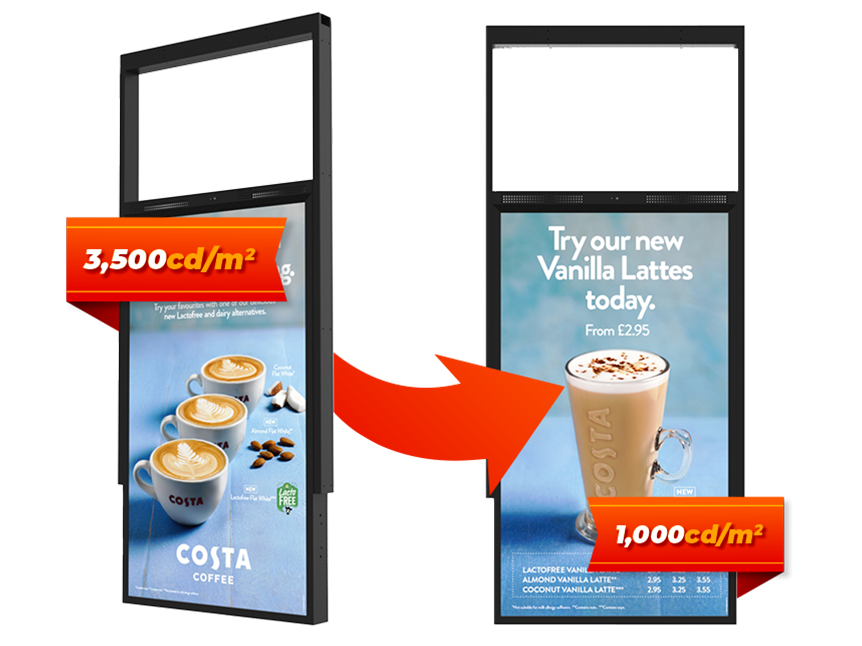

Dual-sided Digital Signage Window Displays 3,500cd/m² Outward-Facing 1,000cd/m² Inward-Facing
Perfect for Window Displays
With a 3,500cd/m² outward-facing screen to
combat direct sunlight and a 1,000cd/m² inward
facing screen to combat brightly-lit indoor spaces,
these dual-sided displays are designed for
shopfront windows. On top of this, they are also
ultra resistant to blackening defect up to 110°C.
Different Content on Each Side
When using our user-friendly online CMS software,
you can really capitalise on the duality of these
displays by broadcasting different content on each
side. Tailor your messaging to people inside and
outside the building for maximum effectiveness.
Smart Temperature Control
The responsive internal airflow system keeps the
panel and other internal components at optimum
working temperature. This ensures a long and
reliable life for your screen, even when used
continuously in outward-facing windows.
- Lightweight Slim Enclosure
- Integrated Android Media Player
- Ultra Resistant to Blackening
- Accessible Ports
- Freestanding Option Available
Product Specification
Specification
Part Number
CDS-490-DS-HB
CDS-550-DS-HB
Diagonal
49″
55″
Resolution
1920×1080
1920×1080
Display Area
1073.8×604
1209.6×680.4
cd/m²
3500/1000
3500/1000
Overall Size
1599.9x708x80
1804x786x80
Weight
28.4kg
48kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Blackening Defect Free
Up to 110°C (230°F)
AV Inputs
Video
HDMI
Audio
Audio Socket (3.5mm)
Speaker Type
8W, 8Ω (x2)
Environmental
Operating temp
0°C to 40°C
Surface Panel Temperature
110°C
Storage temp
-20°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 95%
Computer / media player
Media Formats
Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)
Media resolution
1920×1080/1080×1920
CPU
Quad-Core ARM Cortex
A17, 1.6GHz
GPU
Quad-Core ARM Mali
T764
RAM
DDR3 2GB
Internal storage
8GB eMMC
USB
1 x USB (OTG/HOST), 4 x
USB (HOST)
LAN
100M/1000M Ethernet
(Network Version Only)
Wi-Fi
802.11b/g/n/ac
(Network Version
Only)
OS
Android 7.1
Graphic engine
OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1
NOTE - To achieve different content on each side, the network upgrade with CMS is required

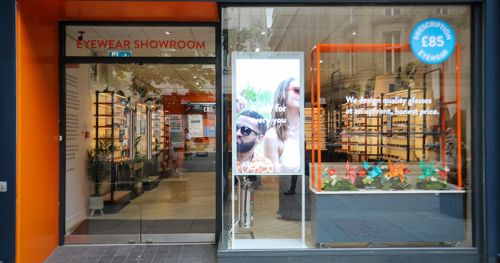

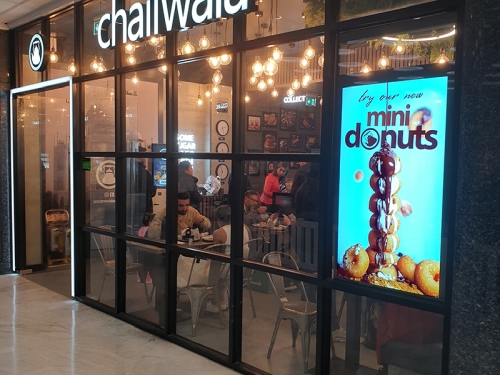

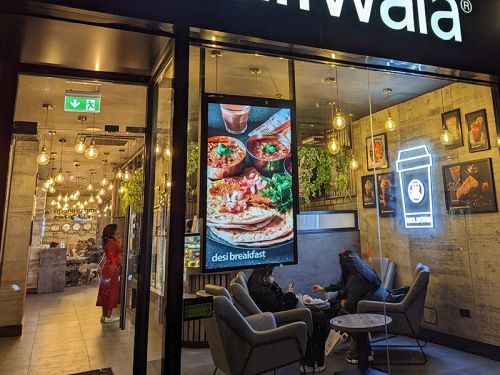

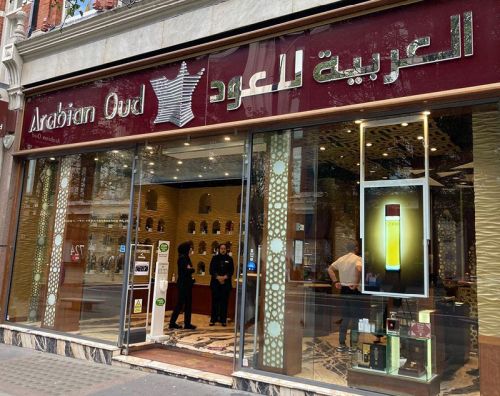

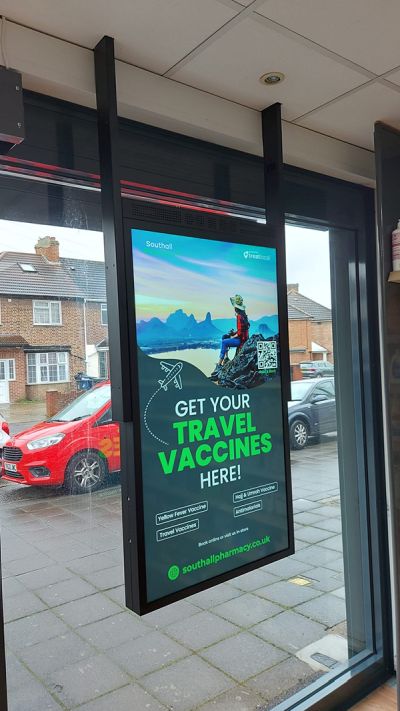

Application Examples
