High Vibrance
Digital Signage With Impact
Perfect for brightly-lit retail environments or as a budget friendly window display
700cd/m² Brightness
 Designed for brightly lit spaces such as retail stores and shopping centres. Almost three times the brightness level of a standard domestic screen or monitor, making your content really stand out from the crowd.
Resistant to Blackening
 LCD panels exposed to direct sunlight suffer from temporary blackening defect. These displays use a special high brightness panel that can withstand surface temperatures up to 110°C with no blackening defect occurring.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos on a USB stick, insert in the display, wait for your content to copy over and then remove. Your images and videos will now play in a
continuous loop.
- Sleek Thin Bezel
- Integrated Android Media Player
- IPS Panel
- Optional Network Upgrade
- Designed for Public areas
- Narrow Bezel
- Power Timer
- Scrolling Text
- Multiple Inputs
Product Specification
Specification
Part Number
CDS-430-HV-X
CDS-550-HV-X
Diagonal
43″
55″
Resolution
1920×1080
1920×1080
Display Area
941.2×529.4
1209.6×680.4
cd/m²
700
700
Overall Size
963.6×557.9×48.1
 1232×708.9×49.9
Weight
11.7kg
15.2kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
AV Inputs
Video
HDMI, VGA
Audio
Audio Socket (3.5mm)
Speaker Type
2W, 5Ω (x2)
Environmental
Operating temp
 0°C to 40°C
Storage temp
-30°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 95%
Computer / media player
Media Formats
Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)
Media resolution
 1920×1080/1080×1920
CPU
Quad-Core ARM Cortex
A17, 1.6GHz
GPU
Quad-Core ARM Mali
T764
RAM
DDR3 2GB
Internal storage
8GB eMMC
USB
 1 x USB (OTG/HOST), 1 x
USB (HOST)
LAN
100M/1000M Ethernet
(Network Version Only)
Wi-Fi
 802.11b/g/n/ac
(Network Version
Only)
Bluetooth
Bluetooth 4.0
OS
Android 7.1
Graphic engine
 OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1

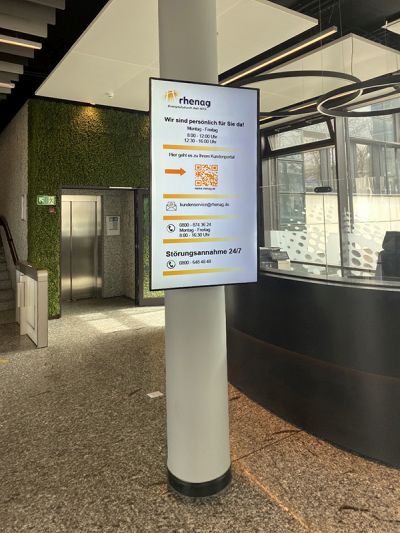

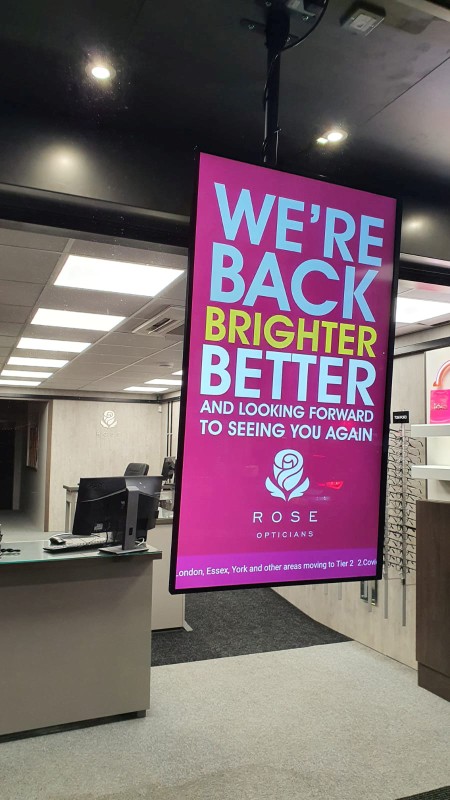

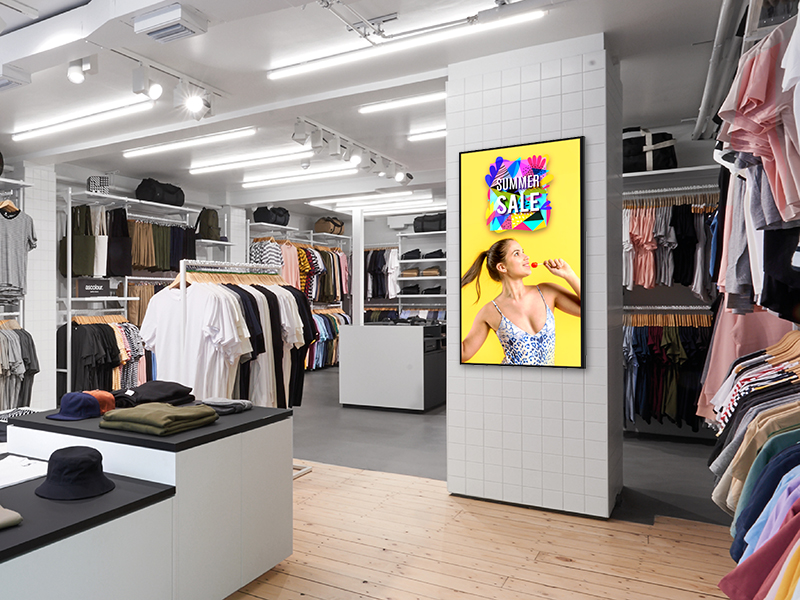

Application Examples
