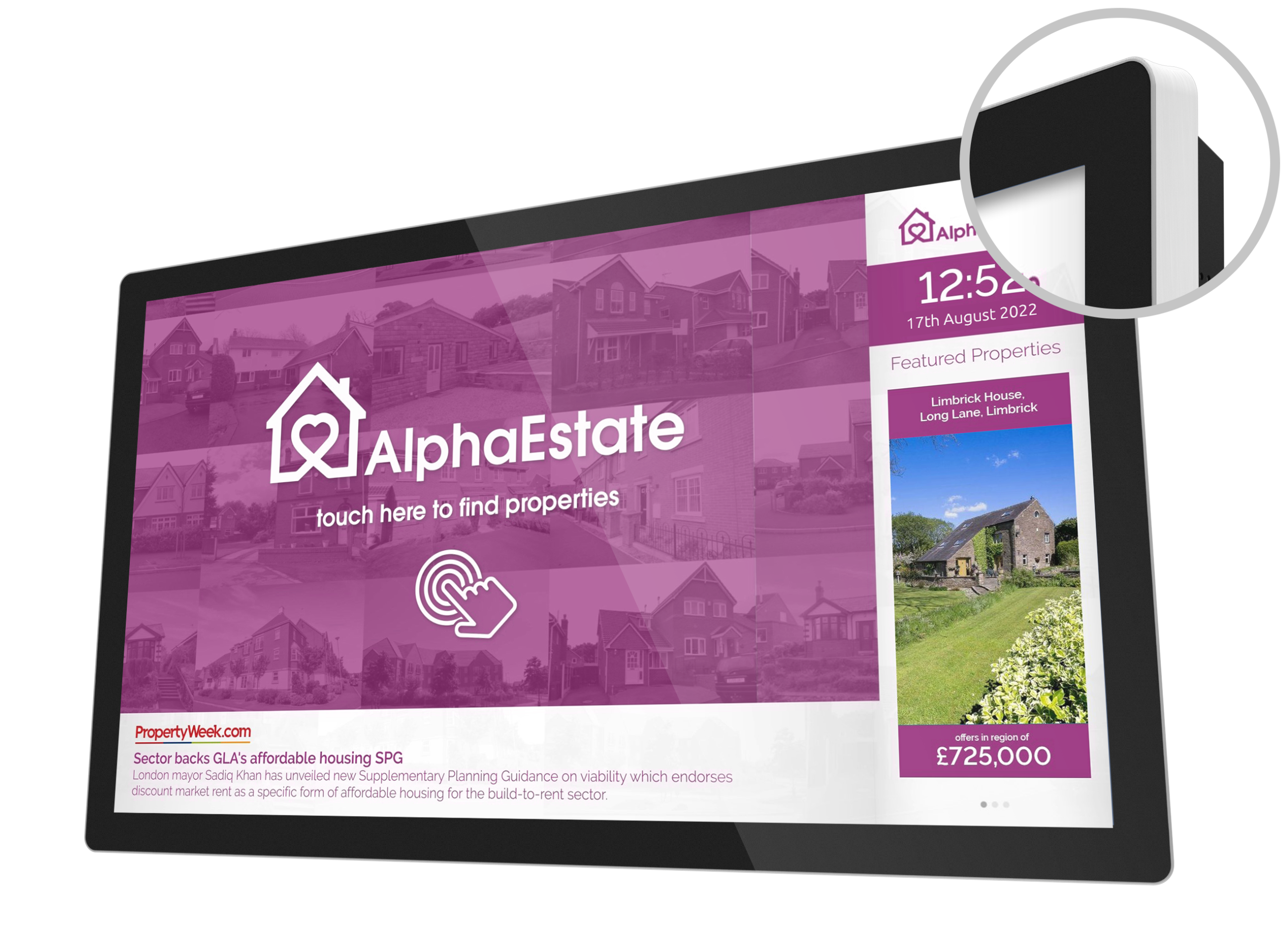

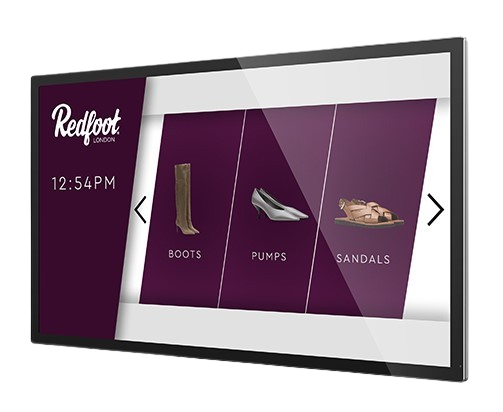

Interactive Touch Screen
Interactive digital signage
Interactive touch solution with open frame and integrated Windows options available; ideal for kiosk integration or wall-mounted applications
10-Point PCAP Touch
Having up to 10 touch points allows users to
perform a variety of touch gestures, including
manipulating images and zooming in/out – much
like you would with a domestic tablet or smart
phone. It also allows multiple users to interact with
the screen at the same time
Open Frame Option
These open frame touch screen monitors are ideal
for system integrators. With an underside mounting
bracket included at no extra cost, this flexible solution can be mounted into any kiosk, table or cabinet in any direction or orientation. The bracket also features micro-adjustment in all three directions to enable flush-fit surface integration. Alternatively, these monitors can be wall or stand mounted thanks to their complete enclosure.
Surface Plasma Treatment
A special oleophobic coating makes the glass front
more resistant to the oily residue left by fingerprints
and improves the smoothness of touch gestures.
Unlike other touch screens on the market, this glass
is not etched, which vastly enhances the optical
clarity.
- Optional Integrated Windows Pc
- Optional Integrated Android Player / CMS
- 24/7 Commercial Use
- 500cd/m² IPS Panel
- Giant Tablet Styling
- Budget Friendly Touch Monitor
- Integrated Speakers
Product Specification
Specification
Part Number
CDS-220-PT-X
CDS-320-PT-X
CDS-430-PT-X
CDS-500-PT-X
CDS-550-PT-X
Diagonal
22″
32″
43″
50″
55″
Resolution
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
Display Area
476.4×267.8
697.4×391.7
940.2×528.1
1094.8×615.4
1208.6×679.9
cd/m²
500
500
500
500
500
Overall Size
526.2×322.8×60.8
747.4×441.7×62.7
990.2×578.9×62.3
1145.9×665.4×63
1262.6×733.9×63
Weight
7.9kg
9.9kg
15.4kg
19.4kg
24.2kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Touch
Touch Technology
Projective capacitive
Touch points
10
Glass hardness
7H min
AV Inputs
Video
HDMI
Environmental
Operating temp
0°C to 40°C
Storage temp
-20°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 95%

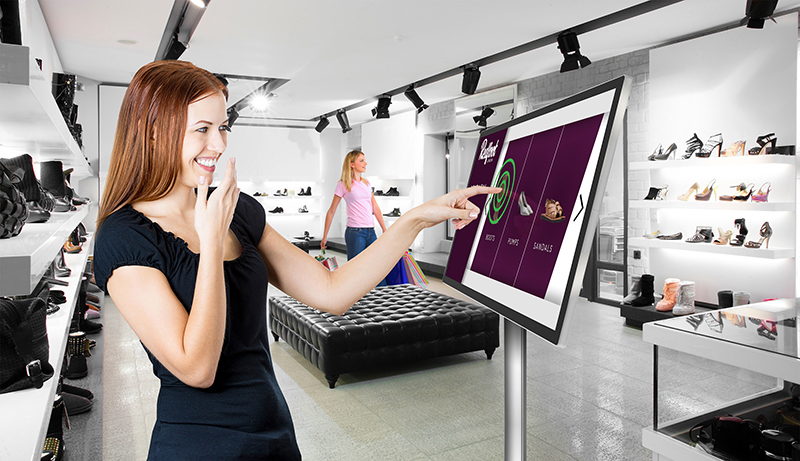

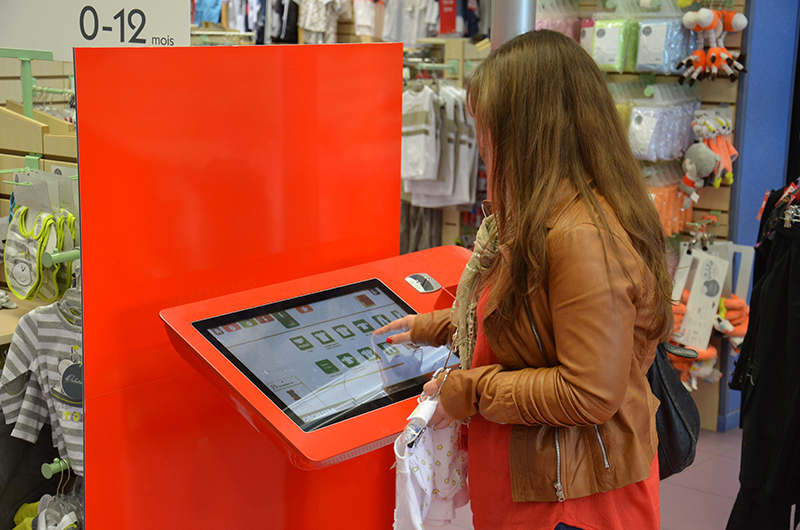

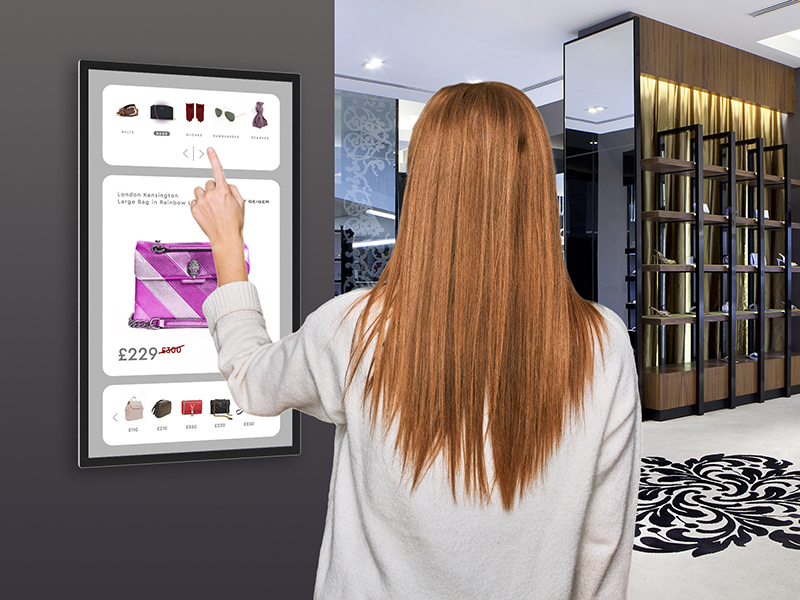

Application Examples
