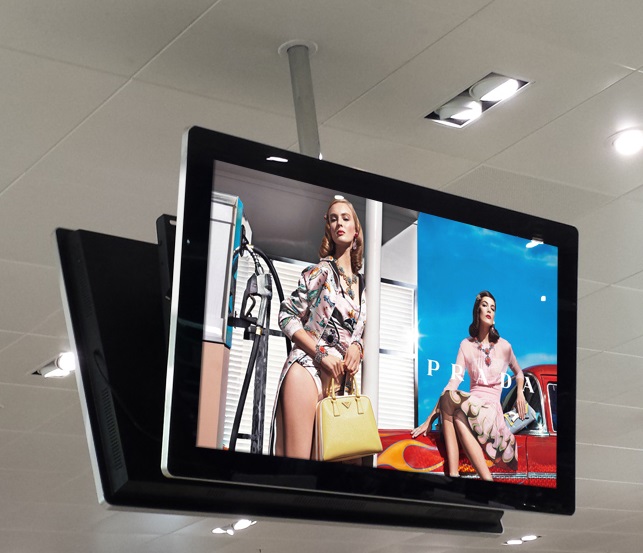

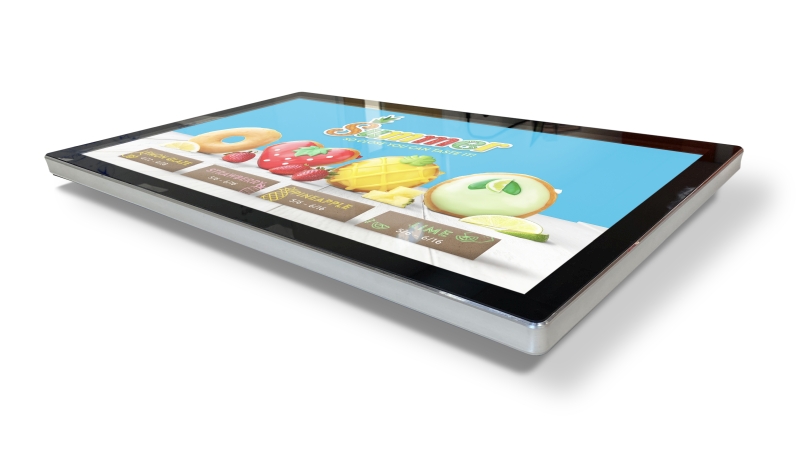

Slimline Pro
Premium quality digital signage
Stunning displays that combine tablet-like aesthetics with a robust mild steel enclosure and tempered glass face
Tabletesque design
With rounded corner, printed border protection glass, and a smooth aesthetic bezel, our premium range gives the giant tablet look an feel. The ultimate in aesthetic design.
Toughened safety glass
Although the tempered glass face is incredibly tough, in the unlikely event of a breakage the specialised safety glass will shatter into small chunks rather than shards. Not only does this prevent injury, it also protects the LCD panel from damage.
Simple to update
 The screens allows for two methods of update; simple USB update where the media files are uploaded and will play in a looping fashion, or using our free playlist creation software which allows for simple scheduling
- Lightweight Design
- Slender Frame
- Aluminium Surround
- 24/7 Commercial Grade
- Free Flush-fit Wall Mount
- Multiple AV Inputs
- Integrated Android Media Player
- Cloud CMS Option
- Free Playlist Software
Product Specification
Specification
Part Number
CDS-190-PM-X
 CDS-220-PM-X
 CDS-230-PM-X
 CDS-430-PM-X
CDS-500-PM-X
CDS-550-PM-X
Diagonal
 19″
22″
23″
43″
50″
55″
Resolution
1366×768
1920×1080
1920×1080
1920×1080
1920×1080
1920×1080
Display Area
408.6×299.6
475×266.4
 697.4×391.9
 941.2×529.4
1072.8×603
1209.6×680.4
cd/m²
350
 450
 450
 450
 450
 450
Overall Size
501x322x38
529.6x321x42.3
757.8×452.3×49.3
997.6×585.8×50.6
1135.2×665.4×63.2
1275×745.8×54.8
Weight
6.3Kg
6.1Kg
11.15Kg
16.75Kg
28.05Kg
30.2Kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Contrast Ratio
5000:1
AV Inputs
Video
HDMI, VGA
Audio
Audio Socket (3.5mm)
Environmental
Operating temp
 0°C to 50°C
Storage temp
-30°C to 60°C
Operating Humidity
10% to 80%
Storage Humidity
5% to 90%
Computer / media player
Media Formats
Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)
Media resolution
1920×1080/1080×1920
CPU
Quad-Core ARM Cortex
A17, 1.6GHz
GPU
Quad-Core ARM Mali
T764
RAM
DDR3 2GB
Internal storage
 8GB eMMC
USB
1 x USB (OTG/HOST), 1 x
USB (HOST)
LAN
 100M/1000M Ethernet
(Network Version Only)
Wi-Fi
 802.11b/g/n/ac
(Network Version
Only)
Bluetooth
 Bluetooth 4.0
OS
Android 7.1
Graphic engine
OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1

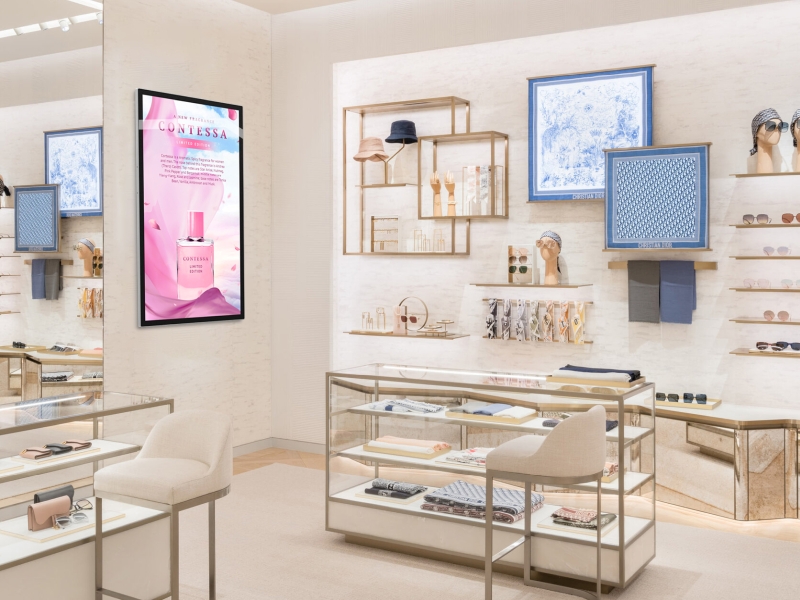

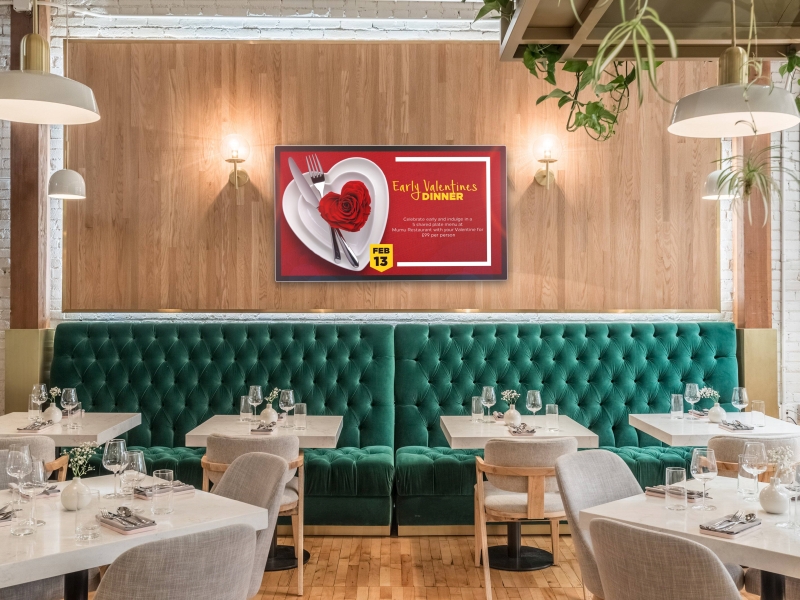

Application Examples
