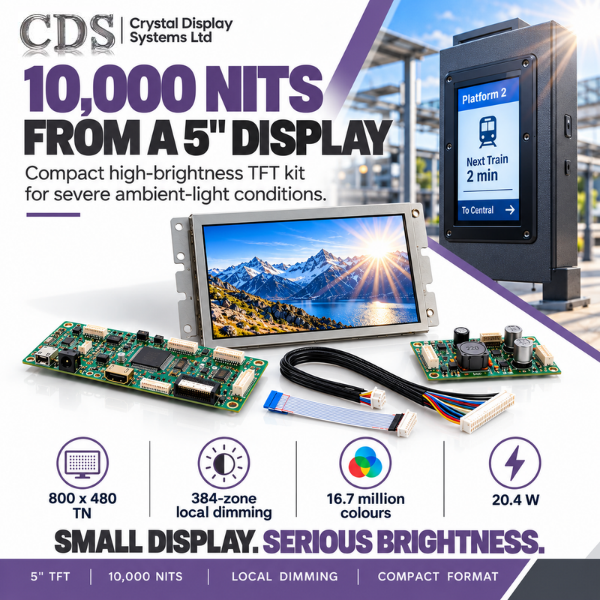

Introducing Our 5” Mini LED TFT Display – Ultra-High Brightness and Exceptional Contrast Experience outstanding visibility with 10,000 nits of brightness
Crystal Display Systems (CDS) is pleased to introduce a high-performance 5” TFT LCD display solution incorporating advanced Local Dimming Mini LED technology. Designed for applications where exceptional brightness, sunlight readability and high contrast are essential, this compact display delivers impressive visual performance in even the most demanding lighting conditions.
With an ultra-high brightness rating of 10,000 nits, this display is ideally suited to outdoor equipment, industrial applications, transportation systems and other environments where standard TFT displays may struggle to deliver clear, readable images.
Advanced Mini LED technology with 384 local dimming zones
At the heart of this display is its advanced Mini LED backlighting system, featuring 384 individually controlled local dimming zones.
By dynamically adjusting the backlight across these zones, the display can deliver enhanced contrast, deeper blacks and improved image definition. This provides near-black levels alongside bright highlights, creating a more vibrant and detailed image.
The panel also utilises TN display technology to help minimise blooming and halo effects, improving overall image clarity and contrast performance.
Designed for demanding environments
Combining exceptional brightness with a compact form factor, this 5” display is designed for applications requiring reliable visibility in challenging environments.
Key features include:
- 10,000 nits ultra-high brightness – excellent sunlight readability.
- 384 local dimming zones – dynamic backlight control for enhanced contrast.
- High contrast performance – improved black levels and image definition.
- 16.7 million colours – vibrant and detailed colour reproduction.
- 800 x 480 resolution – clear WVGA image quality.
- 140° horizontal / 130° vertical viewing angles – wide viewing performance.
- 6 o’clock viewing direction – specified for the intended installation orientation.
- HDMI interface – straightforward integration using an industry-standard connection.
- Integrated cooling fan – supports thermal management during operation.
The display operates from a 12V DC supply, with power delivered through a standard barrel jack connector.
Technical Specifications
| Specification | Details |
|---|---|
| Display Size | 5.0″ |
| Display Technology | TN TFT LCD |
| Backlight Technology | Mini LED with Local Dimming |
| Brightness | 10,000 cd/m² (nits) |
| Local Dimming Zones | 384 |
| Resolution | 800 × 480 |
| Colours | 16.7 Million |
| Viewing Angle | 140° (H) / 130° (V) |
| Viewing Direction | 6 o’clock |
| Interface | HDMI |
| Input Voltage | 12V DC |
| Input Current | 3A |
| Power Consumption | 20.4W |
| Display Area | 108 (H) × 64.8 (V) mm |
| Overall Dimensions | 121.9 (H) × 79.6 (V) × 29.11 (D) mm |
| Cooling | Integrated Cooling Fan |
Small Display. Serious Brightness.
Looking for a high-brightness display solution?
Whether you are developing outdoor instrumentation, industrial control equipment, specialist monitoring systems or another application requiring exceptional display performance, this 5” Mini LED TFT offers an impressive combination of brightness, contrast and compact dimensions.
At Crystal Display Systems, we specialise in supplying standard and customised display solutions across a broad range of technologies and formats. Our team can help identify the right display technology for your application, providing technical support and assistance throughout the development process.
Interested in finding out more about our 5” 10,000-nit Mini LED TFT display?
Contact the CDS team to discuss your project requirements, request further technical information or enquire about sample availability.
