5.7-Inch VGA IPS TFT Display: A Proven Standard for Modern Industrial Designs
No matter the application, we have the 5.7" solution for you
Rugged and reliable displays are essential in industrial systems where performance, visibility and uptime are critical.
Whether you are designing equipment for factory automation, process control, medical technology or transportation, your chosen display must deliver excellent image quality while continuing to perform in demanding environments.

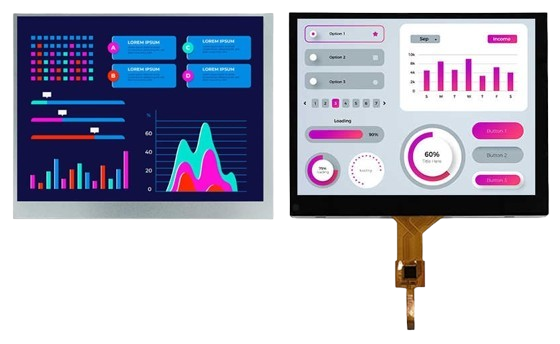

Our 5.7-inch VGA IPS TFT display combines a proven industrial form factor with modern display technology. As a result, it provides strong optical performance, robust reliability and the long-term availability required for professional applications.

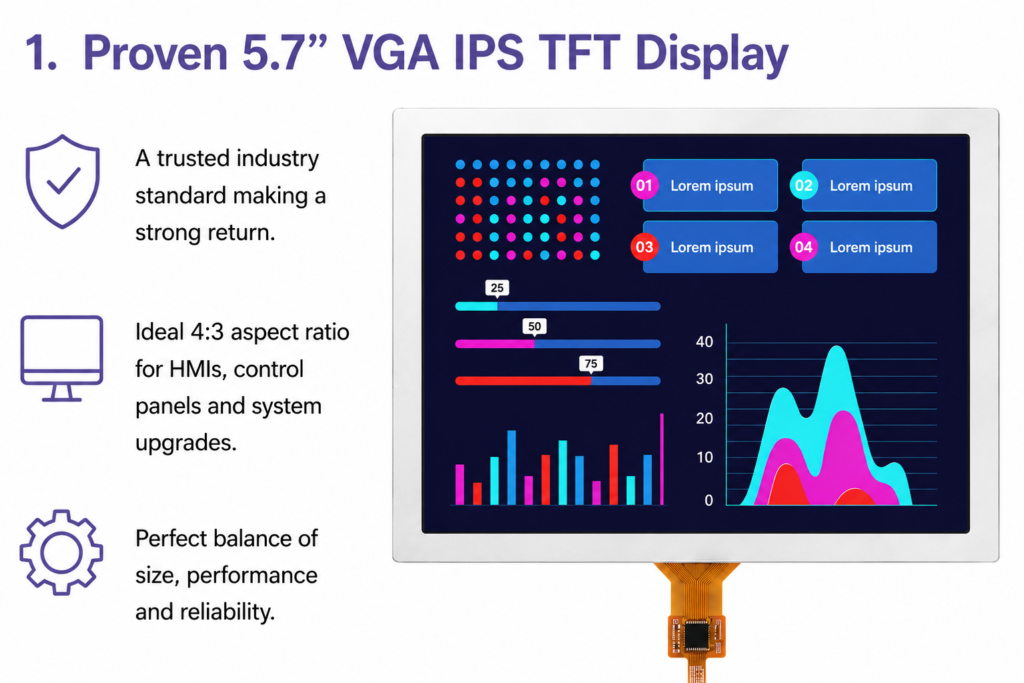

Why the 5.7-Inch TFT Display Remains an Industry Standard
From the late 1980s through the 1990s and into the 2000s, the 5.7-inch TFT display became a widely adopted format across industrial electronics.
Today, this practical display size is making a strong return. Engineers continue to value its balanced dimensions, familiar VGA resolution and compatibility with both legacy and newly developed systems.
Unlike many modern widescreen displays, its traditional 4:3 aspect ratio provides a generous vertical viewing area. This makes it particularly suitable for industrial human-machine interfaces, control panels, monitoring systems and equipment upgrades where screen height is just as important as width.

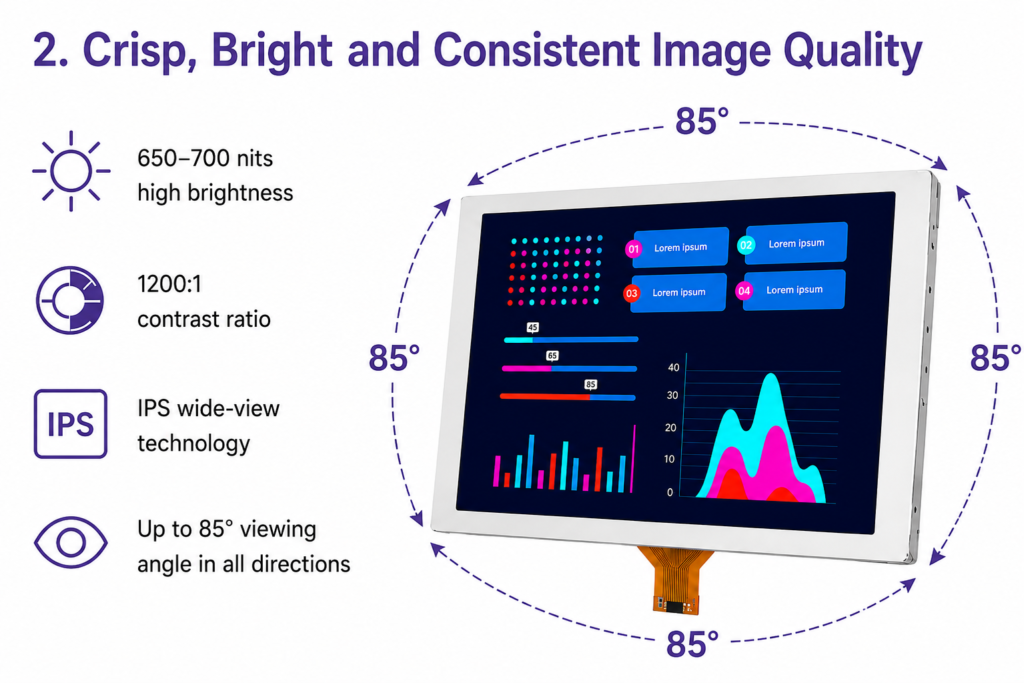

Bright, Crisp and Consistent Image Quality
The display features a 640 × 480 VGA resolution, providing a clear and practical canvas for control interfaces, system information, graphics and operational data.
With a brightness level of approximately 650–700 nits, content remains clear and readable in brightly lit working environments. In addition, its 1200:1 contrast ratio helps produce defined text, vivid colours and strong image detail.
The use of IPS wide-view technology also improves image consistency. Viewing angles of up to 85 degrees in every direction allow operators to see the screen clearly from different positions and installation angles.
This is especially valuable in shared workspaces, mobile equipment and control systems where users may not always view the display directly from the front.
Designed for Long-Term Industrial Reliability
Industrial equipment often needs to operate continuously and remain in service for many years. Therefore, display reliability is a key consideration during the design process.
The 5.7-inch VGA IPS TFT display features a rated LED backlight lifetime of 50,000 hours, supporting long operating periods while reducing the need for maintenance or replacement.
It also operates across a wide temperature range of -30°C to +80°C. Consequently, it is suitable for equipment exposed to challenging environmental conditions, including cold storage, outdoor installations, transport systems and industrial production environments.

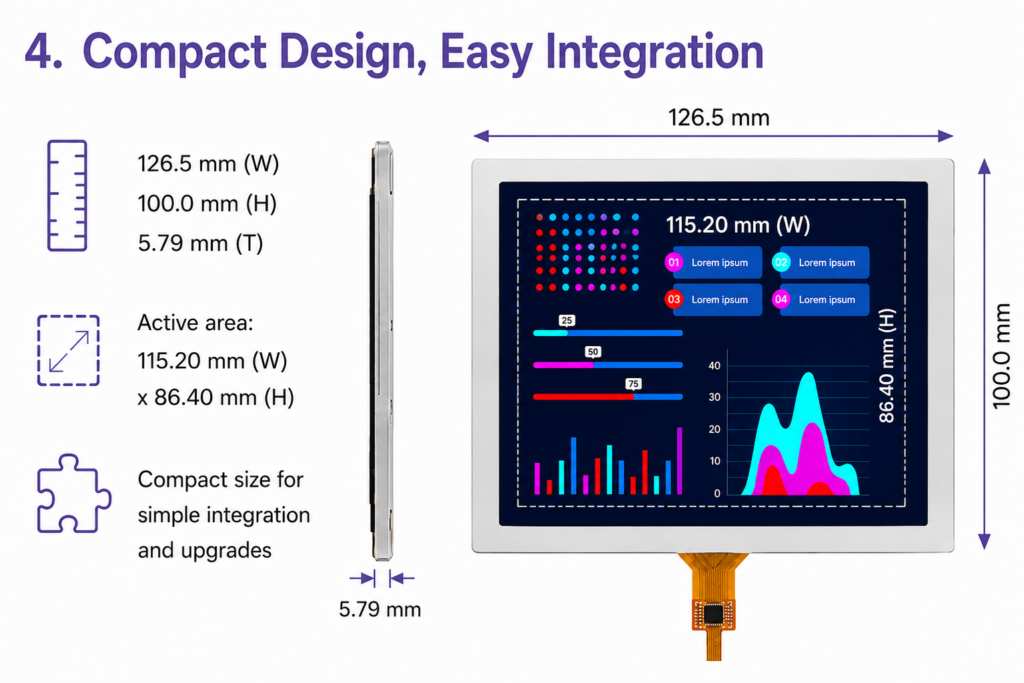

Compact Dimensions for Easy Integration
The module has compact mechanical dimensions of:
- 126.5 mm wide
- 100.0 mm high
- 5.79 mm thick
Despite its compact size, it provides an active display area of 115.20 mm × 86.40 mm.
This combination allows engineers to create clear, information-rich interfaces without requiring excessive panel space. Furthermore, the familiar mechanical format can simplify upgrades to existing systems that already use a 5.7-inch display.

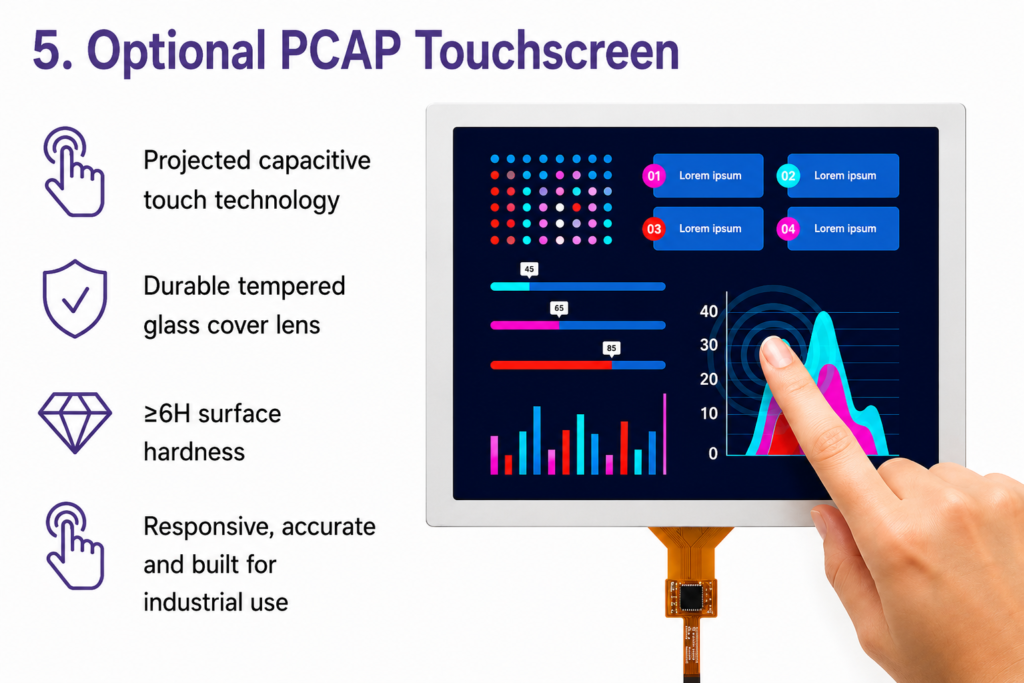

Optional PCAP Touchscreen Technology
For applications requiring modern touch control, the display is available with an optional projected capacitive touchscreen, also known as PCAP.
The touchscreen can include a durable tempered-glass cover lens with a surface-hardness rating of at least 6H. This provides additional protection against everyday wear, scratches and repeated user interaction.
PCAP technology also supports responsive and intuitive control, making it ideal for industrial HMIs, medical equipment, test systems and embedded control panels.

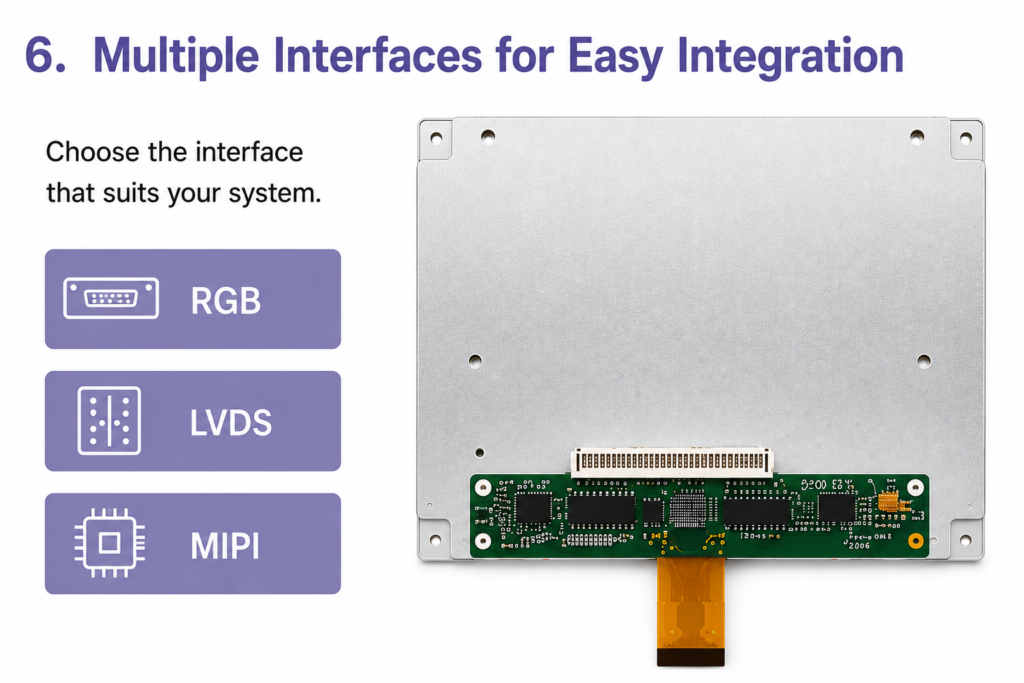

Multiple Interfaces for Embedded System Integration
Every embedded system has different connectivity requirements. For this reason, the 5.7-inch TFT display is available with several interface options, including:
- RGB
- LVDS
- MIPI
These options support integration with a wide range of processors, embedded boards and system architectures.
Choosing the appropriate display interface can reduce design complexity, shorten development time and help engineers achieve a more efficient route from prototype to production.
Applications for the 5.7-Inch VGA IPS TFT Display
The combination of VGA resolution, high brightness, wide viewing angles and industrial reliability makes this display suitable for many professional applications.
Typical uses include:
- Industrial automation and machinery
- Human-machine interfaces
- Process-control equipment
- Medical and laboratory devices
- Transportation systems
- Aerospace equipment
- Test and measurement instruments
- Access-control systems
- Building-management systems
- Legacy equipment upgrades
The continued popularity of the 5.7-inch format is not simply driven by familiarity. Instead, it reflects the practical performance, mechanical stability and integration flexibility that the display provides.

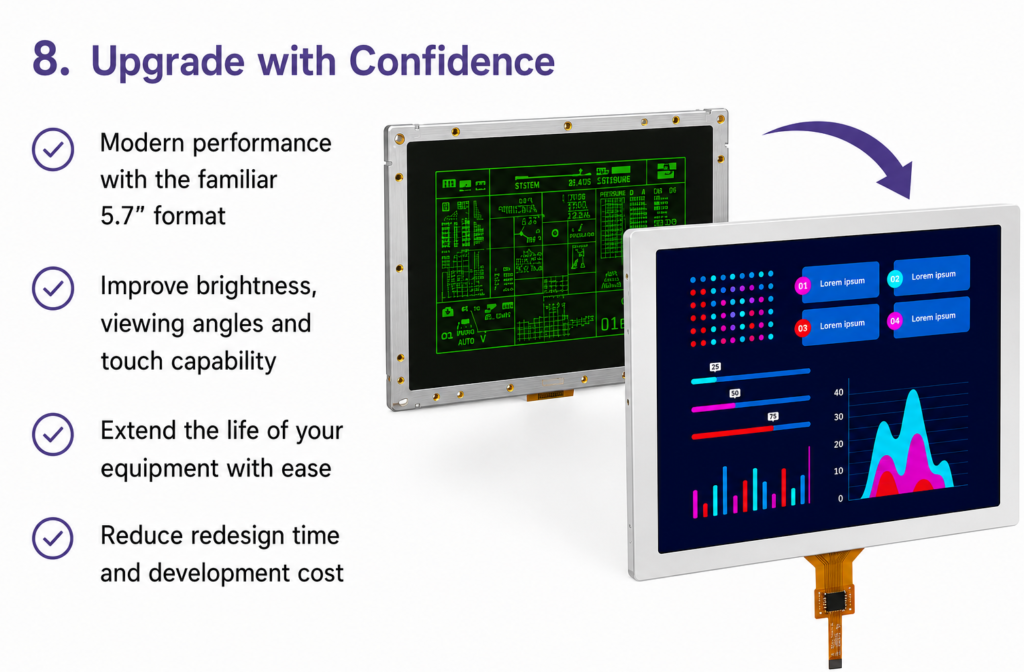

A Reliable Choice for Legacy System Upgrades
Replacing a display in an established product can be challenging. Mechanical changes, software updates and interface compatibility can all increase development costs.
A modern 5.7-inch VGA TFT display can provide a practical route for upgrading older systems while retaining a familiar resolution and aspect ratio.
Depending on the application, engineers may be able to improve brightness, viewing angles, temperature performance and touchscreen functionality without completely redesigning the surrounding equipment.
This can help extend the operating life of an established product while improving its usability and visual performance.
More Display Technologies for Your Next Project
In addition to 5.7-inch TFT displays, Crystal Display Systems offers a comprehensive range of display technologies for industrial, medical, commercial and embedded applications.
TFT Displays
Our TFT display range includes established industry-standard sizes alongside specialist formats such as square, circular, bar-type and custom displays.
Smart Displays
Smart displays combine the screen, control electronics and software functionality into a more integrated solution. UART-based options can simplify development and help reduce time to market.
AMOLED and PMOLED Displays
AMOLED and PMOLED technologies offer strong contrast, vibrant colours and efficient performance for applications requiring a premium visual experience.
Monochrome STN LCD Displays
Monochrome STN LCDs remain a proven and cost-effective option for applications that require dependable operation, straightforward information display and long product availability.
Why Choose Crystal Display Systems?
Crystal Display Systems supports projects from early-stage evaluation and prototyping through to full production.
Our customers benefit from:
- A wide selection of standard and specialist display formats
- Low or no minimum order quantities on selected products
- Support for prototypes and low-volume requirements
- Custom display and touchscreen solutions
- Technical guidance from experienced display specialists
- Long-term product availability
- Product-life guarantees of up to ten years on selected display ranges
Rather than simply supplying a panel, we work with customers to identify the display solution that best suits the complete application.
The 5.7-inch VGA IPS TFT display continues to be a strong choice for engineers who require a compact, bright and dependable display with a practical 4:3 aspect ratio.
Its combination of VGA resolution, IPS viewing technology, industrial temperature performance, long backlight life and optional PCAP touch functionality makes it suitable for both new designs and legacy system upgrades.
Contact Crystal Display Systems to discuss your application, request additional technical information or find the right display for your next project.
