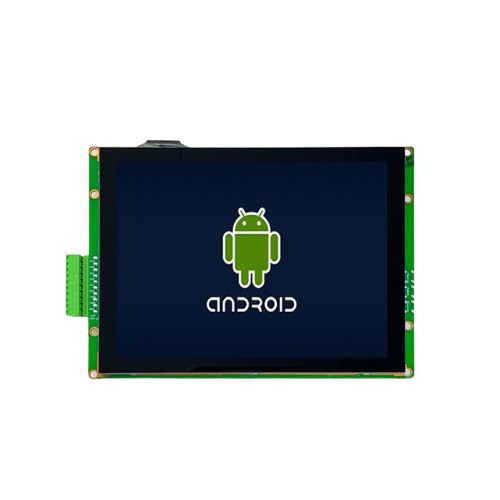

Customise, Connect, Create: CDS Range of Open-Frame Android Tablets
Whatever your industry, the Open-Frame Android Tablet Range will Elevate Your Applications
In today’s rapidly evolving technological landscape, the demand for versatile and efficient digital solutions is at an all-time high. Enter the CDS Range of Open-Frame Android Tablets – a cutting-edge series of devices designed to meet the diverse needs of various industries. Whether you’re in commercial advertising, CNC equipment, or medical services, these tablets offer unparalleled functionality and performance. With three distinct options – commercial, industrial, and Google Play compatible models – CDS provides a comprehensive solution for businesses seeking reliable, adaptable, and innovative technology. Let’s delve into the key features and applications of this remarkable range.
Key Features of the full range:
- 16.7M colours, IPS-TFT-LCD, wide viewing angle, Capacitive touch.
- Compatible with WIFI, Bluetooth, microphone, camera, and other rich peripherals.
- Available for USB and SD card updates.
- Available for downloading Android general apps to realize functions such as Wi-Fi, wired internet, browsing, music and video playback, data copy, etc.
- Available for RS232, RS485 and Ethernet port to connect and communicate with external devices.
Industrial Range:
- Available in 5”, 7”, 8”, and 12.1”.
- Industrial Android intelligent display terminal based on RK3566, running Android 11 operating system.
- Capable for Google Play services available in 7”.
Commercial Grade
- Available in 7”.
- Commercial Android intelligent display terminal based on RK3566, running Android 11 operating system.
Our Full Range of Open-Frame Android Tablets
| Size | Resolution | Brightness | CPU | OS | Motherboard Level | FLASH / RAM | Notes |
|---|---|---|---|---|---|---|---|
| 5.0 inch | 800×480 | 250 nits | RK3566, Cortex-A55, quad-core | Android 11 | Industrial Grade | 8Gbytes EMMC & 2Gbytes LPDDR4 | |
| 7.0 Inch | 1280×800 | 300 nits | RK3566, Cortex-A55, quad-core | Android 11 | Commercial Grade | 8Gbytes EMMC & 2Gbytes DDR4 | Capable for Google Play Services |
| 7.0 Inch | 1280×800 | 300 nits | RK3288, ARM Cortex-A17, Quad-core | Android 8.1 | Industrial Grade | 8Gbytes EMMC5.0 & 2Gbytes DDR3 | |
| 7.0 Inch | 1280×800 | 250 nits | RK3566, Cortex-A55, quad-core | Android 11 | Industrial Grade | 8Gbytes EMMC & 2Gbytes LPDDR4 | Capable for Google Play Services |
| 8.0 Inch | 1024×768 | 250 nits | RK3288, ARM Cortex-A17, Quad-core | Android 8.1 | Industrial Grade | 8Gbytes EMMC5.0 & 2Gbytes DDR3 | |
| 12.1 Inch | 1024×768 | 350 nits | RK3288, ARM Cortex-A17, Quad-core | Android 8.1 | Industrial Grade | 8Gbytes EMMC5.0 & 2Gbytes DDR3 |
In conclusion, the CDS Range of Open-Frame Android Tablets stands as a testament to innovation and adaptability in the digital age. With a myriad of features including vibrant IPS-TFT-LCD displays, seamless connectivity options, and robust compatibility with a range of peripherals, these tablets are poised to revolutionize various industries. Whether you’re looking for a commercial-grade solution for advertising displays or an industrial-grade terminal for CNC equipment, CDS has you covered. Embrace the future of technology with CDS, and unlock a world of possibilities for your business.
