Double Sided Window

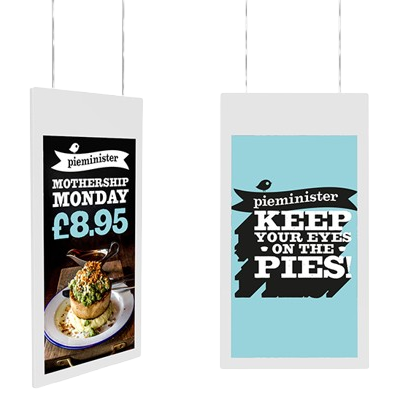

Hanging Double-sided Window Displays
High vibrance Super-Slim Dual Sided Display for Windows with Integrated Ceiling Mounting Solution
Double Sided Window Display
Grab the attention of onlookers with the outward facing, sunlight readable screen. Once your customers are inside the building you can then use the inward facing display to reinforce your message further.
Plug and Play
The Double Sided Hanging Displays come with a built in HD Android media player, allowing you to update them using a USB memory stick. Load your pictures and videos onto a USB memory stick then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop
700cd/m² brightness
Brightness is paramount when using outward facing screens, these displays use commercial grade high brightness panels (700cd/m²); more than twice the brightness of a standard home TV to allow easy readability in window displays.
- Optional Network Upgrade
- Ultra Resistant to Blackening
- Integrated Ceiling Mount
- Super Slim Design
- Commercial Grade Panel and Components
- Integrated Speakers
Product Specification
Specification
Part Number
 CDS-430-DS
 CDS-550-DS
Diagonal
43″
55″
Resolution
1920×1080
1920×1080
Display Area
 943.2×531.4
1209.6×680.4
cd/m²
700/700
700/700
Overall Size
1178.3×634.6×21.6
1479.4×817.2×21.6
Weight
16.9kg
26.6kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Blackening Defect Free
Up to 110°C (230°F)
AV Inputs
Video
HDMI, VGA, BNC
Audio
Audio Socket (3.5mm)
Speaker Type
5W, 8Ω (x2)
Environmental
Operating temp
 0°C to 40°C
Storage temp
-20°C to 60°C
Operating Humidity
10% to 90%
Storage Humidity
0% to 95%
Computer / media player
Media Formats
 Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)
Media resolution
 1920×1080/1080×1920
CPU
Quad-Core ARM Cortex
A17, 1.6GHz
GPU
Quad-Core ARM Mali
T760 MP4 @600Mhz
RAM
 DDR3 2GB
Internal storage
8GB NAND
USB
USB2.0 HOST (x2)
LAN
100M/1000M Ethernet
(Network Version Only)
Wi-Fi
 802.11b/g/n
(Network Version
Only
OS
Android 5.1.1
Graphic engine
OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1
NOTE - To achieve different content on each side, the network upgrade with CMS is required

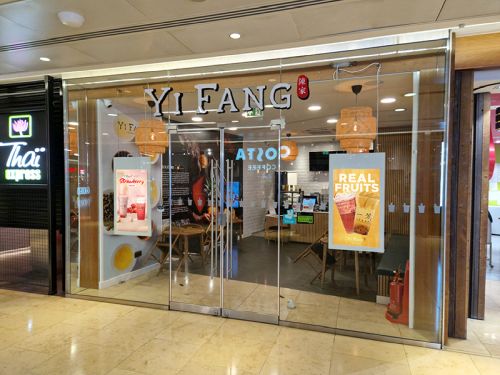

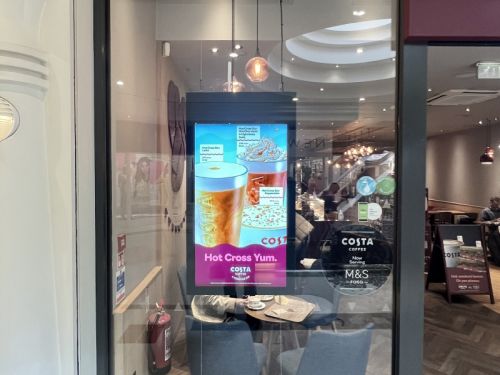

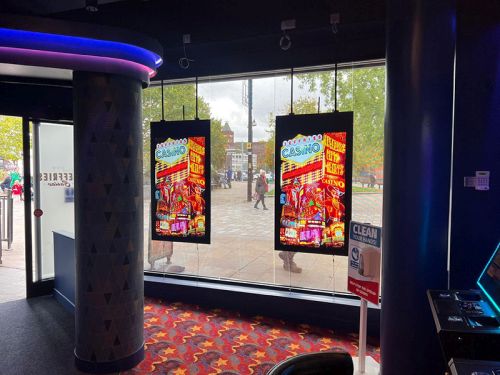

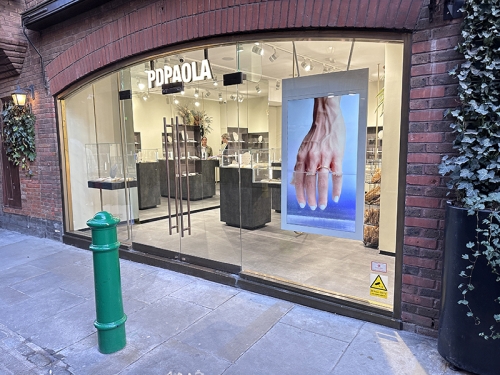

Application Examples
