Ultra High Bright
In-window digital signage
Designed for outward-facing window displays in direct sunlight
3,500cd/m² Direct Sunlight Readable
Designed for shopfront windows, these displays feature commercial grade ultra-high brightness panels (3,500cd/m²) that are up to 10 times brighter than domestic televisions. This ensures that content really stands out, even the brightest direct sunlight.
Ultra Resistant to Blackening Defect (up to 110°C)
Thanks to their special ultra-high brightness panels, these displays can withstand surface temperatures up to 110°C without suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.
Ambient Light Sensor
These displays include an external ambient light sensor for use when required. This ensures the screen is always operating at the most suitable brightness for its environment. The external nature of this sensor also enables seamless kiosk integration.
- Sleek Thin Bezel
- Stylish Lightweight Enclosure
- Ambient Light Sensor
- viewable Through Polarised Lenses
- Integrated Android Media Player
- Smart Temperature Control System
- 24/7 Commercial Grade
Product Specification
Specification
Part Number
CDS-430-UHB-X
CDS-490-UHB-X
CDS-550-UHB-X
 CDS-650-UHB-X
CDS-750-UHB-X
Diagonal
 43″
49″
55″
65″
75″
Resolution
1920×1080
1920×1080
1920×1080
3840×2160
3840×2160
Display Area
946.3×534.8
1073.8×604
1209.6×680.4
1428.5×803.5
1649.7×927.9
cd/m²
3500
3500
3500
3500
3500
Overall Size
966.3×554.8×94.8
1097.2×627.4×85.3
1234.6×705.4×94.6
1468.6×843.6×85
1689.7x968x85
Weight
18.6kg
23.6kg
28.6kg
37.7Kg
48.5kg
Panel
Aspect Ratio
16:9
Colour
16.7M
Viewing Angle
178°
Blackening defect free
Up to 110°C (230°F)
AV Inputs
Video
HDMI, VGA
Audio
Audio Socket (3.5mm)
Speaker Type
2W, 5Ω (x2)
Environmental
Surface panel temp
110°C
Storage Humidity
5% to 95%
Operating temp
0°C to 50°C
Storage temp
-30°C to 60°C
Operating Humidity
10% to 80%
Computer / media player
Media Formats
Video (MPG, AVI, MP4,
RM, RMVB, TS), Audio
(MP3, WMA), Image
(JPG, GIF, BMP, PNG)
Media resolution
1920×1080/1080×1920
CPU
Quad-Core ARM Cortex
A17, 1.6GHz
GPU
Quad-Core ARM Mali
T764
RAM
DDR3 2GB
Internal storage
8GB eMMC
USB
 1 x USB (OTG/HOST), 1 x
USB (HOST)
LAN
100M/1000M Ethernet
(Network Version Only)
Wi-Fi
802.11b/g/n/ac
(Network Version
Only)
Bluetooth
Bluetooth 4.0
OS
Android 7.1
Graphic engine
OpenGL ES 1.1/2.0/3.0/3.1,
OpenCL 1.1, Renderscript,
Direct3D 11.1

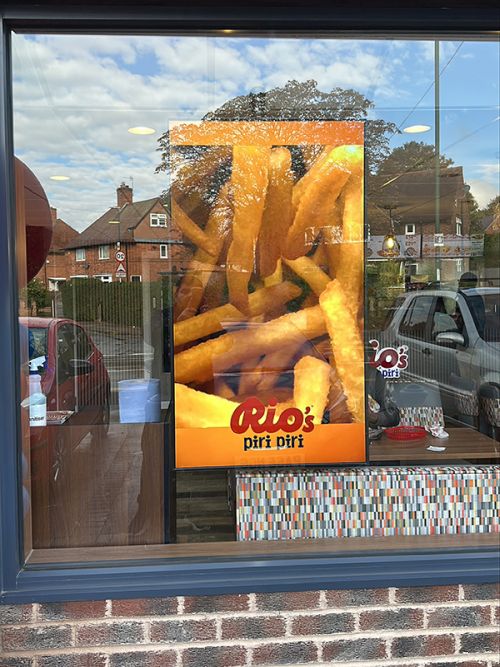

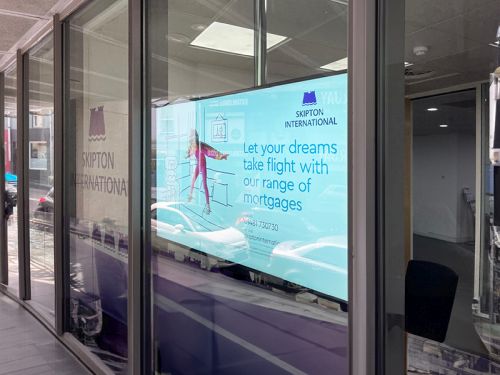

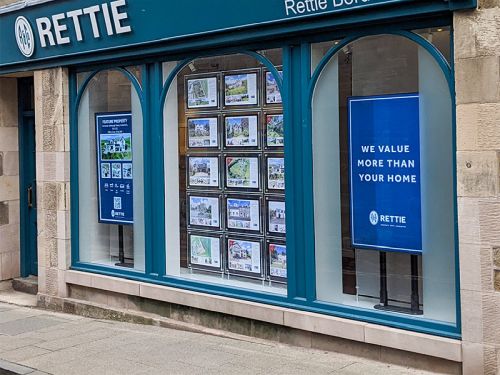

Application Examples
