CDS Embedded Systems – Fan-less Embedded Box PC | Box PC | Embedded Box PC | Embedded PC

Taicenn PC TBOX-4000_A2CDS Taicenn 1XX0_3CDS TBOX-36X0_1CDS TBOX-2XX2_NEW

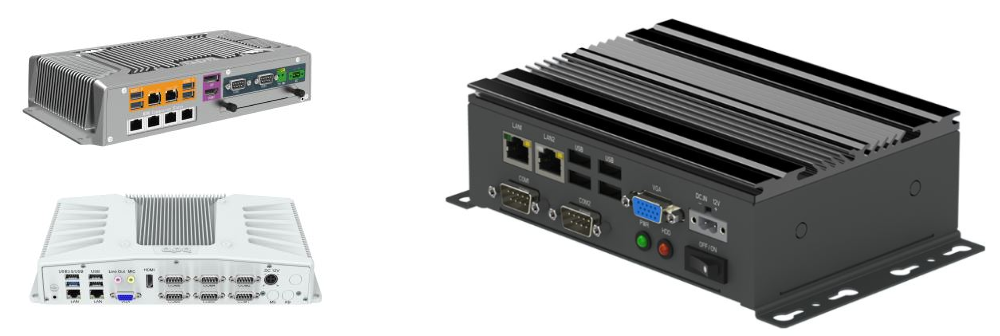

CDS have a wide array of boxed embedded SBC solutions designed for use in professional applications. They are compact and cost effective and designed for 24/7 operation in harsh environments. The CDS TBOX series are specially designed, according to actual industrial, embedded & automation applications. Rugged & compact design, industrial operating -20~+60C temperature range (optional wider operating temperature upgrade -40~+70C).

Range as below;

ModelDescription CPUDimensionsOperating Temp
TBOX-1410Extra compact Intel Processors fan-less Embedded BOX PC: 1x mSATA SSD/HDD; 2x GLAN; No serial COM; 4x USB port; 1x HDMI; AUDIOApollo lake J3455168.4 x 106.2 x 45 (mm)-20~+70C
TBOX-1610Extra compact Intel Processors fan-less Embedded BOX PC: 1x mSATA SSD/HDD; 2x GLAN; No serial COM; 4x USB port; 1x HDMI; AUDIOSkyalek i3-6100U168.4 x 106.2 x 45 (mm)-20~+70C
TBOX-1620Extra compact Intel Processors fan-less Embedded BOX PC: 1x mSATA SSD/HDD; 2x GLAN; No serial COM; 4x USB port; 1x HDMI; AUDIOSkylake i5-6200U168.4 x 106.2 x 45 (mm)-20~+70C
TBOX-1630Extra compact Intel Processors fan-less Embedded BOX PC: 1x mSATA SSD/HDD; 2x GLAN; No serial COM; 4x USB port; 1x HDMI; AUDIOSkylake i7-6500U168.4 x 106.2 x 45 (mm)-20~+70C
TBOX-2310Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOBaytrail J1900236.5 x 150 x 60 (mm)-20~+70C
TBOX-2410Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOApollo lake J3455236.5 x 150 x 60 (mm)-20~+70C
TBOX-2420Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOApollo lake J3355236.5 x 150 x 60 (mm)-20~+70C
TBOX-2610Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOSkylake i3-6100U236.5 x 150 x 60 (mm)-20~+70C
TBOX-2620Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOSkylake i5-6200U236.5 x 150 x 60 (mm)-20~+70C
TBOX-2630Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA+ 1x 2.5'' SATA SSD/HDD; 2x GLAN; 6 x USB; 6 x RS232 (Optional with 1x RS485); 1x HDMI + 1x VGA; AUDIOSkylake i7-6500U236.5 x 150 x 60 (mm)-20~+70C
TBOX-2312Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOBaytrail J1900236.5 x 107 x 60 (mm)-20~+70C
TBOX-2412Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOApollo lake J3455236.5 x 107 x 60 (mm)-20~+70C
TBOX-2422Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOApollo lake J3355236.5 x 107 x 60 (mm)-20~+70C
TBOX-2612Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOSkylake i3-6100U236.5 x 107 x 60 (mm)-20~+70C
TBOX-2622Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOSkylake i5-6200U236.5 x 107 x 60 (mm)-20~+70C
TBOX-2632Rugged Intel Processors fan-less industrial BOX PC: 1x mSATA SSD/HDD; 2x GLAN; 4 x USB; 6 x RS232/RS485/RS422 (Self-adaptive); 1x HDMI + 1x VGA; AUDIOSkylake i7-6500U236.5 x 107 x 60 (mm)-20~+70C
TBOX-3600Rugged Intel Skylake Processors fan-less PoE industrial BOX PC: 1x mSATA + 1x 2.5-inch SATA SSD/HDD; 5x GLAN (4x Ports support PoE feature); 6x USB; 1 x RS232 + 1x RS232/RS485; 1x HDMI + 1x VGA; 16x Digital I/O; AUDIOCeleron 3855U236.5 x 150 x 60 (mm)-20~+70C
TBOX-3610Rugged Intel Skylake Processors fan-less PoE industrial BOX PC: 1x mSATA + 1x 2.5-inch SATA SSD/HDD; 5x GLAN (4x Ports support PoE feature); 6x USB; 1 x RS232 + 1x RS232/RS485; 1x HDMI + 1x VGA; 16x Digital I/O; AUDIOSkylake i3-6100U236.5 x 150 x 60 (mm)-20~+70C
TBOX-3620Rugged Intel Skylake Processors fan-less PoE industrial BOX PC: 1x mSATA + 1x 2.5-inch SATA SSD/HDD; 5x GLAN (4x Ports support PoE feature); 6x USB; 1 x RS232 + 1x RS232/RS485; 1x HDMI + 1x VGA; 16x Digital I/O; AUDIOSkylake i5-6200U236.5 x 150 x 60 (mm)-20~+70C
TBOX-3630Rugged Intel Skylake Processors fan-less PoE industrial BOX PC: 1x mSATA + 1x 2.5-inch SATA SSD/HDD; 5x GLAN (4x Ports support PoE feature); 6x USB; 1 x RS232 + 1x RS232/RS485; 1x HDMI + 1x VGA; 16x Digital I/O; AUDIOSkylake i7-6500U236.5 x 150 x 60 (mm)-20~+70C

Using an Boxed PC offers several key advantages:

  • Complete solution – hardware, software, OS and all other required functionality.
  • VGA / DVI outputs to easily drive TFT monitors and controller cards.
  • Very easy to integrate as all components are boxed saving time, space and cost.
  • Can be used to control external devices and offer more functionality
  • Fully customizable to suit your application in terms of size and performance.

After extensive test and research, CDS have decided to partner with Taicenn, a manufacturer with excellent UK support.

Our embedded solutions include;

  • Compliance with Safety & EMC Cetification
  • Cards which support – Network, serial, CAN Bus, Video Capture, Storage, Sync & Async applications
  • Industrial grade monitors for harsh environments with 24/7 usage
  • Rugged laptops and tablets
  • Touchscreen panel PCs for industrial and retail – utilising the latest Gen Intel CPUs
  • Rack-mount computers
  • Fanless embedded systems
  • Precision timing systems
  • Industrial rack mount PCs with flexible PCI & PCIe Expansion
  • Fanless industrial PCs with high performance platform

Innovation & Customisation

CDS focuses on being to be a Turn-key solution provider for Panel IPC and Embedded IPC applications.

With a dedication to technological innovation, CDS provides qualified products as well as timely & reliable technical support, that the clients can rely on so they can safely deploy with ease and confidence, increasing their ability to bring products to market quickly, and decreasing the development costs and internal support required.

You can check out our full range of Industrial Panel PC’s and Embedded SBC Boards

Advantages of working with us:

  • More than 20 years of experience in assembly and integration of industrial computing solutions
  • Understanding and flexible call-off order systems to help project manage and relieve stress of lead-times and project cash flow
  • Highly trained and skilled team of technicians and engineers
  • Wide-ranging off-the shelf product ranges for inclusive system design
  • System build quality and reliability assured using; EN 55032: 2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014, EN 60950-1:2006 +A2:2013, IEC 60950-1:2005+A1:2009+A2:2013, EN 60950-1:2006+A2:2013 certification
  • Full UK & European Support from CDS Engineers and Manufacturer
  • Fully configured kits for many LCD TFTs to give a direct drive digital system
  • Long term availability with 12 month EOL notices and Last Time Buys supported
  • True industrial design manufactured for highest reliability
  • Their vast range of embedded solutions are built to the highest standards for true industrial applications.



CHECK OUT OUR TBOX WHITE PAPER HERE



CDS Panel PC Quality and Reliability



For more information on our TBOX range, click here to contact us.











Wide range of processors and power which can include: Intel Atom Quad Core, ARM TI-AM3354, ARM Freescale i.MX6, Low Power x86, Quad Core Atom, 400MHz86, 4th Gen Core i3/i5, 6th Gen Core i3/i5, 4th Gen Core i3/i5, 6th Gen Intel Core i3/i5, , 4TH Gen Core i5, Intel Atom N2600, Intel Atom N2930, DualLite ARM, cortex a9, Intel Skylake Core, Onboard Intel Celeron N2930 Processor, Onboard Intel Atom N270 1.6, Onboard Intel Atom D510, 1.66GHz, Baytrail Quad 1.83GHz, Fan-less Atom N2600 1.6G CPU, Onboard Intel Bay Trail N2930, Intel Bay Trail E3845 Processor, Intel atom processor E3845 Stainless Steel Panel PC, All-in-one intel atom, All-in-one Intel Core, Mini-ITX motherboards, , Industrial Android Based Panel PCs, Intel quad core N930 bay trail, ARM based all in one panel PC, ARM based panel PC, Intel J1900/i7-3610QM, Intel J1900, Expandable cost effective Intel, flexible Panel PC SCADA system and Intel Bay Trail 3845 processor.

As you can see many advantages to our Box PCs including: Minimum heat dissipation, Reduce noise levels, Easy to use within demanding environments, Rugged environments, for Benign environments, Fully Sealed PCs, Washdown Computers, Fully enclosed computer, Hazardous Area PCs, Fanless Cooling System, Can be used directly in hazardous areas of zones 1/21 and 2/22, Harsh and aggressive environments, Based on the latest intel core processors, Fanless power efficient, Robust reliable versatile and maintenance free long term availability, Dust and water and generally Weather resistant

If you have an enquiry or wish to discuss your requirements in more detail then please do not hesitate to contact us.
