Exploring the LI72720T041TA3598: A Cutting-Edge Square TFT LCD with In-Cell Touch Technology
Impressive Square LCD with In-Cell Touch Technology
In today’s competitive market, the design and functionality of electronic devices are more crucial than ever. If you’re looking for an innovative display that can set your product apart, the LI72720T041TA3598 square TFT LCD might be the ideal solution. With a perfect blend of modern aesthetics and advanced technology, this 4.12” display offers features that will not only meet but exceed your project requirements.
Key Features
- Colour: 16.7M
- LCD Type: IPS-TFT-LCD
- Viewing Angles: 85/85/85/85(L/R/U/D)
- Active Area (AA): 73.98(W)*73.98(H) mm
- Touch IC: ILI2882N
- Luminance: 350cd/m²
- LED: 12 LEDS
- Interface: MIPI
- CTP Interface: IIC
- CTP Structure: Incell (Sine Cover Lens)
- Contrast ratio: 1200:1
- Response time: 35ms
- Colour gamut: 70%
Innovative Design with Modern Appeal

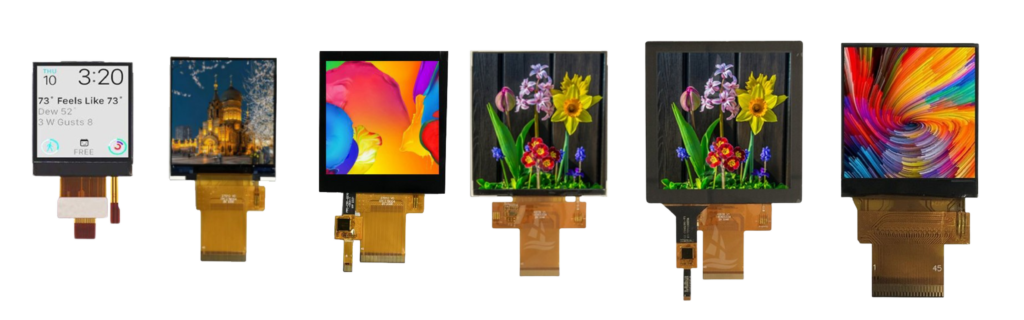

The LI72720T041TA3598 is a 4.12” TFT LCD with a unique square design and a resolution of 720(RGB) x 720 pixels. This symmetrical design is not only on-trend but also creates a modern and aesthetically pleasing appearance that can enhance the visual appeal of any product. Whether you’re developing a new gadget, a smart home device, or any other electronic application, this display’s sleek look will ensure your product stands out.
Click Below to Download our Brochure
Cutting-Edge In-Cell Capacitive Touch Technology

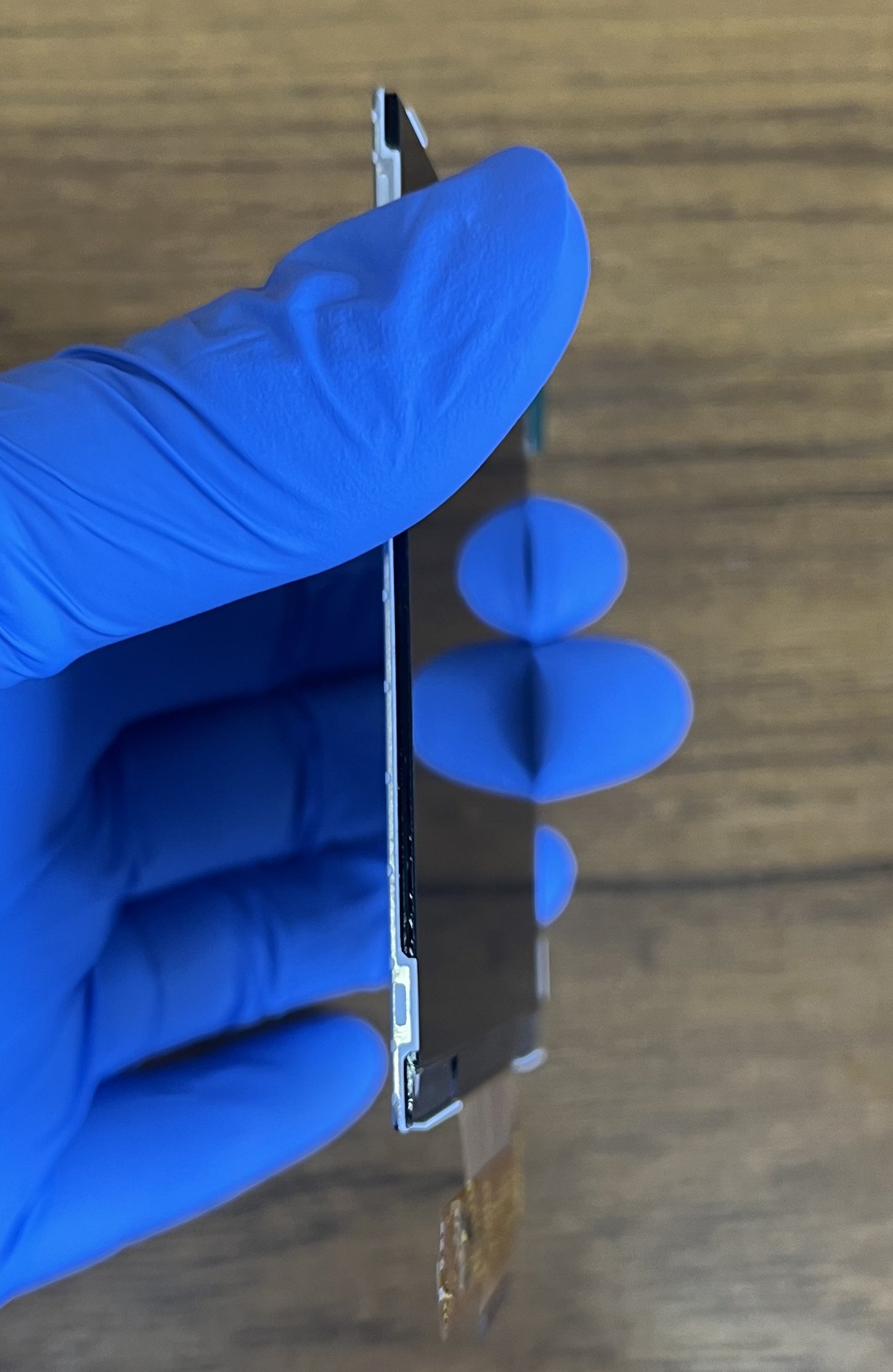

One of the standout features of the LI72720T041TA3598 is its incorporation of the latest in-cell capacitive touch technology. This advancement allows for the integration of touch functionality directly into the display, resulting in a module that is possibly the thinnest available today, with a depth of just 2.13mm. The ultra-thin profile makes it an excellent choice for applications where space is at a premium, without compromising on touch responsiveness or accuracy.
Superior Visual Performance with IPS Technology
The display utilises IPS (In-Plane Switching) technology, which is renowned for delivering ultra-wide viewing angles of 85/85/85/85 degrees. This ensures that the display content can be viewed clearly from virtually any angle, without any loss of image quality. Coupled with a 350nit brightness, a 16.7 million colour palette, and a high contrast ratio of 1200:1, the LI72720T041TA3598 guarantees crisp, vibrant visuals with bright whites and true blacks, enhancing the overall user experience.
Simplified Integration with MIPI and I²C Interfaces
Communication with the display is streamlined through a MIPI interface, while touch communication is handled via I²C. The display, backlight, and touch functionality are all connected through a single FPC (Flexible Printed Circuit), reducing the need for multiple connectors. This not only simplifies your PCB design but also minimises potential points of failure, ensuring a more reliable end product.
In summary, the LI72720T041TA3598 square TFT LCD is a remarkable display that combines modern aesthetics with cutting-edge technology. Its innovative design, thin profile, and superior visual performance make it an ideal choice for any project where both form and function are paramount. By incorporating this advanced display into your product, you can achieve a sleek, high-performance result that stands out in the marketplace. If you’re ready to elevate your next project, consider the LI72720T041TA3598 for a truly outstanding display solution.
