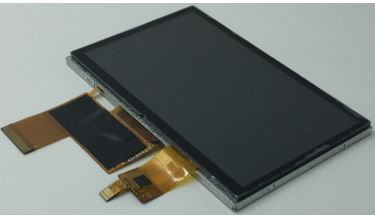

CDS Introduce the new CDS050WQ06H-CT6, a small scale 5 inch LCD TFT for integration. Amazing high performance TFT display with amazing resolution and 400nits of brightness.
With multiple options for touch this TFT is highly versitile and flexible meaning it can be integrated into multiple applications. This TFT has been produced for many successful, industrial projects so far including railway and factory monitors.
–Part Number: CDS050WQ06H-CT6
–Size: 5 inch
–Resolution Options: 480*272
–Luminance: Typ 400nits
–Viewing angle: 12 o’clock
–Display Dimensions: 120.7(H) x 75.8(V) x 4.3(T)mm
–Active Area: 110.88(H) x 62.83(V) mm
–Operating Temp: -20℃ ~ +70℃
-Frame option: SGLC or Stainless steel
–Touch panel option: RTP or CTP, I2C interface (USB available for projects), DST/ Optical Bonding
–Possible Applications:POS Machine, Handheld devices, Portable devices, Medical devices, GPS, Instruments, Industrial devices
To check out our full range of LCD TFT displays please click here
Or to simply find out more information and request data sheets contact the team via email or call our UK main office +44 (0) 1634 327420
