Circular LCD Displays
Circular LCD Display Range from Crystal Displays

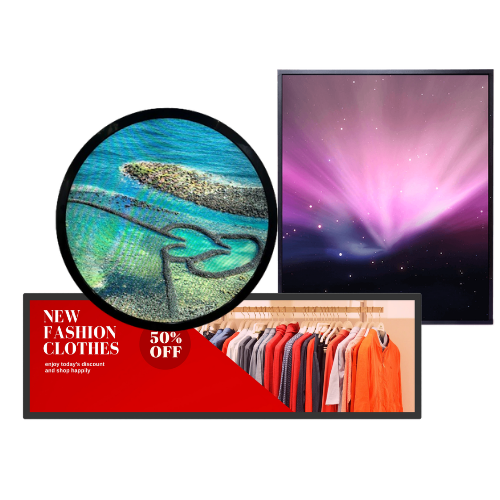

At CDS, we frequently receive requests for unique displays, so we’ve expanded our lineup to include circular LCDs alongside our square and stretched options. These versatile screens make a bold statement in digital signage and seamlessly fit industrial applications. A standout use case is in casino and gaming machines, where our circular monitors enhance aesthetics and attract players with their eye-catching design.
What is a LCD Circular Display?
A circular LCD display is a liquid crystal display (LCD) with a round screen instead of the traditional rectangular shape. Measured by diameter, it functions like standard LCDs but offers a unique form factor. Ideal for specialized digital signage, product design, and gaming machines, it provides design flexibility while maintaining full LCD capabilities.
Product Specification
| Part Number | Description | Resolution | Brightness | Inputs | Outer Dimensions | Notes |
|---|---|---|---|---|---|---|

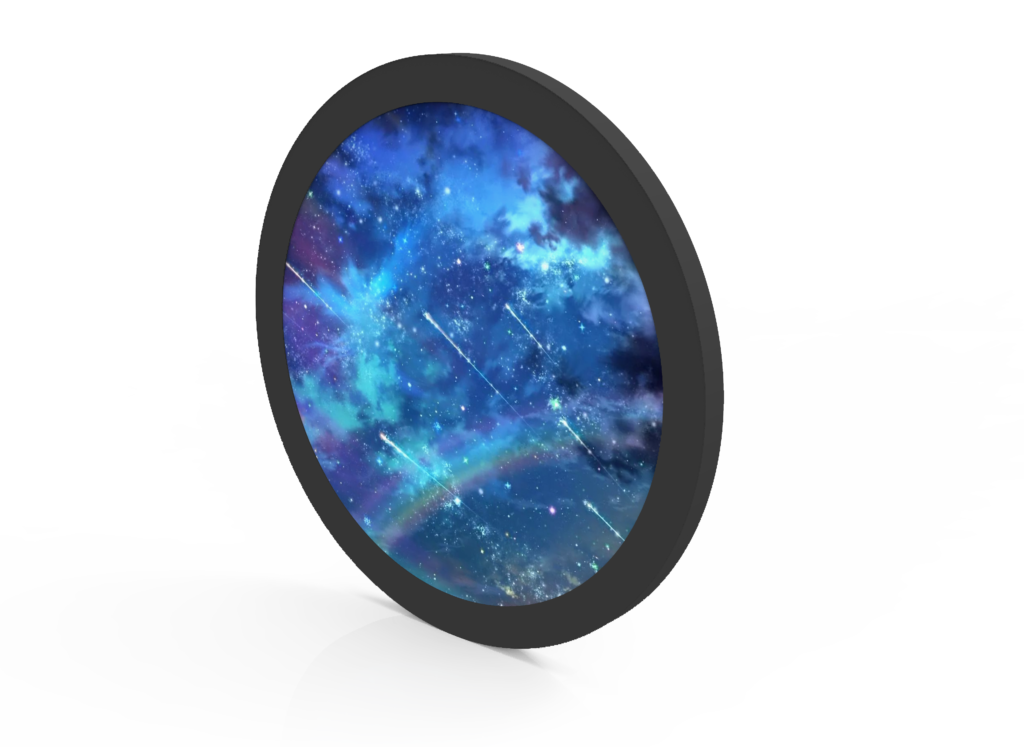

| MO-157-001-RND-Z | 15.7" Industrial Round Monitor | 960x960 | 700nits | DP, HDMI | ?483.55 x ?483.55 x 57.1 mm | Custom options include, inbuilt PCAP touch, Halo LED surround, upgraded coverglass (standard/AG/AR/UV), and double sided |
| MO-236-003-RND-Z-AR | 23.6" Round Monitor, (non-touch) with anti-reflective glass as standard (available without) | 1280x1280 | 700 nits | HDMI / DVI / VGA | ?710.6 x ?710.6 x 64.55 mm | Standard / other glass available |
| MO-236-006-RND-Z/PTF | 23.6" Round Monitor with inbuilt FLUSH PCAP touch | 1280x1280 | 700 nits | HDMI / DP / VGA | ?720 x ?720 x 65.8 mm | |
| HLF-236-001-RND-Z/PT | 23.6" Round Halo Flush Monitor with PCAP touch | 1280x1280 | 700 nits | HDMI / DP / VGA | ?720 x ?720 x 68.85 mm | Available without touch |
| MO-236-004-RND-1000OB-ZX | 23.6" Customised Round Monitor, IP65 front faced, and optically bonded front AR glass (non-touch) | 1280x1280 | 1,000 nits | HDMI / DVI / VGA | ?710.6 x ?710.6 x 68.05 mm | MOQ 10 pieces |
Key Features of Circular Displays
Circular Form Factor: Unlike traditional rectangular displays, circular displays have a round shape, offering a distinctive aesthetic that stands out in various applications.
Versatility: Circular displays can be used in a wide range of applications, including digital signage, gaming machines, product design, and industrial environments.
Unique Visual Presentation: The circular shape allows for unique visual presentations and content layouts, enhancing creativity and engagement in signage and advertising.
Wide Viewing Angle: Many circular displays offer a wide viewing angle, ensuring that content remains visible and clear from various perspectives.
High Resolution: Modern circular LCD displays often boast high-resolution screens, providing crisp and detailed images and text.
Durability: Circular LCD displays are typically designed to withstand the rigors of continuous operation, making them suitable for commercial and industrial use.
Customization Options: Manufacturers may offer customization options for circular displays, including size, resolution, brightness, and touchscreen capabilities, to meet specific project requirements.
Integration Flexibility: Circular displays can be integrated into different devices and installations, offering flexibility in design and implementation.
Customisation Options

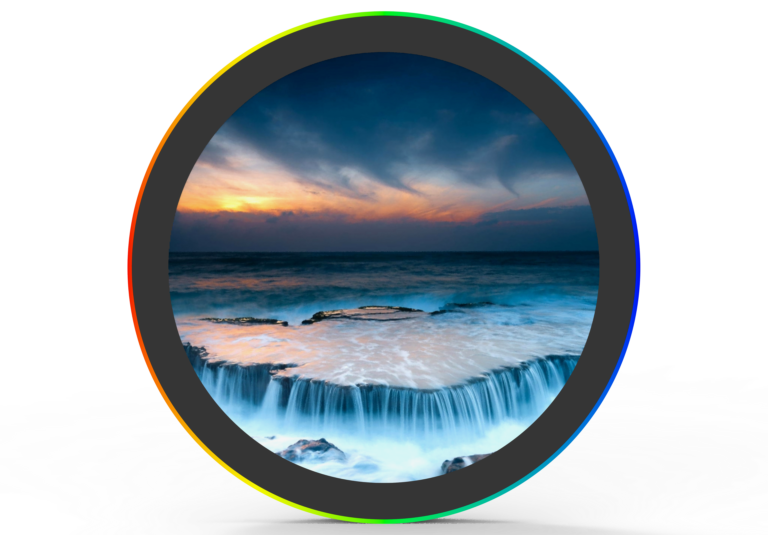

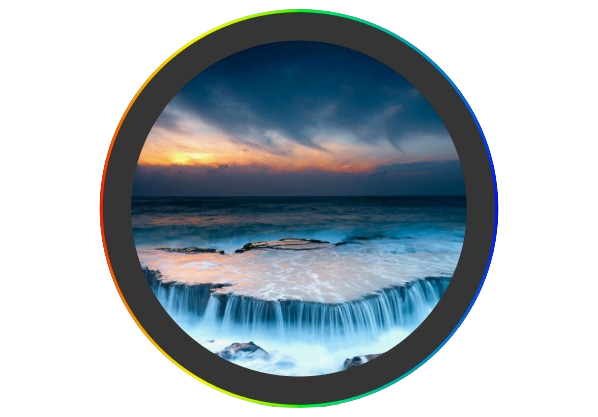

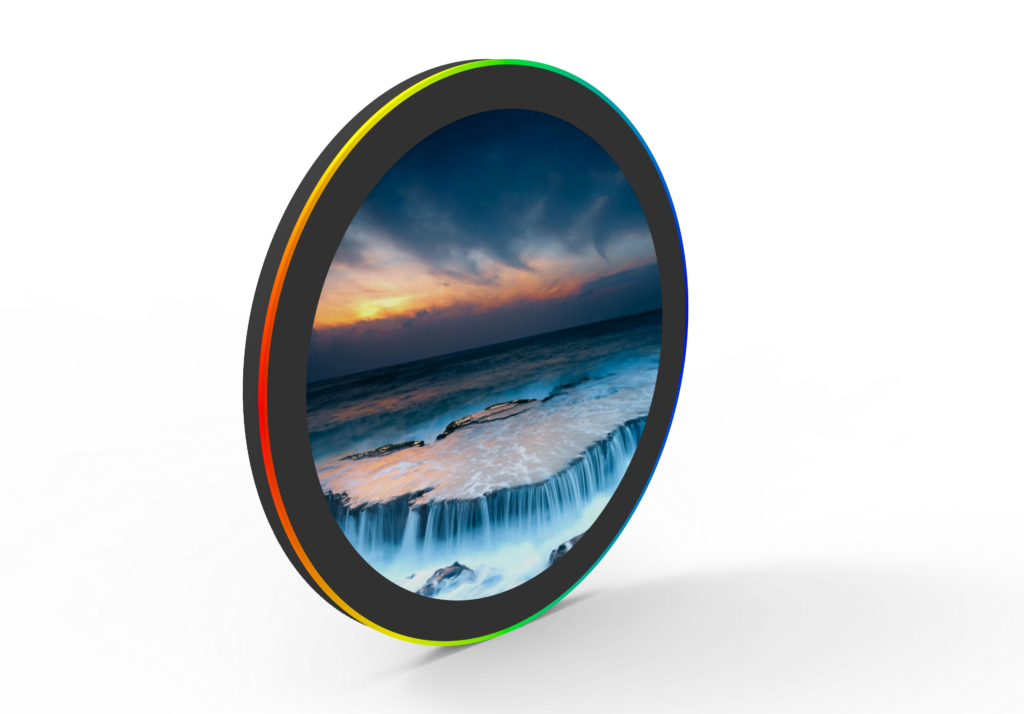

LED HALO Option
As well as this monitor, CDS can also offer a halo edge lit circular display. Consisting of a 23.6” industrial grade circular panel with up to 1000 nits brightness and high 1280x1280 resolution. It has been designed and engineered from the bottom up for the gaming industry but can be used in any quirky commercial design install for instance, or for a specialist industrial application.
We offer a range of standard options that can be personalised to suit your needs. The CDS circular offering has 700 nits brightness and high contrast for the highest quality picture images. We can increase the brightness to 1,000 nits. Also with options for IP65 front faced, anti-glare or anti-reflective glass.

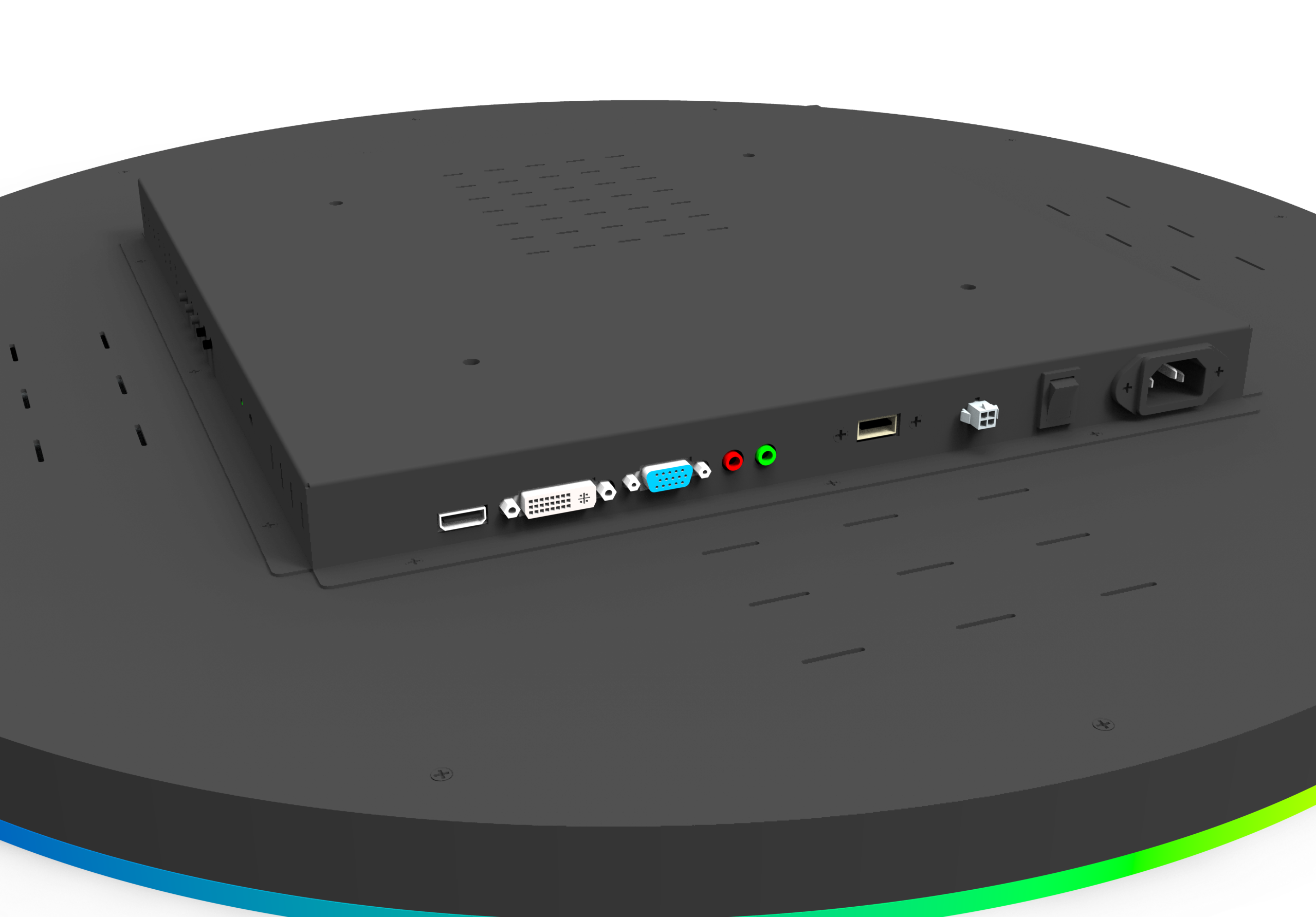

- HDMI: High-Definition Multimedia Interface for digital video and audio transmission.
- DisplayPort: A digital display interface commonly used for connecting computers to monitors.
- VGA: Video Graphics Array, an analog standard for connecting displays to computers.
Interactive touchscreen capabilities are accessible, leveraging cutting-edge PCAP touch technology. interactive touchscreen options are available, utilising the latest PCAP touch technology. CDS also offers for the large format circle displays drop in alternatives to Bestech monitors, Fantalooks displays, Elo touchscreens, Eurocoin monitors, all the Korean manufacturers as well as anyone you are using. Just send us a data sheet.

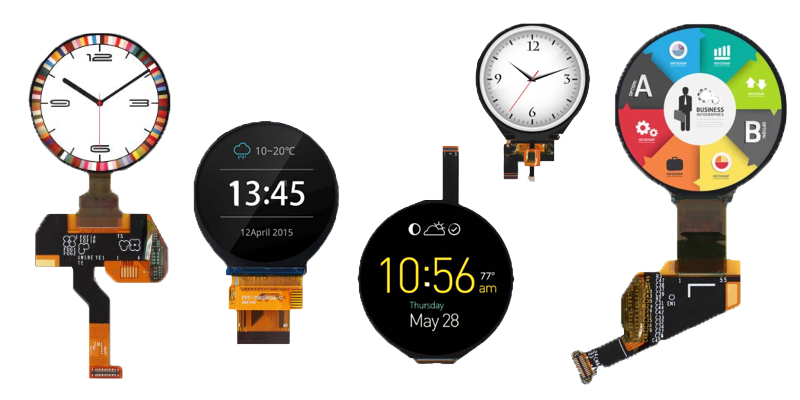

Plug and Play Small Format Circular Displays
CDS has always led the way in cutting-edge display technology, and we’re excited to expand our CircleVUE lineup with an all-new addition: compact circular Android displays. For years, CDS has offered small format circular LCD panels with HDMI input, primarily as components for system integration. Now, with the introduction of our new CircleVUE small circular displays, we’re meeting a clear market need—an all-in-one, ready-to-use circular solution that’s easy to operate and fast to deploy.
Small Circle Android Product Specification
| Part Number | Description | Resolution | Brightness | Inputs | Outer Dimensions | Notes |
|---|---|---|---|---|---|---|
| MO-034-RND-001-CT | 3.4" Circular LCD with HDMI input and PCAP Touch | 800x800 | 380 nits | HDMI | ?116 x ?116 x 15.62 mm | |
| MO-040-RND-001-CT | 4" Circular LCD with HDMI input and PCAP Touch | 720x720 | 320 nits | HDMI | ?126 x ?126 x 17 mm | Optional 1,000 nits |
| MO-050-RND-001-CT | 5" Circular LCD with HDMI input and PCAP Touch | 1080x1080 | 350 nits | HDMI | ?155 x ?155 x ?19mm | |
| MP-034-RND-001-CT | 3.4" Circular LCD with Android OS and PCAP Touch | 800x800 | 380 nits | Android 11 OS | ?117 x ?117 x 17.02 mm | |
| MP-040-RND-001-CT | 4" Circular LCD with Android OS and PCAP Touch | 720x720 | 320 nits | Android 11 OS | ?126 x ?126 x 17 mm | Optional 1,000 nits |
| MP-050-RND-001-CT | 5" Circular LCD with Android OS and PCAP Touch | 1080x1080 | 350 nits | Android 11 OS | ?155 x ?155 x ?19mm |
- Digital Signage: Ideal for retail, museums, and airports, showcasing ads, promotions, and directions with a bold, eye-catching design.

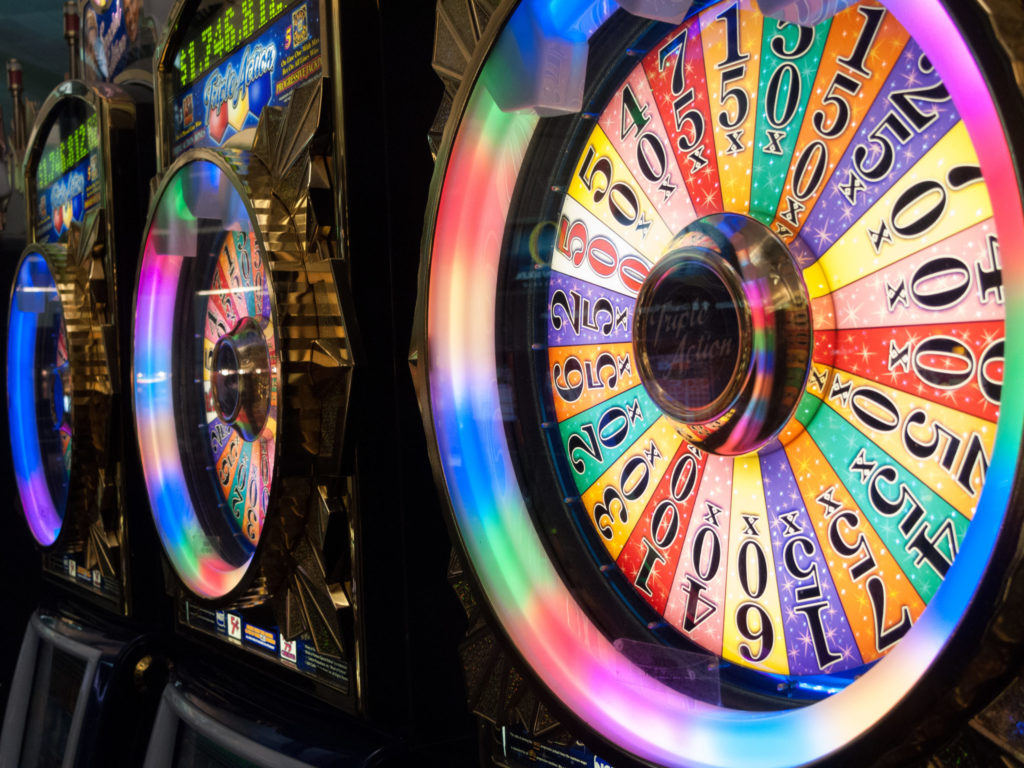

- Gaming Machines: Enhance slot machines and arcade games with dynamic visuals, game info, and bonus animations.
- Industrial Control Panels: Provide real-time monitoring and controls for machinery in industrial environments.
- Product Design: Used in smartwatches, fitness trackers, appliances, and automotive dashboards for innovative interfaces.
- Special Events & Exhibitions: Create impact at trade shows, art installations, and themed events with interactive content and branded messaging.
- Hospitality: Modernize hotels, restaurants, and venues with digital menus, kiosks, and info displays.
- Transportation: Display routes, schedules, ads, and safety messages in vehicles and transit hubs.
- Education & Museums: Enhance interactive exhibits and presentations in museums and learning centers.
A Round TFT (Thin Film Transistor) Panel refers to a display screen that has a circular shape, distinguishing it from traditional rectangular or square displays. TFT technology is commonly used in various electronic devices, including smartphones, tablets, and monitors, to produce high-quality, vibrant images.
CDS has raised the bar with their Transparent LED Circular Solution, a groundbreaking display that seamlessly merges form and function. With diameters ranging from 1 meter to an impressive 3 meters, these circular displays cater to a spectrum of creative possibilities. Whether it’s a compact installation or a larger-than-life centerpiece, CDS’s circular solution can adapt to diverse spatial requirements.
