Standard Ex-Stock Industrial Monitors
Ex-Stock Monitors Available TODAY

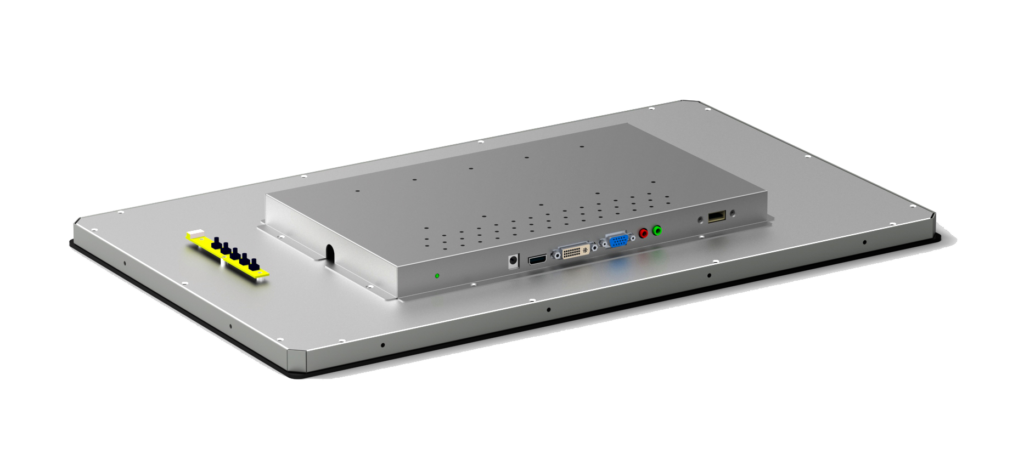

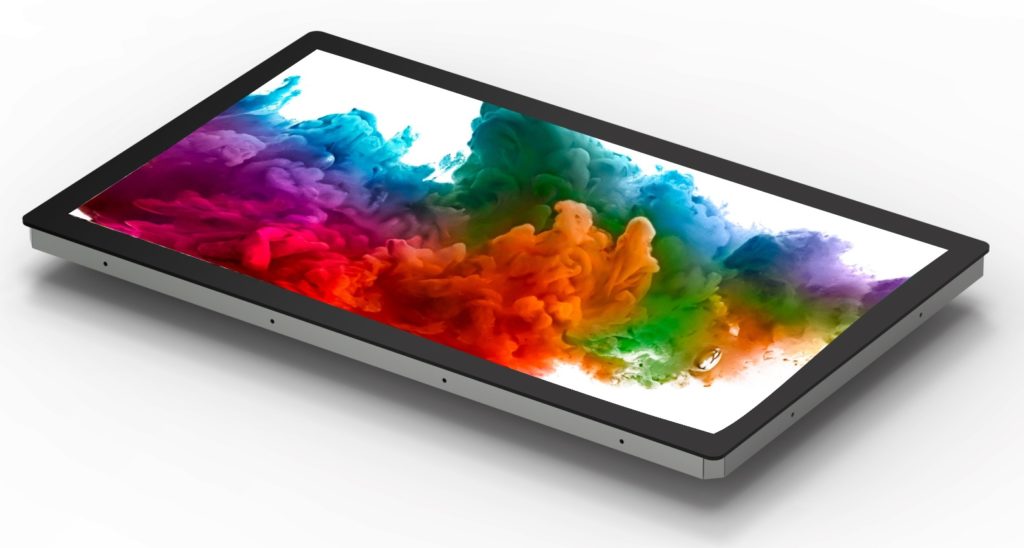

CDS has a number of industrial monitors as standard and available from stock to allow you to have rapid prototyping and design in a product without having to wait a long lead time for the product. Plus, all these products come with full warranty and in-house technical support, with the option of customisation or bespoke solutions to meet your specific requirements. The CDS range of open frame and closed industrial monitors offer an industrial quality product some with integrated touchscreens that enables accurate interaction without the need for a mouse and keyboard. All of our products have chemically strengthened glass or touchscreens ensuring they continue to work in the harshest environments. They are high quality, look great and carry an extended warranty.Â
CDS is also a display manufacturer selling & building various computing solutions, including Touch panel PCs & Displays and some of those display solutions we manufacture are: Industrial & Touch Displays, Fanless Touch Panel PCs, Modularized Touch Panel PC. For more information on our Panel PC solutions please go to: https://crystal-display.com/products/industrial-panel-pcs/. Or if looking for high brightness solutions you can search here: https://crystal-display.com/products/litemax-high-bright-panel-pc-range/.
- Easy to source monitorstoday from stock
- High quality low cost monitors from stock
- Simply select, email and purchase
Â
To ask about any of the following standard ex-stock monitors simply email info@crystaldisplay.comÂ
Product Specifications
Simply select your size, brightness, resolution, touch or non touch and email us. Easy!

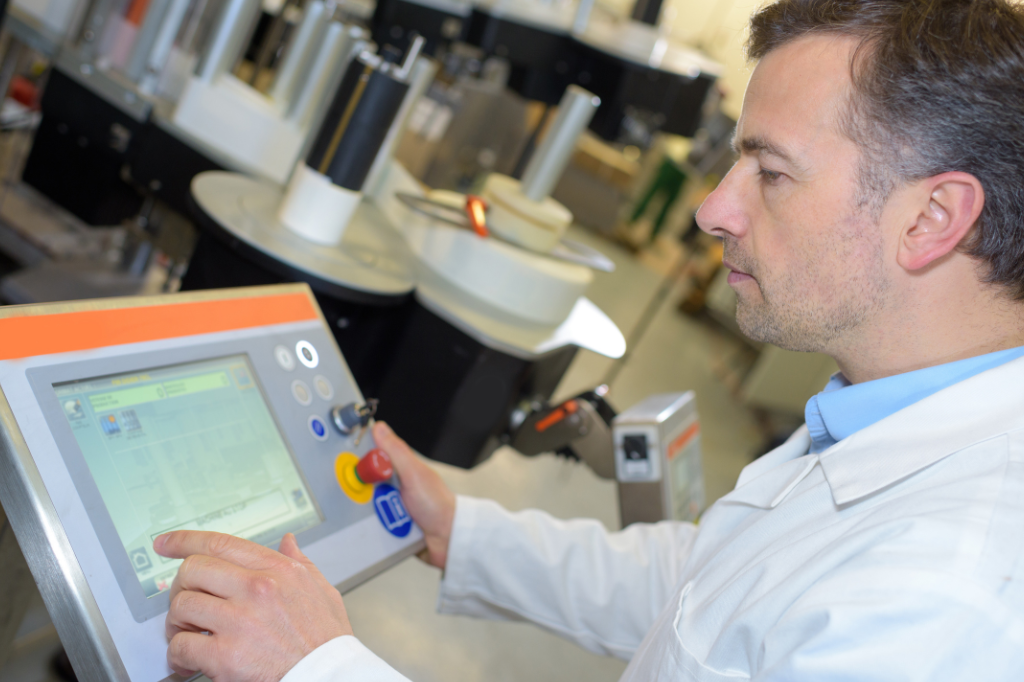

CDS industrial display specs include projected-capacitive multi-touch & resistive touchscreen LCD flat panels are built to last in rugged environments & applications, with the given example of a monitoring display with touchscreen for factory settings. The higher end Transportation touch screen displays are built for different applications such as GPS Navigation, Transit Systems, Ticketing Accessories & even Marine Devices. These devices are usually ruggedized in order to withstand extreme conditions such as temperature or vibration although Here are some of the enhancements that can be applied to these display solutions: Infrared filters, privacy films, scratch resistance coatings. We can also offer higher performance options including IP rating depending on the level of robustness you need for your project. Our industrial monitor range varies in size of display many of which are listed on the tables below.Â
| Model | MO-104-002Z/TV2 | MO-116-450-A/PT | MO-150-OB-1000-IP65-APTV2 | MO-170-OB-800-A/PT |
|---|---|---|---|---|
| Diagonal (inches) | 10.4" | 11.6" | 15" | 17" |
| Panel Brightness (cd/m2) Typ | 350 cd | 450 cd | 1000 cd | 800 cd |
| Aspect Ratio | 4:3 | 16:9 | 4:3 | 4:3 |
| Resolution | 1024 x 768 | 1920 x 1080 | 1024 x 768 | 1280 x 1024 |
| Active Area (w x h mm) | 212.2 x 159.4 | 256.32 x 144.18 | 304.12 x 228.09 | 337.92 x 270.34 |
| Unit Dimensions (w x h x d mm) | 252 x 189.4 x 42 | 288.3 x 186 x 30.7 | 348.7 x 272.6 x 45.9 | 384 x 316.4 x 47 |
| VESA Mounting (w x h mm) | 75 x 75 | 100 x 100 | 100 x 100 | 75 x 75 |
| Power | 9-36V input (Rated input voltage 12-24 volts DC) Nominal current 1A, 24 | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc |
| Viewing Angle (typ) | 160 / 160 | 176 / 176 | 160 / 160 | 170 / 160 |
| Interface | VGA / HDMI | HDMI | VGA / DVI-D | VGA / DVI / HDMI |
| Intergrated Touchscreen? | YES - USB | YES - USB | YES - USB | YES - USB |
| NOTES | MTBF of monitor is 50,000 hours | -20~70? (noncondensation) operating temperature. MTBF of monitor is 50,000 hours | -20~70? (non-condensation) operating temperature | -20~70? (non-condensation) operating temperature. 6mm AG PCAP |
| Model | MO-220-1-ZXI | MO-238-1-ZXI | MO-238-2-ZXI | MO-270-003-Z/T | MO-320-HB-1000-A/PT4K |
|---|---|---|---|---|---|
| Diagonal (inches) | 22" | 23.8" | 23.8" | 27" | 32" |
| Panel Brightness (cd/m2) Typ | 250 cd | 250 cd | 250 cd | 250 cd | 1000 cd |
| Aspect Ratio | 16:10 | 16:9 | 16:9 | 16:9 | 16:9 |
| Resolution | 1920 x 1200 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 3840 x 2160 |
| Active Area (w x h mm) | 473.76 x 296.1 | 527.04 x 296.46 | 527.7 x 297.5 | 598 x 337.2 | 699.6 x 393.95 |
| Unit Dimensions (w x h x d mm) | 496 x 326.5 x 42.5 | 558 x 327 x 48.5 | 563.5 x 317.5 x 56 | 644.2 x 388.4 x 39.6 | 764 x 459 x 59 |
| VESA Mounting (w x h mm) | NO | 100 x 100 | 75 x 75 | 200 x 100 | 200 x 200 |
| Power | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc |
| Viewing Angle (typ) | 170 / 160 | 178 / 178 | 178 / 178 | 178 / 178 | 178 / 178 |
| Interface | VGA / DVI | VGA / DVI | VGA / DVI | VGA / DVI / HDMI | 2 x HDMI 2 x DP |
| Intergrated Touchscreen? | NO | NO | YES - USB | YES - usb for touch version | YES - USB |
| NOTES | Thin 1.8mm touchscreen, ideal for coverglass integration, but thicker 6mm touch available upon request. | 3mm touch (but thicker 6mm touch available upon request but bezel would be redesigned. |
| Model | MO-190-1-ZXI | MO-190-2-ZXI | MO-190-3-ZXI | MO-215-1-ZXI | MO-215-002-S | MO-215-250-PT/A |
|---|---|---|---|---|---|---|
| Diagonal (inches) | 19" | 19" | 19" | 21.5" | 21.5" | 21.5" |
| Panel Brightness (cd/m2) Typ | 250 cd | 250 cd | 250 cd | 250 cd | 250 cd | 250 cd |
| Aspect Ratio | 4:3 | 4:3 | 4:3 | 16:9 | 16:9 | 16:9 |
| Resolution | 1280 x 1024 | 1280 x 1024 | 1280 x 1024 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Active Area (w x h mm) | 376.32 x 301.06 | 376.32 x 301.06 | 376.32 x 301.06 | 474.5 x 266.3 | 474.5 x 266.3 | 474.5 x 266.3 |
| Unit Dimensions (w x h x d mm) | 432 x 324 x 52.5 | 424.6 x 331 x 51.5 | 436.5 x 326.5 x 51 | 543.9 x 299.5 x 51.5 | 516 x 311 x 40.1 | 518 x 313.9 x 45.5 |
| VESA Mounting (w x h mm) | NO | NO | NO | NO | 100 x 100 | 75 x 75 & 100 x 100 |
| Power | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc | Ext 12Vdc |
| Viewing Angle (typ) | 178 / 178 | 178 / 178 | 178 / 178 | 178 / 178 | 178 / 178 | 178 / 178 |
| Interface | VGA / DVI | VGA / DVI | VGA / DVI | VGA / DVI | VGA / HDMI / DVI | VGA / DVI |
| Intergrated Touchscreen? | NO | NO | NO | YES - USB | YES - USB for touch version | YES - USB |
| NOTES | Thin 1.8mm touchscreen, ideal for coverglass integration, but thicker 6mm touch available upon request |
Technical specification overview table - LED Edge Lit HALO Range
| Model | HL-270-002-ZT | HL-430-001-ZTX |
|---|---|---|
| Diagonal (inches) | 27" | 43" |
| Panel Brightness (cd/m2) Typ | 250 cd | 300 cd |
| Aspect Ratio | 16:9 | 16:9 |
| Resolution | 1920 x 1080 | 3840 x 2160 |
| Active Area (w x h mm) | 598 x 336 | 942 x 530 |
| Unit Dimensions (w x h x d mm) | 657 x 395 x 59.95 | 1046 x 640 x 77 |
| VESA Mounting (w x h mm) | 100 x 100 | 400 x 400 |
| Power | Ext 240 V AC | Ext 240 V AC |
| Viewing Angle (typ) | 178 / 178 | 178 / 178 |
| Interface | HDMI / DV | HDMI / DP |
| Intergrated Touchscreen? | YES - USB | YES - USB |
| NOTES | integrated LED controller can be included or not | integrated LED controller can be included or not |
Applications

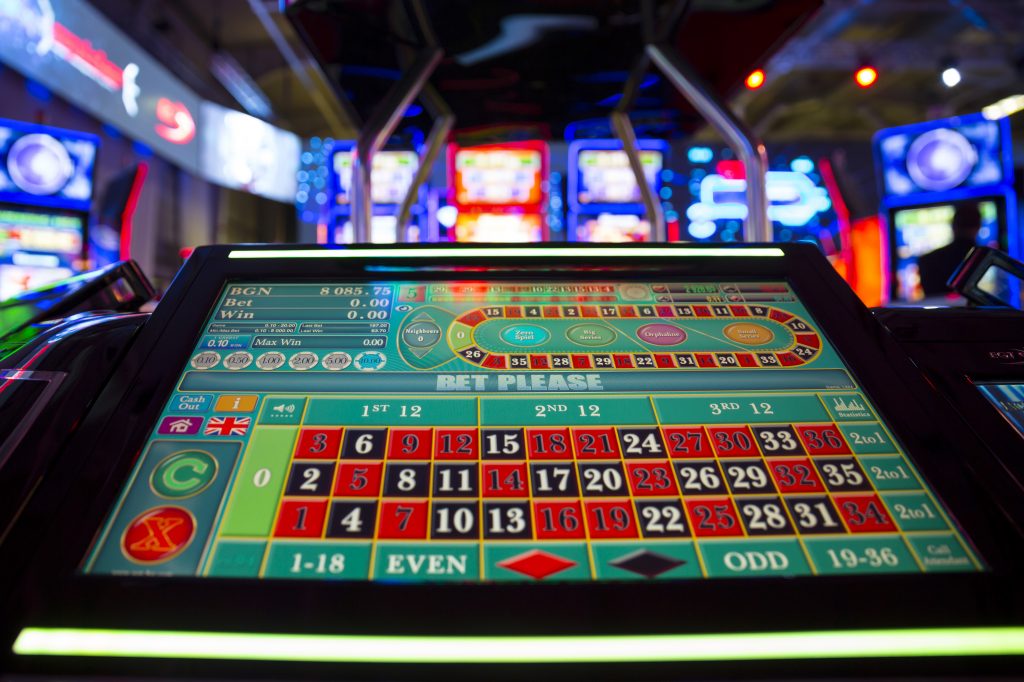

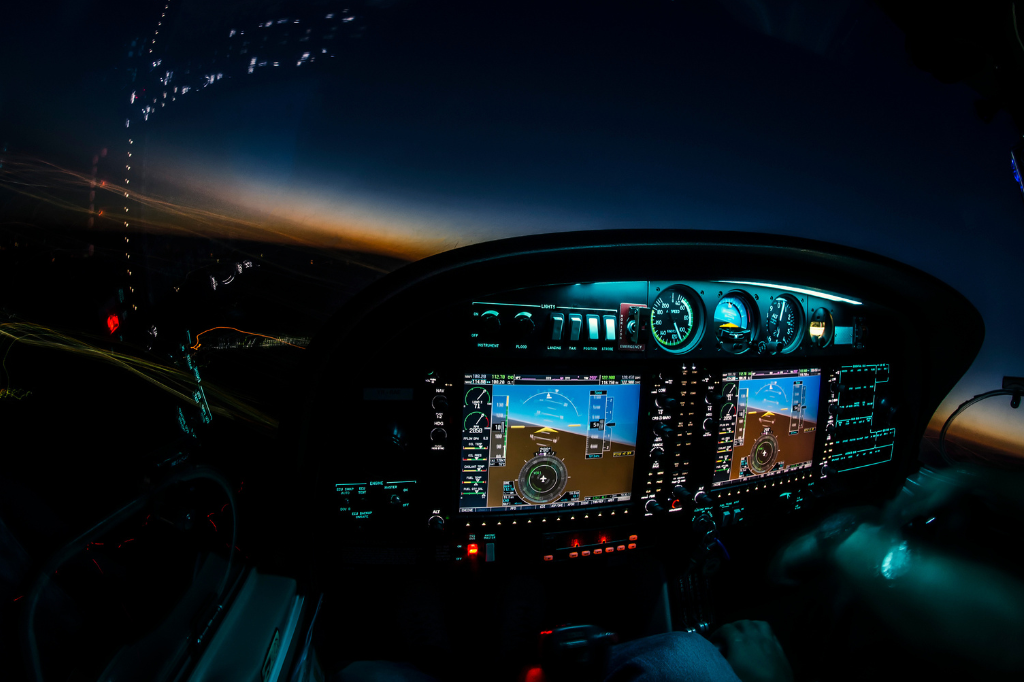

As a Global leader in manufacturing computing tech for embedded industries. CDS provides industrial-grade products & solutions that enable clients to optimise equipment. Some of the markets CDS supplied include Gaming, Industry Automation, Aerospace, Military, Medical, Casino displays, Transportation, Energy, Mission-critical, intelligent retail and more.

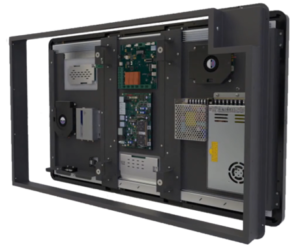

Need a custom design?
