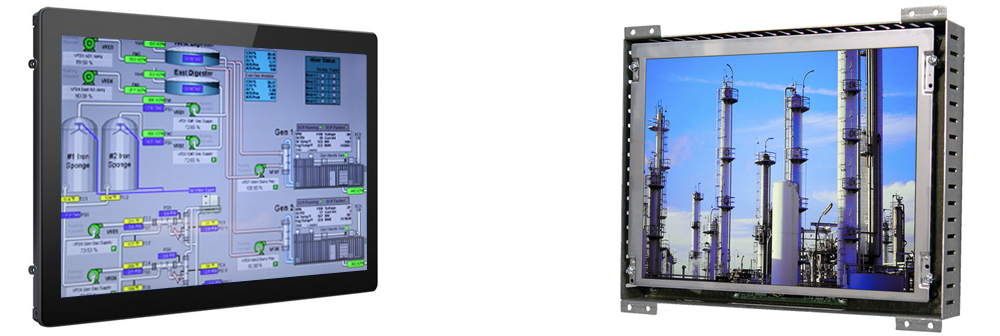

open frame Monitor from CDS open frame Monitor from CDS







Please find below our wide range of Open Frame monitors and Touch Monitors at the bottom of the page.

These open frame ‘chassis’ and panel mount products offer great benefits such as;

  • 6.5″ to 84″ available with up to 4K resolution.
  • Long term stability of mechanical design with VGA, DVI, HDMI, Video interfaces
  • Various built in Touchscreen options with RS232 / USB communication optional (for touch)
  • Excellent design to optimise air flow / heat dissipation, and minimal footprint with fine finishing with good looking black powder coated chassis (option)
  • Standard VESA mounting monitors
  • Some larger panels have SMPS (power supply) built in for your ease of design-In.
  • High Bright sunlight readable monitors

Our Range of Open Frame Monitors:

Size (")Brightness (nit)ResolutionInputsRemarks
5.7" W400640 x 480VGAExtended Temperature -30 to 80°C
6.5" W400640 x 480VGAExtended Temperature -30 to 80°C
6.5" A500640 x 480VGAOpen Frame
7" W400800 x 480VGA
7" W400800 x 480VGA
7" W400800 x 480VGAWide Viewing Angle
7" W400800 x 480VGAWide Viewing Angle
7" W2001024 x 600VGA
7" A350800 x 480VGA / DVIPanel Mount
7" W350 1280 x 800VGAExtended Temperature -20 to 70°C
8.4" W350800 x 600VGAExtended Temperature -20 to 70°C
8.4" A200800 x 600VGA / DVIPanel Mount
8.4" A200800 x 600VGA / DVILow Cost Open Frame
9.7" W3501024 x 768VGA
9.7" A4201024 x 768VGA / DVI / DC2.0Panel Mount
9.7" W3501024 x 768VGA
10.1" W2001280 x 800VGA
10.1" W3001280 x 800VGAWide Viewing
10.1" W3001280 x 800VGAWide Viewing & Wide Temp
10.1" W2001366 x 768VGA
10.1" W3501920 x 1200VGA
10.1" W4001920 x 1200VGAWide Viewing
10.4" NX400800 x 600VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive Touch
Panel Mount
10.4" F3481024 x 768HDMI / DVI / VGAOpen Frame With PCAP Touch
10.4" F3601024 x 768HDMI / DVI / VGAOpen Frame
10.4" F2881024 x 768HDMI / DVI / VGAOpen Frame With 4W RTP Touch
10.4 W350800 x 600VGA
10.4" A1000800 x 600VGA / DVIPanel Mount
10.4" W350800 x 600VGAExtended Temperature -30 to 70°C
10.4" A1500800 x 600VGA / DVIOpen Frame
10.4" W3501024 x 768VGA
10.4" A300800 x 600VGA / DVILow Cost Open Frame
10.4"4001024 x 768VGAExtended Temperature -30 to 70°C
10.4" A230800 x 600VGA / DVI / DC2.0Open Frame with IR Touch
11.6"2501920 x 1080VGA
12" A400800 x 600VGA / DVIPanel Mount
12.1" NX400800 x 600VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive touch, -30 to 80°C
Panel Mount
12.1" F4251024 x 768HDMI / DVI / VGAOpen Frame With PCAP Touch
12.1" F4501024 x 768HDMI / DVI / VGAOpen Frame
12.1" W3501280 x 800VGA
12.1" F3601024 x 768HDMI / DVI / VGAOpen Frame With 5W RTP Touch
12.1" W3501280 x 800VGAWide Viewing
12.1" A400800 x 600VGA / DVILow Cost
12.1" W4001280 x 800VGAWide Viewing
& Extended Temp
12.1" A5001024 x 768VGA / DVI / DC2.0Chassis mount
12.1"3501024 x 768VGAExtended Temperature -30 to 80°C
12.1" A400800 x 600VGA / DVIOpen Frame
14" A2501920 x 1080VGA / DVI / USBPCT Touch
15" NX3001024 x 768VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive Touch
Panel Mount
15" A4001024 x 768VGA / DVIPCT Touch
15" A2501024 x 768VGA / DVI3M Capacitive Touch
15" A2501024 x 768VGA / DVI / USBResistive Touch
15" A2501024 x 768VGA / DVI / USBPCT Touch
15" F2171024 x 768HDMI / DVI / VGAOpen Frame With PCAP Touch
15" F3481024 x 768HDMI / DVI / VGAOpen Frame With PCAP Touch
15" F225/3601024 x 768HDMI / DVI / VGAOpen Frame
15" F180/2881024 x 768HDMI / DVI / VGAOpen Frame With 5W RTP Touch
15" A3501024 x 768VGA / DVIPanel Mount
15" W2501024 x 768VGA
15" A2501024 x 768VGA / DVILow Cost
15" W3501024 x 768VGAExtended Temperature -20 to 70°C
15" A3501024 x 768VGA / DVI / DC2.0 / AudioChassis mount
15" W3501024 x 768VGAWIDE VIEWING ANGLE
15.4" W3001280 x 800VGA
15.4" W4001280 x 800VGAWide Temp
15.6" W2001366 x 768VGA
15.6" W2501920 x 1080VGAWide Viewing Angle
15.6" W3501920 x 1080VGAWide Viewing Angle & Wide temp
15" A3501024 x 768VGAOpen Frame
17" NX2501280 x 1024VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive Touch
Panel Mount
17" A2501280 x 1024VGA / DVISAW Touchscreen
17" A2501280 x 1024VGA / DVIPCT Touch
17" A3501280 x 1024VGA / DVIIR Touchscreen
17" A3001280 x 1024VGA / DVIIR Touchscreen
17" A2501280 x 1024VGA / DVIPanel Mount
17" A3001280 x 1024VGA / DVIOpen Frame
17" A2501280 x 1024VGA / DVI / Audio / DC 2.0Chassis mount
17" A3001280 x 1024VGA / DVILow Cost
17" A3001280 x 1024VGA / DVIResistive Touch
17" W3001440 x 900VGA
17" A3501280 x 1024VGA / DVIIR Touchscreen
17" W2001920 x 1200VGA
17" W4501920 x 1200VGAWide viewing angle & extended temp
17.3" W3001920 x 1080VGAExtended Temp
17.3" W3001920 x 1080VGAWide Viewing Angle
17" F2181280 x 1024HDMI / DVI / VGAOpen Frame With PCAP Touch
18.5" NX2501366 x 768VGA / DVI / HDMI / DC 12V / AUDIOIR Touch
Panel Mount
18.5" A6001440 x 900VGA / DVICapacitive Touch
18.5" A2501366 x 768VGA / DVILow Cost
18.5" W2501366 x 768VGA
18.5" W3501920 x 1080VGA Wide Viewing angles & extended temp
19" A2501280 x 1024VGA / DVISAW Touchscreen
19" A3501280 x 1024VGA / DVIPanel Mount
19" NX2501280 x 1024VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive Touch
Panel Mount
19" A3501280 x 1024VGA / DVI / Audio / DC 2.0Chassis mount
19" A2501280 x 1024VGA / DVILow Cost
19" W2501440 x 900VGA
19" A3501280 x 1024VGA / DVI3M Capacitive Touch
19" A2501280 x 1024VGA / DVICapacitive Touch
19" A3501280 x 1024VGA / DVIIR Touchscreen
19" A3501280 x 1024VGA / DVIOpen Frame
20.1" W3001600 x 1200VGA
20.1"4001600 x 1200VGA
21.3" W8002048 x 1536VGA
21.5" NX2501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOIR, 5 wire-Resistive Touch
Panel Mount
21.5" A2501920 x 1080VGA / DVIResistive Touch
21.5" A3001920 x 1080VGA / DVIPCT Touch
21.5" A3001920 x 1080VGA / DVIPCT Touch
21.5" A2501920 x 1080VGA / DVIResistive Touch
21.5" A2501920 x 1080VGA / DVILow Cost
21.5" A3001920 x 1080VGA / DVI / HDMI / IPHONE3M Capacitive Touch
21.5" A3001680 x 1050VGA / DVIPanel Mount
21.5" NP2501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP TOUCH
21.5" W2501920 x 1080VGA
21.5" W2501920 x 1080VGA Extended Temp
21.5" W2501920 x 1080VGA Wide Viewing
22" A3001680 x 1050VGA / DVI / DC2.0 / AudioChassis mount
22" A3001680 x 1050VGA / DVI / DC 2.0Low Cost
22" W2501680 x 1050VGA
22" W2501680 x 1050VGA Wide Viewing Angles
23" NX2501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOIR Touch
Panel Mount
23" NP2501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP TOUCH
Slim Bezel
HiBrite option available
23.8" W3003840 x 2160VGA+HDMI+DP4K
24" A2501920 x 1080VGA / DVIChassis mount
24" W2501920 x 1080VGA
24" W2501920 x 1080VGAWide Viewing
24" W2501920 x 1080VGAWide Viewing & Extended Temp
24" W3001920 x 1200VGAWide Viewing
27" W3001920 x 1080VGA
27" W3001920 x 1080VGAWide Viewing
27" W3502560 x 1440VGA+HDMI+DP
27" W3003840 x 2160VGA+HDMI+DP
32" NP4501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP or IR TOUCH
HiBrite option available
32" W3501920 x 1080VGA
32" W3503840 x 2160VGA+HDMI+DP
32" W3501920 x 1080VGA
32" W3502560 x 1440VGA+HDMI+DP
32" W3503840 x 2160VGA+HDMI+DP
34" W3002560 x 1080VGA+HDMI+DP
32" A10001920 x 1080VGA / DVI / AV / HDMI / DC 2.0Chassis mount
42" NP7001920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP or IR TOUCH
HiBrite option available
42" A4001920 x 1080VGA / DVI / AV / HDMI / S-Video / DC2.0Chassis mount
42" W3501920 x 1080VGA
42" W3503840 x 2160VGA+HDMI+DP
46" NP5001920 x 1080VGA /DVI / HDMI / DC 12V / AUDIOPCAP or IR TOUCH
HiBrite option available
46" W3501920 x 1080VGA
47" NP7001920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP or IR TOUCH
HiBrite option available
55" NP4501920 x 1080VGA / DVI / HDMI / DC 12V / AUDIOPCAP or IR TOUCH
HiBrite option available
55" W3501920 x 1080VGA
55" W3503840 x 2160VGA+HDMI+DP
65" W3501920 x 1080VGA
65" W3503840 x 2160VGA+HDMI+DP
75" W3503840 x 2160VGA+HDMI+DP
85" W3503840 x 2160VGA+HDMI+DP

High Bright Options:

Size (")Bright. (nit)ResolutionInputs
7” L10001024 x 600VGA, DVI-D, HDMI
8.4” L1600800 x 600VGA, DVI-D
10.1” L10001024 x 600VGA
10.4” L10001024 x 768VGA, DVI-D
10.4” L1600 / 2000800 x 600VGA, DVI-D
10.4” L10001024 x 768VGA, DVI-D
10.4” L13001024 x 768VGA, DVI-D
12.1” L10001024 x 768VGA, DVI-D
12.1” L1600/20001024 x 768VGA, DVI-D
12.1” L16001024 x 768VGA, DVI-D
13.3” L10001280 x 800VGA, DVI-D
15” L10001024 x 768VGA, DVI-D
15” L10001024 x 768VGA
15” L16001024 x 768VGA, DVI-D
15.6” L14001920 x 1080VGA, DVI-D, DP
17” L10001280 x 1024VGA, DVI-D
17” L16001280 x 1024VGA, DVI-D
17” L16001280 x 1024VGA, DVI-D
18.5” L10001366 x 768VGA, DVI-D
18.5” L16001920 x 1080VGA, DVI-D, HDMI
19” L10001280 x 1024VGA, DVI-D
19” L16001280 x 1024VGA, DVI-D
19” L16001280 x 1024VGA, DVI-D
19” L10001280 x 1024VGA, DVI-D
21.5” L16001920 x 1080VGA, DVI-D
21.5” L1200 / 16001920 x 1080DVI-I, DP/ VGA, DVI-D
21.5” L14001920 x 1080VGA, DVI-D
23” L10001920 x 1080VGA, DVI-D
23” L10001920 x 1080DVI-I, DP
24” L10001920 x 1080VGA, DVI-D, HDMI
32” L1200 / 1800 1366 x 768VGA, DVI-D, HDMI
32” L10001920 x 1080VGA, DVI-D, HDMI
42” L10001920 x 1080VGA, DVI-D, HDMI
43” L1800 3840 x 2160VGA, DVI-D, HDMI
43” L25001920 x 1080VGA, DVI-D, HDMI
55” L25001920 x 1080VGA, DVI-D, HDMI
55” L14001920 x 1080VGA, DVI-D, HDMI
55” L12001920 x 1080VGA, DVI-D, HDMI
65” L20003840 x 2160VGA, DVI-D, HDMI

MORE INDUSTRIAL MONITORS CLICK HERE

The link above will take you to monitors that are available as pane mount and open frame monitors with or without integrated PCAP and 5 wire resistive touch sensors as well as high bright panels to meet your specific monitor requirements. Just contact us if you have.

Custom Options Available:

We also have custom monitors with many options such as:

  • Front Bezel, Rack Mount, Panel, Mount enclosures
  • Touchscreen / Protective Glass
  • Integrated Media Player
  • Integrated PC
  • Custom inputs, IR sensor and more.

Example of one of the open frame design breakdown:

 open frame Monitor from CDS











Examples of open frame designs:

 open frame Monitor from CDS

 open frame Monitor from CDS









Touch Screen Monitors

All our monitors are available as interactive touch monitors utilising the touch technology of your choice including PCAP, resistive, capacitive, SAW (Sound Acoustic Wave) and I.R (Infra-Red).

This can be single, dual or multi touch with the possibilities of ultra wide viewing angle or hibrite as well as ruggedised vandal resistant options.

We also offer Customised touch monitors to meet your specific requirements which can be form fit and function copies of major branded monitors to save you money and utilise the latest technologies if required.

SAW Touchscreen Monitors Still Available

SAW (Surface Acoustic Wave)  is one of the leading touch technologies available on the market today.

Widely used in both industrial and retail applications its renowned for its high accuracy,high transmission and durability.

SAW touchscreens rely upon sound waves; thus, “sound wave reflectors” are placed along the edges of the glass. Two transducers are placed in two of the corners, and two receivers are mounted in the opposite corners. A sound wave travels parallel to the edges of the glass. When the sound wave encounters the reflectors, the wave is transmitted from the transducers to the receivers. A touch point is detected when a drop in the amplitude of the sound wave occurs.

saw PCAP Touch Monitor

CDS with many years’ experience understands the Touchscreen and industrial monitor Business in great depth so we can advise on the suitability of products for your application and we offer full support on all products sold. With a range of screen sizes available and our years of experience and expertise you are sure to find the best solution for your application whether it be one unit or 1000 we are here to help.  We feel we can save you money compared to many of the more expensive branded products, so please give us a call.

Custom Monitor design and manufacture

CDS as well as its standard off the shelf monitor designs offers a custom design service with low prices and Minimum Order Quantity of only 100 pieces!

As you can see from the image below we have a strong quality orientated process to help ensure the highest quality and reliability to meet our customers’ strict requirements.  Should you have a custom monitor project or wish to discuss any monitor projects you may have please contact our technical sales team on the phone number of email below.















Our open frame monitor products also include: square monitors, widescreen monitors,  Transparent monitors, display showcases,  curved touch screen monitors, commercial monitors, IP65 and IP66 monitors, Digital Display screens, square computer monitors, Industrial LCD monitors, largest ultra wide monitor, touch overlay for monitors, large capacitive touchscreen monitors, kiosk screens, low cost touch screen monitors, weather proof IP66 monitors, one glass solutions, USB touchscreen monitors, low power LCD monitors, kiosk touch monitors, extra wide battery touchscreen monitors, LCD monitor, outdoor monitor screens, multitouch monitor, Dynascan monitors, outdoor digital screen displays, 3d holographic monitor, AUO  monitors, LVDS monitors, optical bonding monitors as well as optically bonded monitors, water resistant touch screen monitors, mini USB monitor touch, advertising monitors LCD, LCD monitor components, Kyocera Monitor, TFT monitor definition, TFT Monitor, and 120hz LCD panel monitors.

 open frame Monitor from CDS









Some other options and variations of the CDS Monitor range: Baanto touch screen monitors, medical monitors, Chi Mei LCD Monitor, 2 sided monitor, double sided monitor, square HDMI monitor, high brightness LED monitors, waterproof marine monitors, custom Gaming monitors, large square monitors, ultra-wide touch screen monitor, clear touch screen monitors, infrared touch screen monitor, interactive touchscreen monitor, touchscreen Gaming monitors, low cost gaming monitors, embedded monitors, commercial LCD Display Monitors, daylight readable monitors, high brightness monitors, video wall display monitors, waterproof touch screen monitors, dual touch screen monitors, battery operated monitors, open frame touch monitors, Samsung multi touch monitors, touch screen overlays for monitors, marine LCD Monitors, open frame LCD monitors, open frame touch screen monitors, USB Touch monitor, glass touch screen monitors, square LCD Monitors, portable touch monitors, and low cost monitors.

 open frame Monitor from CDS









We have various sizes as you can see including:  10.4 open frame LCD monitors, 19 open frame monitors, monitor LCD 15 inch, 42 inch curved monitors, 42 inch touch screen monitor, 43 inch curved monitors, 42 LCD monitors, 84 inch monitors, 7 inch capacitive touch screen monitors, 10 inch USB Monitor, Samsung 46 monitor, 42 inch LCD Monitors, thin frame monitors, slimline monitors,  IP65 monitors, Samsung TFT monitors, 70 touch screen monitors, glass screen monitor, and 17.3 inch monitor.



If you would like panel only click here or for hibrite panels click here

For the latest news on our industrial monitors click here

For more information on our Open Frame Monitors please email info@crystal-display.com or call our main office on +44 (0) 1634 327 420.
