NEW 7" Widescreen Display with Hybrid (Ethernet over USB) board solution

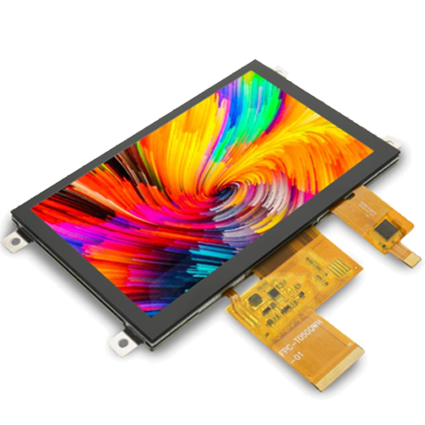

T070W2D3 v.0L is a 7 inch (15:9 aspect ratio) colour active matrix TFT LCD  slim  monitor and excellent display performance driven by a pure DIGITAL LVDS interface. This Display Solution monitor supports 800(H) x RGB x 480(V), stripe color pixel format, and 262,144 colors (RGB 6 bits data) with outstanding colour image and ALL-IN-ONE functionality, including a LED backlight driver, DC-DC conversion circuitry.
.
Its outstanding performances with wide operation temperature range, -20 ~ 70ºC, good brightness, 300 nits(typ.) and wide viewing angle(140。/120。) make this monitor very suitable for applications in server environments. Its slim mechanical design and low power consumption provide high design flexibilities in all kind of applications for customers.
.
Item Specification
Size 7.0″
Resolution WVGA, 800 x 480
Brightness 240 cd/m²
Contrast 500:1 typ.
Viewing Angle v/h 120°/140°, CR ≥ 10
Backlight LED
Interface LVDS
Color Depth 262K (6bit/Color)
Display Mode normally white
Response Time Tr/Tf 10/15 ms
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
Supply Voltage 3.3V (5V LED Driver)
Dimensions (WxHxD) 165.8/104.8/6.45 mm (typ.)
Display Area (WxH) 152.4×91.44 mm
Touch Screen 4-wire resistive
General Applications Display terminal for applications of Portable Devices, Video Player, Navigation, Industrial,
Medical, Gaming, Amusement
Special Features LED Driver included
with Touch Screen
Thin & light weight

For more information please email info@crystal-display.com
