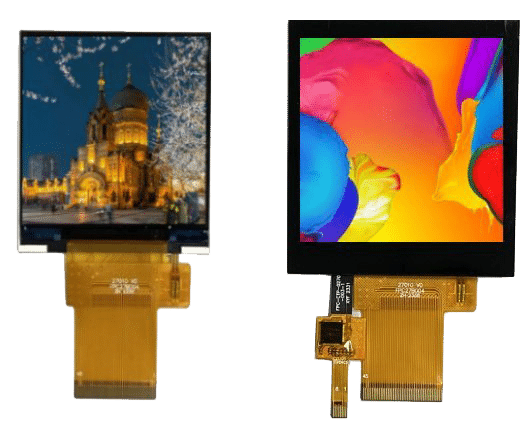

2-7inch WT TFT LCD

Introducing the Power of 2.7 Inch Square TFT Displays: Ideal Solutions for Auto, Aero, and Military Applications

Utilise our 2.7" small format square TFT in your demanding environment and see the benefits

In the dynamic landscape of display technology, the 2.7-inch square TFT (Thin-Film Transistor) has emerged as a powerhouse, delivering exceptional performance in diverse applications. This blog post explores the impressive features of a specific 2.7-inch square TFT, designed to thrive in the challenging environments of auto, aero, and military sectors.

Operating Temperature: A Wide Range of Possibilities

With an operating temperature range spanning from -30°C to +85°C, our 2.7-inch square TFT takes durability to the next level. This robust temperature tolerance ensures reliability and functionality even in extreme conditions, making it an ideal choice for applications where temperature variations are a constant challenge.

Compact Design, Big Impact

Measuring just 53.4(H) x 59.9(V) x 2.29(D)mm, this compact display packs a punch. The small form factor doesn’t compromise on performance, making it a space-efficient solution for environments where every inch matters. The active area of 48.96(H) x 48.96(V)mm ensures that the display maximizes its visual impact within its compact dimensions.

Optical Performance Beyond Expectations

The IPS (In-Plane Switching) panel of our square TFT boasts an impressive optical performance. With ultra-wide viewing angles of 85°/85°/85°/85°, users can experience consistent and vibrant visuals from virtually any perspective. The high contrast ratio of 1200:1 and a brightness of 860 nits make this display suitable for both indoor and outdoor full sunlight viewing applications, ensuring clarity and visibility in any environment.

Flexible Communication Options

Developers rejoice as this square TFT provides flexible communication options. The display features 3/4 wire SPI, 16/18 Bit RGB, and 8/9/16/18 Bit MCU interface options, all seamlessly incorporated into its ST7796 single controller IC. This versatility empowers developers to integrate the display effortlessly into their projects, providing a tailored and streamlined user experience.

Touch Functionality at Your Fingertips

For applications that demand full touch functionality, the 5-Point Multi-Touch capacitive touch option is a game-changer. This feature adds an interactive dimension to the display, opening up possibilities for innovative user interfaces in a variety of sectors.


In conclusion, the 2.7-inch square TFT display showcased here is more than just a visual component; it’s a solution tailored for the challenges of auto, aero, and military applications. With its wide operating temperature range, compact design, outstanding optical performance, flexible communication options, and touch functionality, this TFT display stands as a testament to the cutting-edge capabilities of display technology. Whether you’re developing for indoor or outdoor environments, this square TFT promises a visual experience that exceeds expectations.

Check Out Some Of Our Square Displays in Action
