LG In-Cell Touch, New Technology for Low Cost Interactive Stretched

If you are interested in stretched TFT LCD panels and especially those with integrated touchscreens, then CDS has an excellent range of LG In-Cell Touch LCD panels. This new range of stretched displays offer high brightness and an extended temperature range suitable for automotive, aerospace, and military as well as many other industrial applications. We highlight the 14.5″ 4K Stretched Display as below, but there are further models to consider form the range.

The wide viewing angles combined the latest LG In-Cell Touch and On-Cell touchscreen technology as well as choice of I2C or USB touch interfaces result in some of the most complete panel options on the market today.

Highlighted here, one of the LG In-Cell Touch products is the next generation 4K stretched display, new and exciting and ideal for cluster, CID (Centre Information Displays), Instrument Cluster for vehicles, and more.

The LG 14.5-inch 4K Stretched (LA145WF1-SL02) Features

  • High Resolution 2560×720
  • LVDS
  • 1000 cd/m2
  • 32:9 aspect ratio
  • IPS (89/89/89/89 Wide Viewing Angle)
  • High contrast
  • -30 to +85 Degree Celsius Operating Temperature
  • I2C type In-Cell Touch
  • Thin, light, and compact
  • Includes cover glass with anti-glare, anti-reflection, and anti-fingerprint

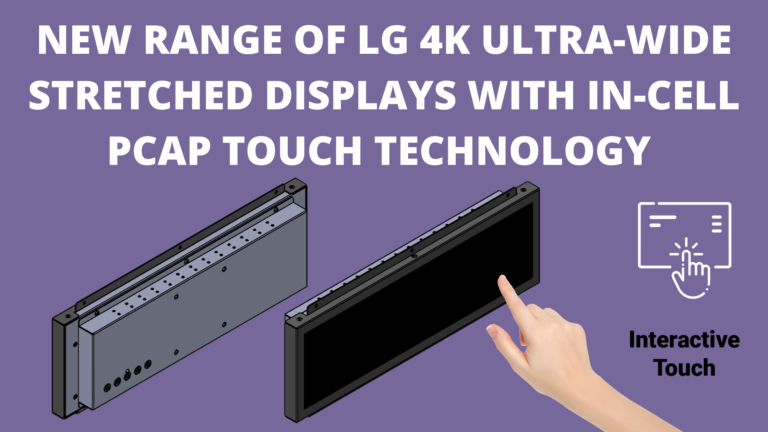

Open Framed Stretched Interactive Displays

CDS have also designed an open framed solution – the MO-145-EW-1000-D.

We have adapted the AD Board for this already impressive 14.5” high brightness panel and built-in a mating LED Driver Circuit.

We have also included a signal converting board inside the open frame chassis design.

Converting the incoming signal from the AD Board (output LVDS) to the GMSL Board (output GMSL signal) forwarding into the LCD panel.

Converting the touch interface signal from I2C to USB type signal.

Samples are available for your testing and approval.

Other options in the LG Touch range
  1. 10.25” (LA103WF4-SL02)
  • 1920×720, LVDS, 900 cd/m2, Wide Viewing Angle, -40 to +85 Degree Celsius Operating Temperature, I2C type In-Cell Touch (USB type by additional option)
  1. 12.3” (LA123WF4-SR08)
  • 1920×720, RSDS interface instead of LVDS, 700 cd/m2, Wide Viewing Angle, -40 to +85 Degree Celsius Operating Temperature, USB type On-Cell Touch (option)

interface board for lg incell

A/D card Add on – If you are not driving the panel direct and would like a HDMI / composite video interface board then we have our “M Range” of interface board solutions to support your every requirement: https://crystal-display.com/products/interface-boards/

An excellent overview of CDS’s range of small format TFT LCD panels can be found here, so please click for more information: https://crystal-display.com/products/small-format-tft-lcds/

For more information including data sheets please email the CDS technical sales support team at info@crystal-display.com or call our main office on +44 (0) 1634 791 600.
