New Generation of High-Resolution LCDs 7-inch and 13.3-inch Full Array Local Dimming TFT Modules

CDS highlight two models from the high-resolution LCDs range, the 7” and 13.3”.

Both sizes are high resolution, high brightness, ultra-high contrast ratio, the 7” has wide operating temperatures, and wide viewing angle IPS technology.

They also have the excellent next generation FALD (Full Array Local Dimming) capability with an amazing 100% colour gamut, which when combined with its in-cell touch technology results in the most incredible latest display solutions available.

13.3” Diagonal High-Resolution LCDs

  • 3840 x 2160 Pixel resolution
  • TFT Interface: 4 Lane eDP with 5.4Gbps Link Rates
  • Wide viewing angle (u/d/l/r): TYP 89°/89°/89°/89° (IPS Technology)
  • Contrast Ratio = 10 milllion:1 Typ.
  • Brightness with PCAP = 2000 cd/m2 (1296 Full Array Local Dimming) Typ
  • Backlight lifetime: 50,000 hours.
  • Touch Screen = In-Cell with Cover Glass
  • Operating Temperature: 0 +50O
  • Outer Dimensions: 326.00(W) x 207.9(H) x 21.06(D) (Including In-Cell Touch and Cover Glass)

7” Diagonal FALD Displays

  • 1200 x 1920 Pixel Resolution (Native Landscape)
  • MIPI Interface
  • Wide viewing angle (u/d/l/r): TYP 89°/89°/89°/89° (IPS Technology)
  • Contrast Ratio = 1300:1 typ.
  • Brightness with PCAP = 1800cd cd/m2 (360 Full Array Local Dimming) typ
  • Backlight lifetime = 50,000 hours
  • Touch Screen technology = In-Cell
  • Operating Temperature = -20 +70O
  • Outside Dimensions = 162.72(W) x 104.00(H) x 9.44(D) (Including the In-Cell Touch)

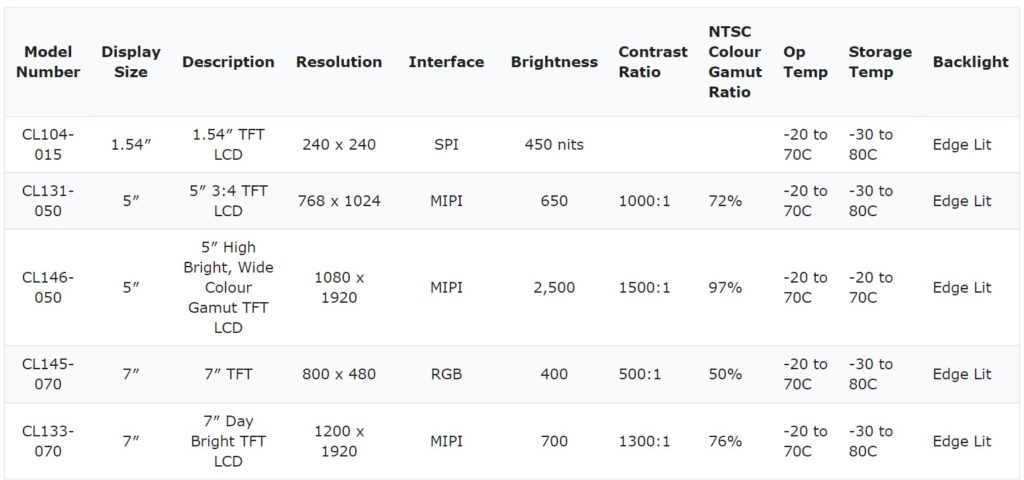

Please contact our technical sales team to discuss your project and requirements to see if these sizes or any other displays in our “CL range” with its ultra-high colour Gamut and Full Array Local Dimming (FALD) backlighting system etc.
