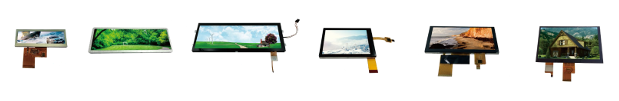

The primary focus across our entire product range has been to provide high-quality panels that cater to the industrial product market, meeting the stringent requirements of the automotive and aerospace industries. All of our panels are designed as high-brightness solutions, with luminance levels ranging from 500 cd/m² to 1000 cd/m². Even our 2.9” model, though not optimized for direct sunlight viewing, offers a respectable luminance of 300 cd/m².

For our larger panels, starting from 9.1” and upwards, we have incorporated a wide operating temperature range of -30°C to +85°C as a standard feature. This makes them suitable for a wide array of applications in harsh and highly demanding environments, where temperature extremes can be a challenge.

While not available across our entire range, several of our panels are equipped with the increasingly popular LVDS interface, which is compatible with most single board computers on the market today. Furthermore, we are proud to introduce the MIPI interface (Mobile Industry Processor Interface) in three of our current panels. Historically used primarily for smartphone displays, MIPI is emerging as an alternative interface to the traditional RGB and LVDS versions, catering to specific applications and industries.

At our core, we are dedicated to providing cutting-edge display solutions that meet the demands of the most critical industries and applications, ensuring that our customers receive the highest level of performance and quality. We look forward to continuously improving and expanding our product offerings to serve your evolving needs.

Within our product range, three specific panel sizes stand out in terms of technology and features: the 8.8”, 9.1”, and 12.3” panels utilize IPS (In-plane switching) technology. IPS offers an exceptionally wide viewing angle on all axes, reaching an impressive 170° both left to right and top to bottom. One remarkable advantage of IPS technology is its lack of factory pre-set viewing direction, which provides greater flexibility when mounting the panels in both portrait and landscape orientations.

In terms of touch functionality, all sizes come with options. The smaller sizes, including the 2.9”, 3.9”, 4.6”, and 5.8”, feature a 4-wire resistive overlay. However, we are actively working on plans to introduce capacitive touch sensors for these smaller sizes in the coming months. For the larger panels, ranging from 6.5” to 12.3”, we’ve incorporated the latest projected capacitive touch sensors with cover lenses, ensuring an enhanced touch experience.

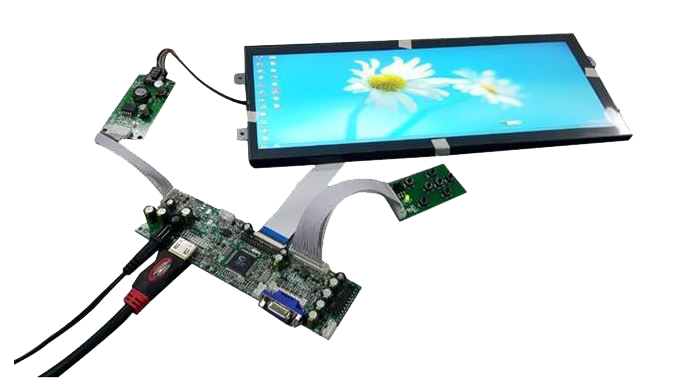

If you’re seeking a convenient, plug-and-play monitor kit solution, we offer that too. Both the 12.3” and 8.8” panel sizes can be supplied with a compact HDMI driver board, LED backlight driver, and an OSD keyboard. This comprehensive package includes all necessary internal cabling, making for a cost-effective display solution that can be seamlessly integrated into your custom housing. We are committed to expanding this aspect of our product range in the coming months, so we encourage you to stay updated with us for further developments.

At Crystal Display Systems Ltd, we are dedicated to providing versatile and cutting-edge display solutions that cater to a variety of applications and needs, ensuring the best performance and value for our customers. Your satisfaction is our priority, and we are excited to continue offering innovative options that meet your evolving requirements.

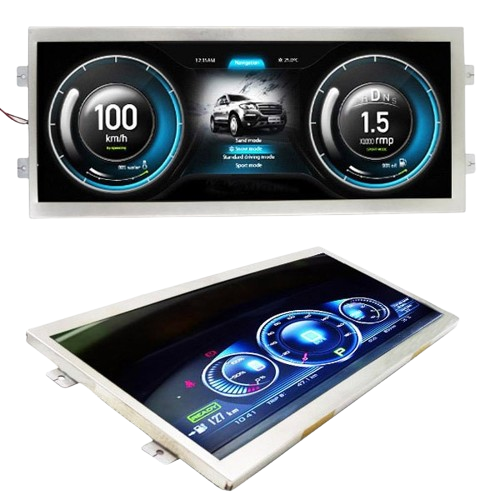

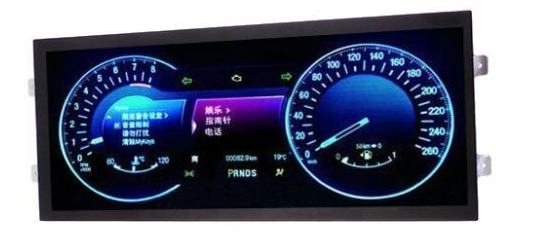

The 12.3″ panel within our range is a remarkable display solution, with a resolution of 1920 x 720 and the outstanding quality of IPS technology. This panel excels in both optical and environmental performance, making it the perfect choice for a wide range of demanding applications within the industrial, automotive, and aerospace sectors.

One of its standout features is its extraordinarily wide viewing cone, extending to 170° on both the horizontal and vertical axis. This feature allows for the versatile mounting of the panel in both landscape and portrait positions without any loss in color or viewing angle, providing flexibility to suit your specific needs.

Specification

  • 12.3″, 1920 x 720 Resolution
  • IPS Technology
  • 8:3 aspect ratio
  • 1000cd/m² brightness (5oKhrs)
  • 1000:1 contrast ratio
  • Viewing angles: L/R: 85°/85°  U/D: 85°/85°
  • LVDS interface (2 ports)
  • -30°C ~ 85°C operating temperature
  • -40°C ~ 95°C storage temperature
  • Outline dimensions (mm): 308.1 x 134.86 x 7.3
  • Active area (mm): 292.32 x 109.62
