Industrial AMOLED and PMOLED Displays
Understanding Industrial AMOLED & PMOLED Display Technology
CDS industrial OLED displays leverage the same basic OLED technology principles as consumer-oriented displays but are tailored for the rugged industrial environment. They use organic materials that emit light when an electric current is applied, with each pixel capable of individual control for brightness and colour. These displays are ultra-compact and lightweight, ranging from a fraction of an inch to a large monitor sized displays. Furthermore, they are engineered to withstand harsh conditions, making them an ideal choice for industrial applications.
AMOLED Displays
What are Industrial AMOLED Displays?
Our AMOLED (Active-Matrix Organic Light-Emitting Diode) display range represents the cutting edge of high-performance display technology, delivering unparalleled visual quality and functionality. Engineered to meet the demands of modern applications, these displays are available in sizes ranging from a compact 0.95” (120RGBx240) to an expansive 27.0” (4K resolution). With exceptional optical specifications and advanced features, our AMOLED displays are ideal for industries that prioritize superior image quality, responsiveness, and sleek design.
Precision and Durability in Compact Environments
In the fast-evolving landscape of industrial applications, where ruggedness and reliability are paramount, industrial AMOLED and PMOLED displays are rapidly gaining prominence. These compact yet robust screens offer several advantages when it comes to data visualization in constrained spaces. Additionally, they meet the stringent demands of industrial environments.
CDS industrial OLED displays are playing a pivotal role in the digital transformation of industrial settings. These robust, compact screens are well-suited for applications where data visualization is critical, and space is at a premium. As technology continues to advance, industrial OLED displays are poised to become even more integrated into the fabric of industrial processes.
Why Choose AMOLED Displays?
The combination of superior visual performance, innovative touch technology, and sleek design makes our AMOLED display range the ultimate solution for cutting-edge applications. Whether you’re designing compact wearables, high-end consumer electronics, or professional equipment, these displays offer the perfect balance of functionality, durability, and aesthetics.
With our AMOLED displays, you can elevate your product to a new level of excellence, ensuring it meets the highest standards of modern technology and user experience.
Display Innovation

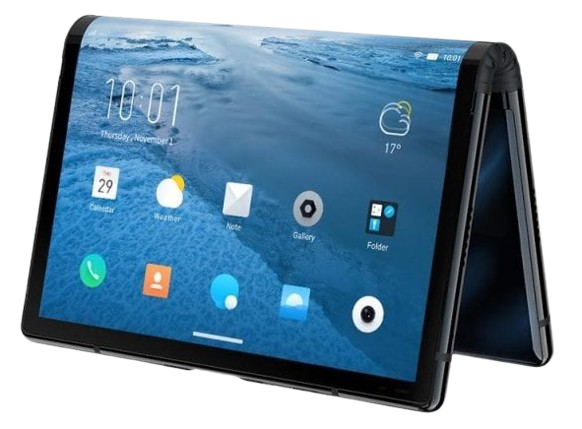

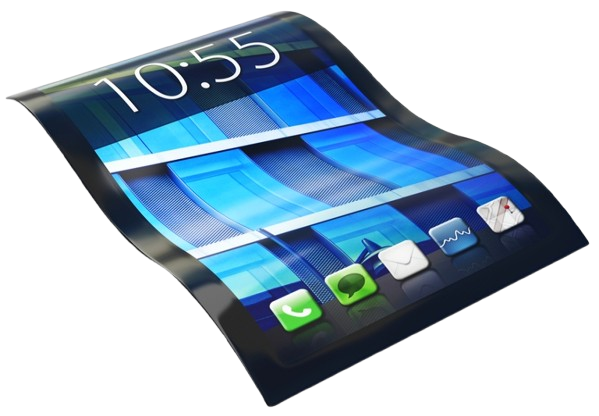

Flexible AMOLED – Flexible AMOLED is an advanced display technology derived from AMOLED. It replaces traditional rigid glass substrates with flexible materials, such as polyimide films enabling displays that can bend, fold and even roll.
“It inherits the core benefits of AMOLED, such as high contrast, vivid colours and self-emissive pixels, while offering the additional mechanical flexibility and durability.”
Key Features of Our AMOLED Displays
- High-Resolution Options:
Our lineup includes compact displays with resolutions as high as 2K and 4K, offering incredible pixel density and detail. This ensures stunning clarity and precision, even in smaller form factors, making them perfect for applications requiring sharp text, detailed graphics, and immersive visuals.
- Outstanding Contrast Ratios:
With contrast ratios of up to 100,000:1, these displays deliver deep, true blacks and vibrant, lifelike colours. This makes AMOLED technology a perfect choice for devices where colour accuracy and contrast are critical, such as professional monitors, portable devices, and multimedia applications.
- Ultra-Fast Response Time:
Boasting a response time of just 0.2ms, our AMOLED displays are optimized for dynamic visuals, ensuring smooth motion without lag or ghosting. This is particularly advantageous for gaming, video playback, and other applications requiring rapid and precise screen updates.
- Slim and Lightweight Design:
Designed with portability and aesthetics in mind, these displays feature profiles of less than 1.0mm in thickness. Their slim and lightweight construction makes them ideal for integration into sleek, modern devices like smartphones, wearables, and other compact electronics.
- Wide Operating Temperature Range: AMOLEDs are designed to function reliably across a wide range of environmental conditions, with standard models offering operating temperatures from -20°C to +70°C.
- Advanced Touch Technology: Many of the sizes in our AMOLED range incorporate the latest “Incell” capacitive touch technology. This cutting-edge feature integrates the touch sensor directly onto the AMOLED panel, eliminating the need for additional layers. The result is one of the thinnest touch-enabled display options on the market, with profiles as slim as 1.5mm. This integration not only reduces thickness but also enhances touch sensitivity, responsiveness, and durability.
Product Specifications
| Diagonal Size | Resolution | Outline Dimensions | Active Area | Interface | Operating Temp | Brightness | Remarks |
| 0.95 | 120 x 240 | 12.80(H) x 27.35(V) x 0.74(D)mm | 10.80(H) x 21.60(V)mm | 3W & 4W SPI | -20C ~ +70C | 450cd/m² | |
| 1.4 | 454 x 454 | 38.41(H) x 38.51(V) x 0.88(D)mm | 35.41(H) x 35.41(V)mm | MIPI | -20C ~ +70C | 450cd/m² | Round + CTP |
| 1.6 | 320 x 320 | 31.32(H) x 36.05(V) x 2.05(D)mm | 27.02(H) x 30.40(V)mm | 3W & 4W SPI, MIPI, QAD SPI | -20C ~ +70C | 320cd/m² | CTP |
| 2.4 | 450 x 600 | 38.72(H) x 51.56(V) x 1.00(D)mm | 36.72(H) x 48.96(V)mm | SPI, MCU, MIPI | -20C ~ +80C | 800cd/m² | |
| 2.7 | 800 x 600 | 56.60(H) x 47.25(V) x 1.50(D)mm | 54.60(H) x 40.95(V)mm | MIPI | -40C ~ +85C | 400cd/m² | |
| 3.7 | 480 x 800 | 53.94(H) x 90.00(V) x 1.50(D)mm | 48.24(H) x 80.40(V)mm | 24-Bit RGB | -30C ~ +80C | 250cd/m² | |
| 4.3 | 568 x 1210 | 49.13(H) x 103.55(V) x 0.75(D)mm | 47.37(H) x 100.91(V)mm | MIPI | -20C ~ +70C | 600cd/m² | |

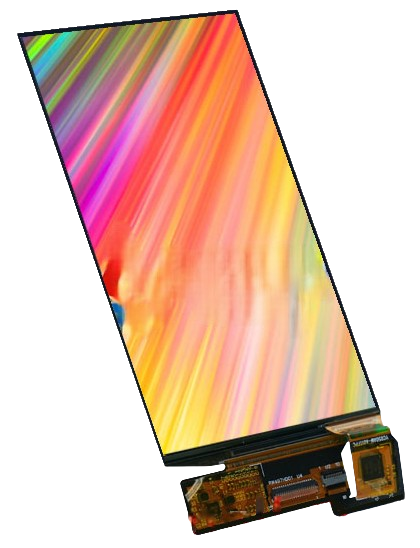

| 5.0 | 720 x 1280 | 64.12(H) x 116.72(V) x 11.64(D)mm | 61.88(H) x 110.02(V)mm | HDMI | -20C ~ +70C | 300cd/m² | In-cell CTP |
| 5.0 | 720 x 1280 | 64.12(H) x 116.72(V) x 11.64(D)mm | 62.48(H) x 110.62(V)mm | HDMI | -20C ~ +70C | 300cd/m² | CTP |
| 5.0 | 720 x 1280 | 64.12(H) x 116.72(V) x 0.84(D)mm | 61.88(H) x 110.02(V)mm | MIPI | -20C ~ +70C | 500cd/m² | On-cell CTP |
| 5.0 | 720 x 1280 | 70.52(H) x 123.12(V) x 1.57(D)mm | 62.48(H) x 110.62(V)mm | MIPI | -20C ~ +70C | 500cd/m² | CTP |
| 5.5 | 1080 x 1920 | 69.74(H) x 126.60(V) x 0.82(D)mm | 67.82(H) x 120.58(V)mm | MIPI | -20C ~ +60C | 350cd/m² | On-cell CTP |
| 5.5 | 1080 x 1920 | 70.36(H) x 127.34(V) x 0.82(D)mm | 68.26(H) x 121.34(V)mm | MIPI | -20C ~ +60C | 500cd/m² | On-cell CTP |
| 5.5 | 1080 x 1920 | 70.36(H) x 127.34(V) x 0.83(D)mm | 68.26(H) x 121.34(V)mm | HDMI | -20C ~ +60C | 500cd/m² | CTP |

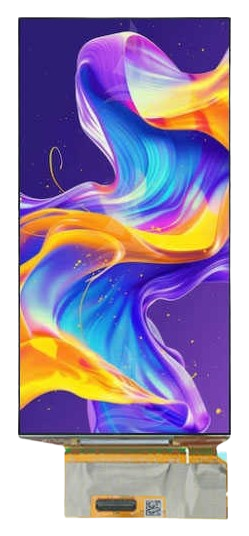

| 6.0 | 1080 x 2160 | 70.07(H) x 142.30(V) x 0.78(D)mm | 68.26(H) x 136.51(V)mm | HDMI | -20C ~ +70C | 500cd/m² | CTP |
| 6.0 | 1080 x 2160 | 70.07(H) x 142.30(V) x 0.78(D)mm | 68.26(H) x 136.51(V)mm | MIPI | -20C ~ +70C | 500cd/m² | On-cell CTP |
| 6.0 | 1080 x 2160 | 70.07(H) x 142.30(V) x 0.78(D)mm | 68.26(H) x 136.51(V)mm | HDMI | -20C ~ +70C | 500cd/m² | On-cell CTP |
| 6.4 | 1080 x 2340 | 69.84(H) x 150.42(V) x 0.80(D)mm | 68.04(H) x 147.42(V)mm | HDMI | -20C ~ +70C | 500cd/m² | On-cell CTP |
| 6.4 | 1080 x 2340 | 69.84(H) x 150.42(V) x 0.80(D)mm | 68.04(H) x 147.42(V)mm | MIPI | -20C ~ +70C | 500cd/m² | On-cell CTP |
| 6.5 | 1080 x 2400 | 71.45(H) x 156.64(V) x 0.29(D)mm | 69.55(H) x 144.26(V)mm | MIPI | -20C ~ +70C | 500cd/m² | Flexible |
| 7.0 | 1080 x 1920 | 89.13(H) x 160.91(V) x 1.01(D)mm | 87.13(H) x 154.91(V)mm | MIPI | -20C ~ +70C | 950cd/m² | On-cell CTP |

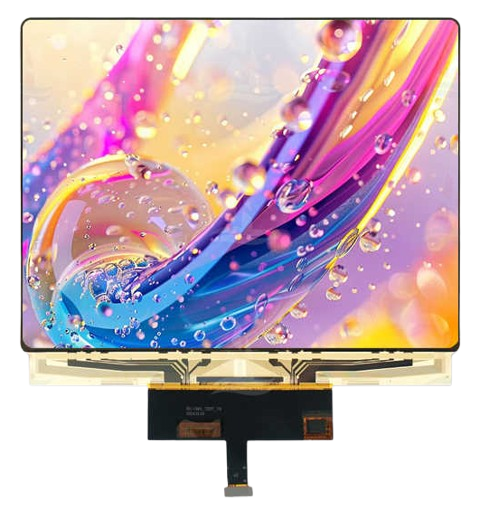

| 8.01 | 2480 x 1860 | 165.69H) x 137.92(V) x 0.34(D)mm | 162.69(H) x 122.02(V)mm | MIPI | -40C ~ +80C | 600cd/m² | In-cell CTP, Flexible |
| 11.2 | 2560 x1536 | 249.22(H) x 154.08(V) x 0.96(D)mm | 244.22(H) x 146.53(V)mm | MIPI | -20C ~ +70C | 450cd/m² | In-cell CTP |

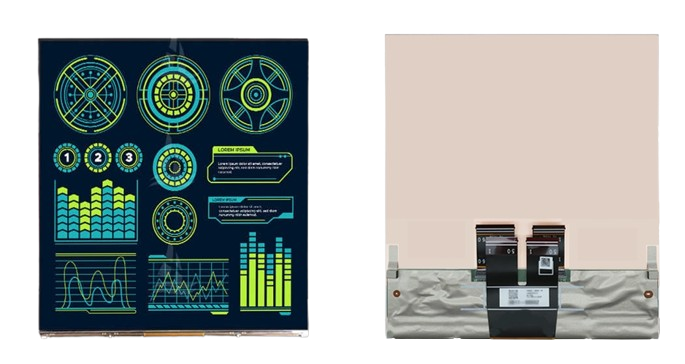

| 12.8 | 1728 x 1888 | 224.76(H) x 248.02(V) x 5.80(D)mm | 218.76(H) x 239.02(V)mm | LVDS | -40C ~ +85C | 600cd/m² | |
| 13.3 | 1536 x 2048 | 213.80(H) x 284.80(V) x 0.53(D)mm | 202.75(H) x 270.34(V)mm | EDP | 0 ~ +50C | 300cd/m² | Flexible |
| 14.2 | 2650 x1392 | 343.63(H) x 186.63(V) x 6.44(D)mm | 319.33(H) x 167.74(V)mm | EDP 1.4b | -40C ~ +85C | 650cd/m² | In-cell CTP, Flexible |
| 14.5 | 3000 x1876 | 316.56(H) x 201.06(V) x 1.62(D)mm | 312.30(H) x 192.29(V)mm | MIPI | -20C ~ +70C | 400cd/m² | On-cell CTP |
| 15.1 | 2560 x1600 | 328.90(H) x 210.46(V) x 1.30(D)mm | 324.10(H) x 202.56(V)mm | EDP 1.2 | -40C ~ +85C | 800cd/m² | |
| 15.1 | 2560 x 1600 | 328.90(H) x 210.46(V) x 5.80(D)mm | 324.10(H) x 202.56(V)mm | HDMI | -40C ~ +85C | 800cd/m² | |
| 15.6 | 3840 x 2160 | 357.22(H) x 208.27(V) x 3.35(D)mm | 344.22(H) x 193.62(V)mm | EDP 1.4b | -20C ~ +70C | 320cd/m² | CTP |
| 15.6 | 3840 x 2160 | 348.22(H) x 201.62(V) x 1.10(D)mm | 344.22(H) x 193.62(V)mm | EDP 1.4b | -20C ~ +70C | 400cd/m² | |
| 15.6 | 3840 x 2160 | 348.22(H) x 201.62(V) x 15.0(D)mm | 344.2176(H) x 193.6224(V)mm | HDMI | -20C ~ +70C | 400cd/m² | |
| 27.0 | 3840 x 2160 | 607.66(H) x 348.18(V) x 1.24(D)mm | 597.66(H) x 336.18(V)mm | EDP | -20C ~ +70C | 400cd/m² | |
| 27.0 | 3840 x 2160 | 607.66(H) x 348.18(V) x 13.6(D)mm | 597.66(H) x 336.18(V)mm | HDMI | -20C ~ +70C | 400cd/m² |

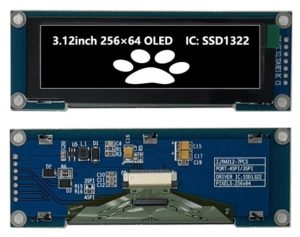

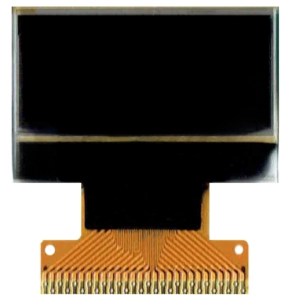

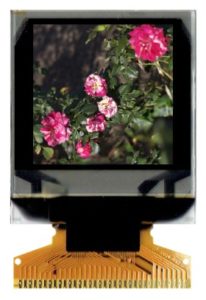

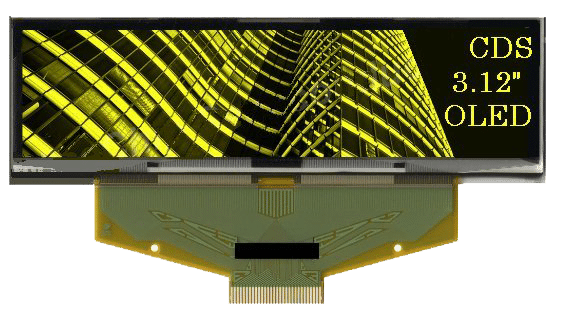

PMOLED Displays
Why Choose PMOLED Displays?
PMOLED (Passive-Matrix Organic Light-Emitting Diode) technology has become a game-changer in the world of small graphic displays, delivering optical performance that surpasses traditional LCDs (Liquid Crystal Displays).
Its advantages in terms of image quality, efficiency, and versatility have driven a rapid shift from older display technologies like monochrome LCD and TFT LCD toward PMOLED solutions.
This transition is largely fuelled by PMOLED’s ability to provide exceptional visibility, fast response times, and low power consumption, making it the ideal choice for a wide range of applications.
Various Sizes & Configurations
PMOLED displays are available in various sizes and configurations, offering full RGB colour, monochrome, and area colour options to suit diverse needs. Additionally, they can serve as a direct replacement for traditional LCD modules, thanks to their compatibility with standard character display modules, which simplifies
Key Features of PMOLED Technology
- Extremely Wide Viewing Angle: PMOLEDs boast an impressive 175° viewing angle across all axes, ensuring clear and uniform visibility from almost any direction. This makes them particularly useful for applications requiring displays that are easy to read, even in challenging viewing conditions.
- High Contrast Ratio: With a contrast ratio exceeding 10,000:1, PMOLEDs deliver unparalleled image clarity, offering deep blacks and vivid colours. This high contrast ensures that text, graphics, and images remain sharp and easily discernible, even in bright environments.
- Fast Response Times: PMOLED displays are up to ten times faster than LCDs in response times, enabling smooth transitions and eliminating motion blur. This makes them highly suitable for dynamic or rapidly changing content, such as animations or video playback.
- Extended Lifespan: PMOLEDs are designed for durability, with typical lifespans of up to 60,000 hours for standard colours and up to an impressive 200,000 hours for yellow displays. This longevity ensures reliable performance over time, reducing maintenance and replacement costs.
- Low Power Consumption: One of the standout features of PMOLED technology is its energy efficiency. Unlike LCDs, which require power-hungry LED backlights, PMOLEDs use emissive technology that consumes significantly less power. This makes them ideal for battery-powered devices, extending operational time without compromising performance.
- Wide Operating Temperature Range: PMOLEDs function reliably in extreme environments, with operating temperatures ranging from -40°C to +85°C. This resilience makes them suitable for industrial, automotive, and outdoor applications where temperature extremes are common.
- Lightweight and Compact Design: With a thickness typically ranging between 1.1mm and 2.5mm and a weight of just 2 grams, PMOLED displays are lightweight and compact. This makes them perfect for applications where space and weight are critical factors, such as wearable devices and portable electronics.
- Emissive Technology: PMOLEDs do not require a backlight, as the pixels themselves emit light. This contributes to their slim design, high efficiency, and superior image quality, as there is no backlight bleed that can reduce contrast or uniformity.
Need a Custom Solution?
At CDS, our deep-seated belief in the uniqueness of every application fuels our commitment to providing tailored solutions. We take immense pride in offering custom solutions that are meticulously crafted to align with the specific demands of your project. This dedication to personalized service seamlessly extends to our selection of OLED displays, where customization is not just a feature but a fundamental principle that drives us. We offer a diverse range of configurations, ensuring that your display is not merely a screen, but a thoughtfully designed solution that caters to your precise needs.
Transparent OLED Technology
Introducing the CDS Transparent OLED product line, offering a top-tier solution for creating seamless see-through installations
