Industrial Intelligent Display Modules: The Perfect Blend of Linux and Android
Whatever you application, Linux and Android solutions could give you the flexibility you need
The demand for intelligent, customisable, and secure display modules has never been higher. Whether you’re designing solutions for retail kiosks, industrial control systems, or EV charging stations, our Linux and Android based display modules deliver the flexibility and performance needed to meet your requirements. Here’s a closer look at these innovative technologies.

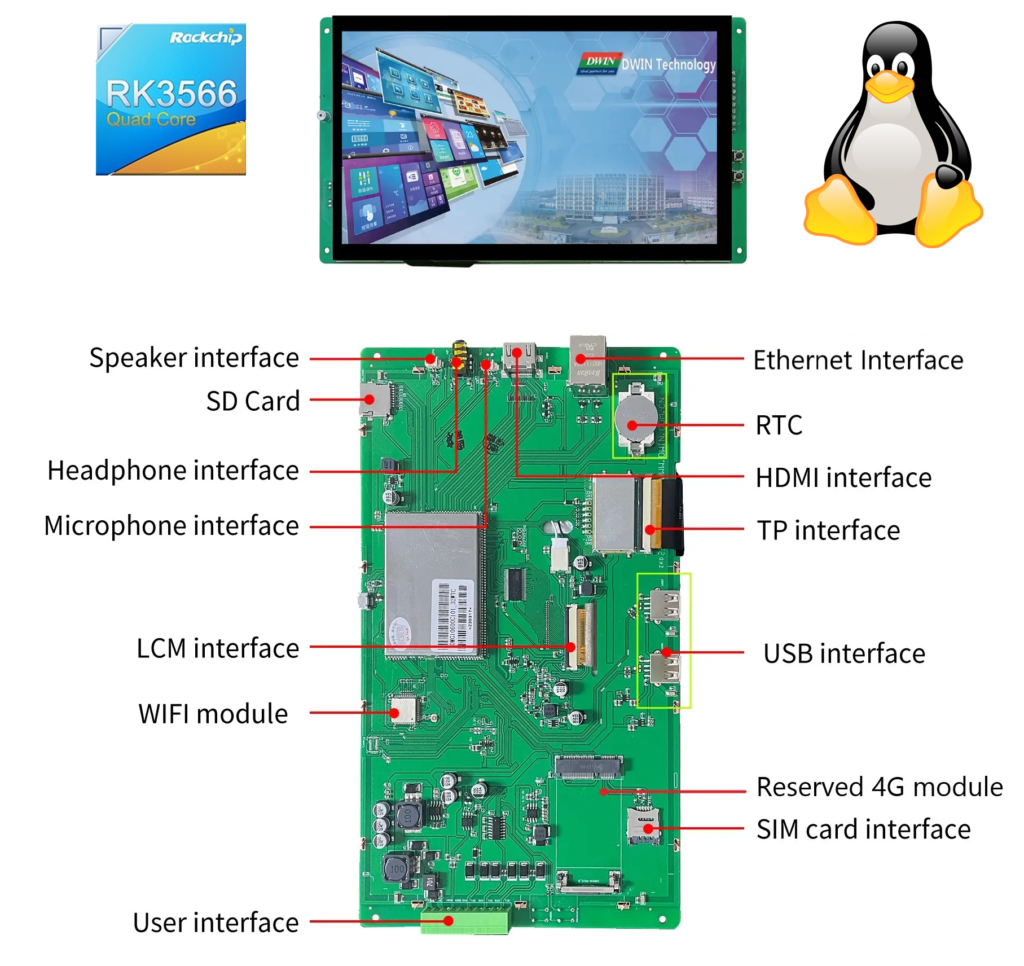

Linux-Based Industrial Intelligent Display Modules
Our Linux-based display modules are designed to provide robust performance and unparalleled flexibility. These modules support standard Linux applications and custom-developed solutions, making integration with peripheral hardware both efficient and seamless.
Key Features
Display Options: Sizes ranging from 5” (800×480) to 15.0” (1024×768).
Wide View Technology: IPS TFT displays, supporting landscape and portrait orientations.
Touch Capability: PCAP touch included as standard.
Processor Options: Allwinner T113 Dual-Core and Rockchip RK3566 Quad-Core ARM processors.
Operating System Options: Supports Linux Debian 10, and kernels 3.10, 4.19, and 5.4.
Memory: 8GB FLASH (eMMC) and 2GB RAM (DDR4).
Real-Time Clock: Powered by a button cell.
Casing Options: Plastic ABS enclosures for quick and easy installation.
Comprehensive Connectivity and Interfaces
Connectivity: Ethernet, Wi-Fi, Bluetooth, and optional 4G support.
Interfaces: USB, HDMI, RS232, RS485, and TTL for communication with various peripherals.
Peripheral Ports: Support for headphones, external speakers, and microphones.
Expandable Storage: 64GB SD card slot for app updates.
Customisable and Secure
The open-source nature of Linux allows developers to create fully tailored user interfaces. This flexibility is complemented by Linux’s high-security features, which protect against viruses and malware while providing a stable environment.
Whether you need adaptability, reliability, or enhanced security, our Linux-based intelligent display modules are the ideal solution for industrial applications.

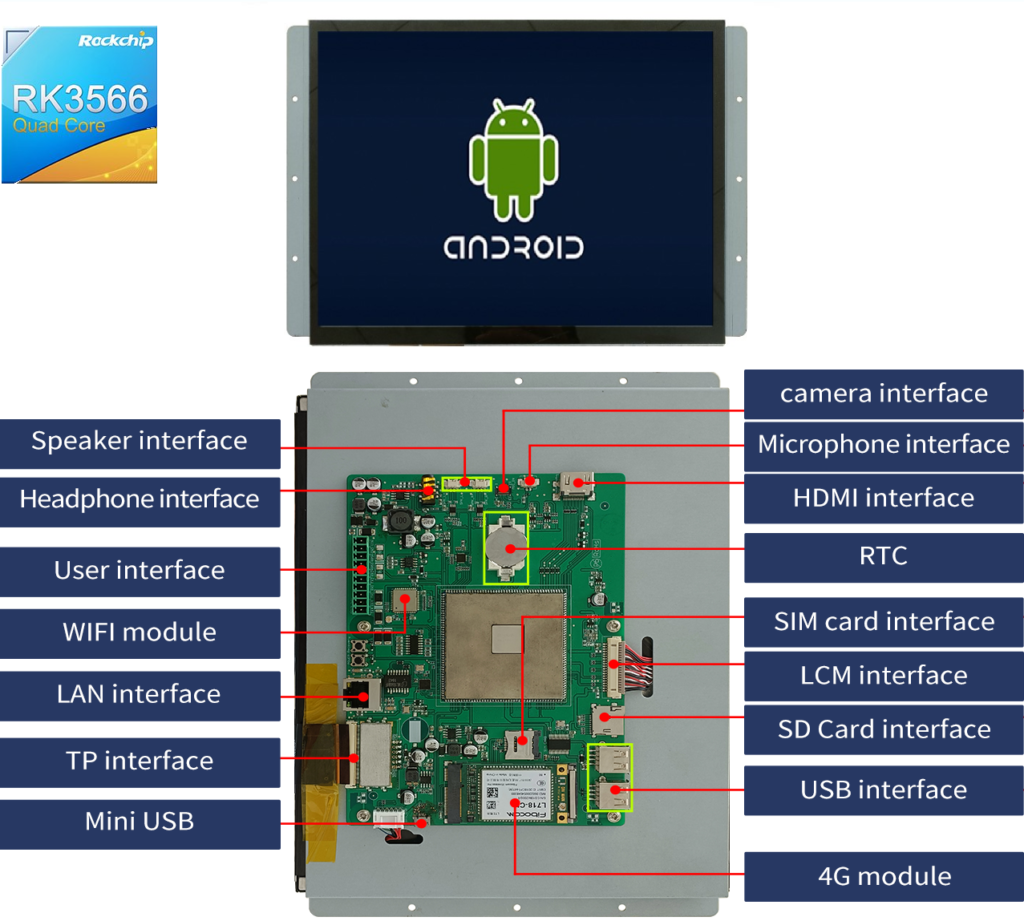

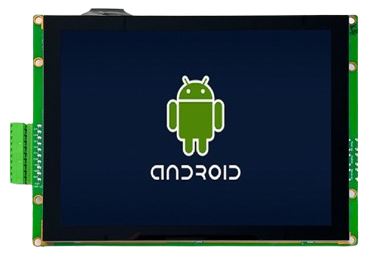

Android-Based Industrial Intelligent Display Modules
For those seeking a more consumer-friendly and app-rich environment, our Android-based display modules provide an excellent alternative. With support for off-the-shelf Android apps and custom APK development, these modules are perfect for a wide range of applications.
Key Features
Display Options: Sizes from 5” (800×480) to 15.6” (1920×1080).
Wide View Technology: IPS TFT displays for landscape and portrait orientations.
Touch Capability: PCAP touch included as standard.
High Performance: Powered by a Rockchip RK3566 Quad-Core ARM processor.
Memory: 8GB FLASH (eMMC) and 2GB RAM (DDR4).
Operating System: Runs on Android 11 OS.
Real-Time Clock: Powered by a button cell.
Comprehensive Connectivity and Interfaces
Connectivity: Ethernet, Wi-Fi, Bluetooth, and optional 4G support.
Interfaces: USB, HDMI, RS232, RS485, and TTL for connecting peripheral devices.
Peripheral Ports: Support for headphones, external speakers, and microphones.
Expandable Storage: 64GB SD card slot for app updates.
Customisable for Any Application
Android’s open-source framework allows developers to easily modify the operating system to suit specific applications, enabling unique and intuitive user interfaces.
From EV charging stations to industrial control systems, our Android-based modules deliver the performance, connectivity, and adaptability you need.
Why Choose Our Intelligent Display Modules?
Versatility: Wide range of sizes and configurations to suit any industrial application.
Reliability: Designed to operate in demanding environments.
Customisation: Open-source platforms allow for tailored solutions.
Connectivity: Multiple interfaces ensure seamless integration with peripheral devices.
Whether you’re looking for the flexibility and security of Linux or the user-friendly adaptability of Android, our intelligent display modules provide the perfect solution for your industrial needs.
