Linux & Android Displays
Embedded Solution

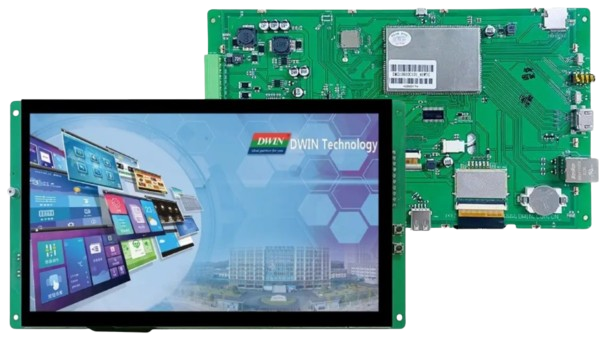

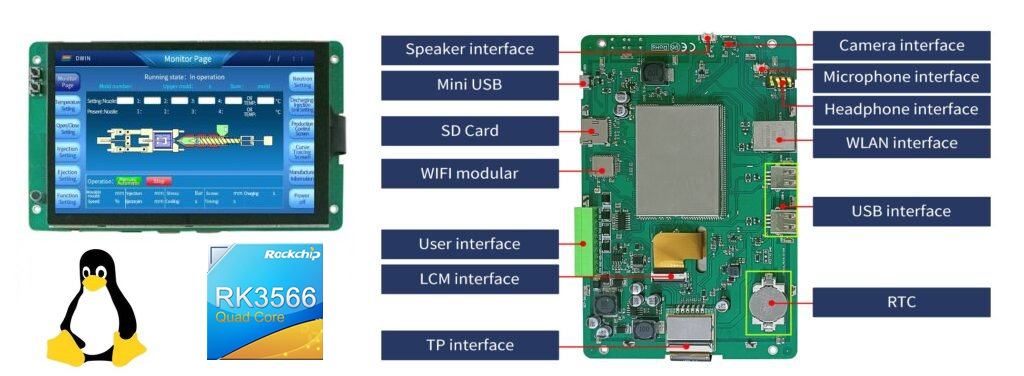

Industrial Intelligent Display Modules: Linux-Based, Flexible, and Secure
Our highly versatile Linux-based industrial intelligent display modules deliver a comprehensive range of integrated features, offering unparalleled flexibility for diverse applications. With support for standard Linux apps and custom-developed solutions, these modules make integrating peripheral hardware into your system straightforward and efficient.
Key Features
- Display Options: Available in sizes from 5” (800×480) to 15.0” (1024×768).
- Wide View Technology: IPS TFT, supporting landscape and portrait use.
- Touch Capability: PCAP touch included as standard.
- Processor Options: Allwinner T113 Dual-Core and Rockchip RK3566 Quad-Core ARM based processors.
- Operating System Options: Supports Linux Debian 10, and kernels 3.10, 4.19, and 5.4.
- Memory: Equipped with 8GB FLASH (eMMC) and 2GB RAM (DDR4).
- Real Time Clock: Powered by a button cell
- Inshell Options: Plastic ABS cased versions for a quick and easy installation.
Comprehensive Connectivity and Interfaces
- Connectivity: Ethernet, Wi-Fi, Bluetooth, and optional 4G support.
- Interfaces: USB, HDMI, RS232, RS485, and TTL for communication with various peripheral devices.
- Dedicated Peripheral Ports: Supporting headphones, external speakers and microphone.
- Expandable Storage: Includes a 64GB SD card slot for app updates.
Customizable and Highly Secure
As an open-source operating system, Linux allows developers to modify the code, enabling the creation of fully customized user interfaces tailored to specific applications. Furthermore, Linux provides a high level of security against viruses and malware. By restricting program changes to the system administrator, it ensures a robust, stable, and secure environment.
Whether you need adaptability, reliability, or enhanced security, our Linux-based intelligent display modules provide the ideal solution for industrial applications.
Check Out Our UART BLOG Posts

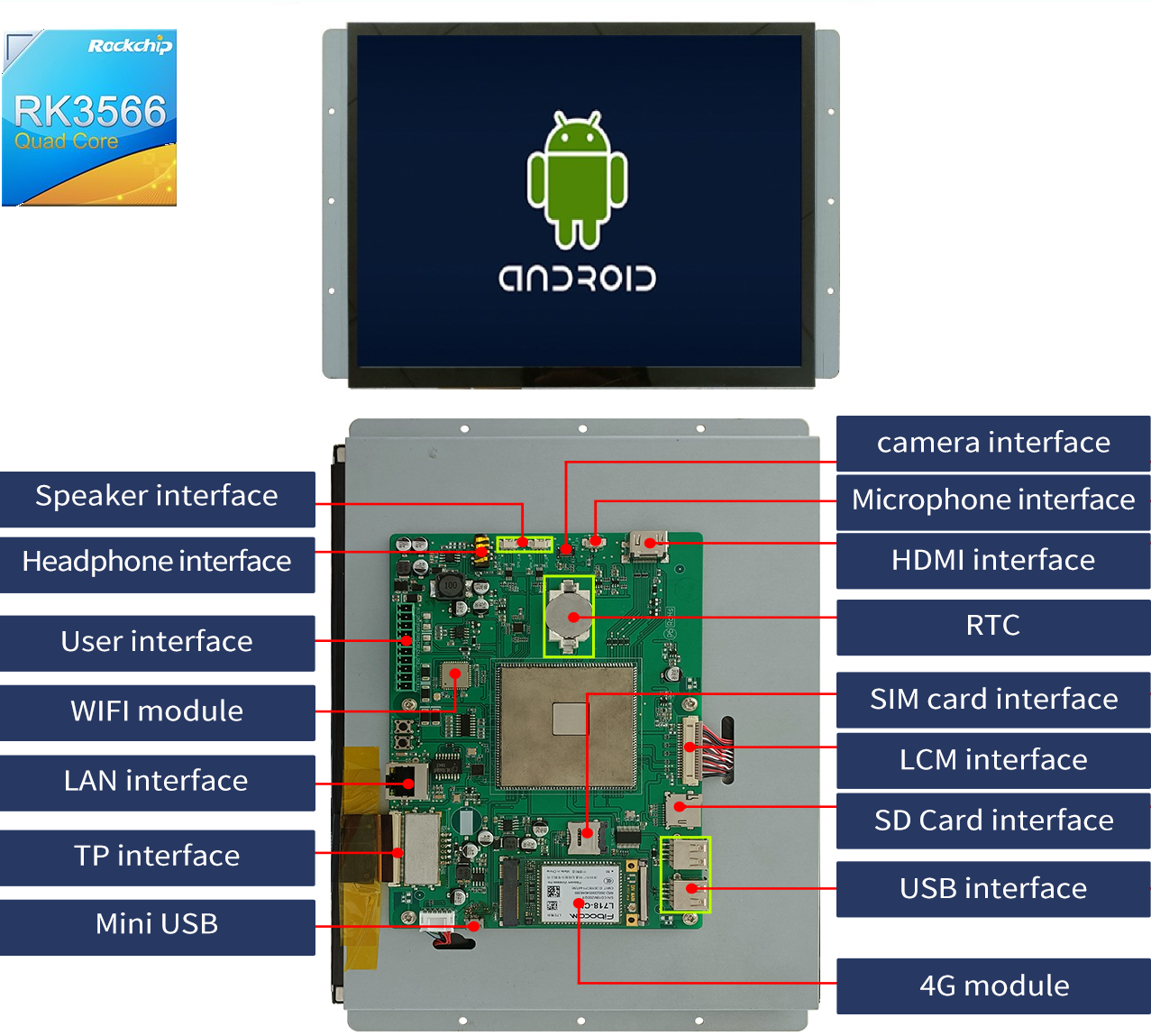

Industrial Intelligent Display Modules: Android-Based, Fully Featured, and Highly Customizable
Our Android-based industrial intelligent display modules offer an extensive range of standard integrated features, making them ideal for diverse applications. Combined with the flexibility to configure and customize using off-the-shelf Android apps or user-developed APK files, these modules facilitate seamless integration of peripheral hardware into your design.
Key Features
- Display Options: Sizes ranging from 5” (800×480) to 15.6” (1920×1080).
- Wide View Technology: IPS TFT, supporting landscape and portrait use.
- Touch Capability: PCAP touch included as standard.
- High Performance: Powered by a Rockchip RK3566 Quad-Core ARM processor.
- Memory: Equipped with 8GB FLASH (eMMC) and 2GB RAM (DDR4).
- Operating System: Runs on Android 11 OS.
- Real Time Clock: Powered by a button cell
Comprehensive Connectivity and Interfaces
- Connectivity: Ethernet, Wi-Fi, Bluetooth, and optional 4G support.
- Interfaces: USB, HDMI, RS232, RS485, and TTL for communication with various peripheral devices.
- Dedicated Peripheral Ports: Supporting headphones, external speakers and microphone.
- Expandable Storage: Includes a 64GB SD card slot for app updates.
Customizable for Any Application
As Android is an open-source operating system, developers can easily modify the code to create a customized user interface tailored to their specific application.
Whether you’re integrating peripheral hardware or designing a unique interface, our intelligent display modules deliver the performance, connectivity, and adaptability you need.
