Stretched LCD Displays

Introducing Our Stretched LCD Displays Range

CDS offers state-of-the-art Ultra-Wide Stretched Bar Type Displays, also known as BAR/Bar Type/Bar Top Displays, with diverse stretched resolutions. Featuring high-brightness LCD screens and an ultra-wide aspect ratio, they deliver outstanding visual performance for gaming, vending, transportation, museums, and LED signage. Their sunlight-readable design makes them perfect for outdoor applications, ensuring excellent visibility. With exceptional clarity and versatility, CDS’s stretched monitors elevate signage solutions across various industries.

CDS stretched 1/3 cut
37.6 inch stretched panel pc railway

Features of CDS Ultra-wide Stretched Displays

  • Available in a range of Screen Sizes from 6.2″ to 86″.
  • High Brightness Sunlight Readable LED Backlight
  • Up to 4K UHD resolution
  • Available as enclosed monitors or component parts for integration
  • Wide range of video inputs available
  • Optional PCAP and IR Multi Touch Screens
  • IP65 / IP66 Options Available

Benefits of Bar Type Ultra-wide Stretched (Cut) Displays

  • Unique aspect ratio to catch viewers attention
  • No special software required
  • Amazing high resolution images
  • Industrial grade LCD solutions for optimum performance and reliability
  • Connect to existing Media Players, PCs and more via HDMI

Our Product Range

Our Stretched Product Range features displays with distinctive elongated shapes, perfect for applications where a non-traditional aspect ratio is desired. These displays are meticulously designed to cater to a variety of industries and use cases, offering unparalleled versatility and visual impact.

Below is a table showing our stretched monitor product range

Part NumberDescriptionBrightnessResolutionBacklightOuter Dimensions (mm)Notes
PNL-062-001-EW-1000-L6.2″ Stretched LCD Panel1000 cd/m²1024×250LED165.7 x 55 x 3.85Industrial Grade
MO-120-001-EW-1000-Z12″ Stretched High Brightness LCD Monitor1,000 cd/m²1920 x 720 LEDTBAIndustrial Grade
MO-123-001-EW-700-G12.3″ Stretched LCD Monitor 700 cd/m²1024×255LEDTBA – panel dimensions are 326.5×101.4Industrial Grade wide temp -20 to +70 °C
MO-123-002-EW-700-W12.3″ Stretched LCD Monitor 700 cd/m²1920×720LED341.1 x 142.9 x 61Industrial Grade, Optional Open frame, IP65 front/IP66 chassis available
MO-139-002-EW-300-G13.9″ Stretched LCD Monitor 300 cd/m²1280×398LEDTBA – panel dimensions are 358.5 x 131.3Industrial Grade
MO-139-001-EW-600-L13.9″ Stretched LCD Monitor 600 cd/m²1280×398LED360.9 x 132.5 x 48.6Industrial Grade
MO-149-001-EW-250-G14.9″ Stretched LCD Monitor250 cd/m²1280×136LEDTBC, Panel Dimensions are 396 x 63 mmIndustrial Grade
MO-150-002-EW-1000-L15″ Stretched High Bright LCD Monitor 1000 cd/m²1280×242LED410 x 108.2 x 39.3Industrial Grade
MO-150-001-EW-300-W15″ Stretched LCD Monitor 300 cd/m²1280×248LED401.7 x 116.9 x 61Industrial Grade
MO-150-003-EW-700-Z15″ Stretched LCD Monitor700 cd/m²1280 x 204 LEDTBAIndustrial Grade
MO-155-001-EW-250-G15.5″ Stretched LCD Monitor 250 cd/m²1280×390LEDTBA – panel dimensions are 376.3 x 114.7Industrial Grade
MO-159-003-EW-1000-L15.9″ Stretched High Bright LCD Monitor 1000 cd/m²1280×512LED398.4 x 176.2 x 52.7Industrial Grade
MO-163-001-EW-320-G16.3″ Stretched LCD Monitor 320 cd/m²1366×238LED445.8 x 109.6 x 41.3Industrial Grade
MO-163-002-EW-X-G16.3″ Stretched LCD Monitor TBA1366×203LEDTBACOMING SOON
MO-163-003-EW-800-G16.3″ Stretched LCD Monitor800 cd/m²1920×285LEDTBC , panel dimensions are 432.0 x 85.1 mmIndustrial Grade wide temp -20 to +70 °C
MO-163-004-EW-350-L16.3″ Stretched LCD Monitor 350 cd/m²1366×238LED436.3 x 100.2 x 43Industrial Grade (also available with inbuilt touch)
MO-171-001-EW-X-G17.1″ Stretched LCD Touch Monitor TBA1366×486LEDTBAIndustrial Grade
MO-172-001-EW-1000-L17.2″ Stretched LCD Monitor 1000 cd/m²1366×510LED432.9 x 181.1 x 40Industrial Grade
MO-187-001-EW-1000-L18.7″ Stretched LCD Monitor (shelf edge)1000cd/m²1920×146LED499.6 x 54.3 x 31.8Industrial Grade, Ultra Slim Shelf Edge
MO-190-003-EW-700-W19″ Stretched LCD Monitor 300 / 700 cd/m² 1680×342LED499.4 x 136.9 x 61Industrial Grade, Optional Open frame, IP65 front/IP66 chassis available
MO-191-002-EW-700-G19.1″ Stretched LCD Monitor 700 cd/m²1920×360LEDTBA – panel dimensions are 495.6 x 114.9Industrial Grade, 250 nits also available
MO-191-003-EW-1200-L19.1″ Stretched High Bright LCD Monitor 1200 cd/m²1920×388LED508.01 x 132.00 x 47.05Industrial Grade
MO-192-001-EW-500-Z/PT19.2″ Stretched LCD PCAP Monitor500cd/㎡1920×360LED502 x 126 x 44.1 mmIndustrial Grade, inbuilt PCAP touch
MO-194-003-EW-700-G19.4″ Stretched LCD Monitor 700 cd/m²1920×539LED498.2 x 160.6 x 46Industrial Grade, also available with 250 nits
MO-194-001-EW-1000-G19.4″ Stretched High Bright LCD Monitor 1000 cd/m²1920×510LEDTBA – panel dimensions are 495.6 x 150.7Industrial Grade
MO-194-002-EW-1000-L19.4″ Stretched High Bright LCD Monitor 1000 cd/m²1920×536LED499.6 x 152.3 x 31.8Industrial Grade
MO-198-001-EW-250-G19.8″ Stretched LCD Monitor 250 cd/m²1920×640LED498.2 x 185.4 x 45Industrial Grade
MO-213-001-EW-1000-L21.28″ Stretched High Bright LCD Monitor1000 cd/m²1920×316LED558.5 x 119.5 x 46.1Industrial Grade
MO-218-001-EW-1000-G21.79″ Stretched LCD Monitor1000 cd/m²1920×818LED535.8 x 248 x 41.8 Industrial Grade
MO-219-001-EW-700-Z21.9″ Stretched LCD Monitor700 cd/m²1920×720LEDTBA, AA is 527.04 x 195.5 mmIndustrial Grade
MO-239-001-EW-500-G23.9″ Stretched LCD Monitor500 cd/m²1920×359LEDTBA – panel dimensions are 630 x 144Industrial Grade
MO-239-002-EW-700-Z23.9″ Stretched LCD Monitor700 cd/m²1920×360LEDTBA – AA is 597.6 (H) x 112 (V) mmIndustrial Grade
MO-240-001-EW-1000-L24″ Stretched High Brightness LCD Monitor 1000 cd/m²1920×360LEDTBA – panel dimensions 623.4 x 142.8 x 16.9Industrial Grade
MO-240-003-EW-700-Z24″ Stretched LCD Monitor700 cd/m²1920 x 360LEDTBAIndustrial Grade
MO-244-002-EW-1000-L24.4″ Stretched LCD Monitor1000 cd/m²1920×540LEDTBC, Panel Dimensions are 623.4 x 198.9 x 16.9Industrial Grade
MO-245-001-EW-500-G24.5″ Stretched LCD Monitor500 cd/m²1920×540LED635.0 x 210.6 x 46.9Industrial Grade
MO-246-001-EW-700-Z24.6″ Stretched LCD Monitor700 cd/m²1920×578LEDTBA, AA is 597.6 (H) x 180 (V) mmIndustrial Grade
MO-280-003-EW-1000-L28″ Stretched High Bright LCD Monitor 1000 cd/m²1920×360LED737 x 170 x 57.9Industrial Grade
MO-280-005-EW-600-W28″ Stretched LCD Monitor600 cd/m²1920×360LED754.3 x 188.7 x 66Industrial Grade
MO-280-006-EW-700-Z28″ Stretched LCD Monitor700 cd/m²1920×360LEDTBAIndustrial Grade
MO-285-002-EW-500-W28.5″ Stretched LCD Monitor 500 cd/m² 1920×540LEDTBAIndustrial Grade
MO-286-001-EW-3200-L28.6″ Stretched High Bright LCD Monitor3,200 cd/m² 1920×540LED734.5 x 232.5 x 60.1 High TNi Panel, Industrial Grade
MO-286-002-EW-1800-L28.6″ Stretched High Bright LCD Monitor1,800 cd/m² 1920×540LED734.5 x 232.5 x 60.1 High TNi Panel, Industrial Grade
MO-288-001-EW-1000-Z28.8″ Stretched High Bright LCD Monitor1,000 cd/m² 1920×540LEDTBA, AA is 699.5(H) x 145 (V) mmIndustrial Grade
MO-290-001-EW-700-V29″ Stretched LCD Monitor700 cd/m²1920×540LED741 x 235 x 55Digital Signage
MO-290-002-EW-700-Z29″ Stretched LCD Monitor700 cd/m²1920×540LED723.8 x 229.3 x 68 Industrial Grade
MO-293-001-EW-700-V29.3″ Stretched LCD Monitor700 cd/m²1920×708 LED742 x 297 x 56Digital Signage
MO-294-001-EW-1000-L29.4″ Stretched High Bright LCD Monitor 1000 cd/m²1920×720LED738 x 305.2 x 61.9Industrial Grade
MO-294-002-EW-2000-L29.4″ Stretched High Bright LCD Monitor 2000 cd/m²1920×720LED738 x 305.2 x 58.9High TNi Panel, Industrial Grade
MO-348-001-EW-2000-L34.8″ High Bright Stretched LCD Monitor 2000 cd/m²1920×264LED902 x 151.9 x 62.2Industrial Grade
MO-358-001-EW-1600-L35.8″ High Bright Stretched LCD Monitor 1600 cd/m²1920×534LED902 x 273.3 x 62.2Industrial Grade
MO-358-002-EW-1000-L35.8″ High Bright Stretched LCD Monitor 1000 cd/m²1920×532LEDTBC, Panel Dimensions are 895.5 x 265.6 x 31.1 Industrial Grade
MO-366-001-EW-1000-L36.6″ High Bright Stretched LCD Monitor 1000 cd/m²1920×290LED962.8 x 177 x 56.2Industrial Grade
MO-368-001-EW-1000-L36.8″ High Bright Stretched LCD Monitor 1000 cd/m²1920×358LED962.8 x 210.1 x 56.2Industrial Grade
MO-368-002-EW-1000-Z36.8″ High Bright Stretched LCD Monitor 1000 cd/m²1920×360LED963.2 (H) × 209.2(V) x 61.2 mmIndustrial Grade
MO-370-001-EW-1000-L37″ Stretched High Bright LCD Monitor1000 cd/m²1920×540LED938.5 x 290.5 x 61.8High TNi panel, Industrial Grade
MO-370-002-EW-700-Z37″ Stretched High Bright LCD Monitor700 cd/m²1920×540LED917.9 x 283.9 x 70Industrial Grade
MO-370-003-EW-3000-L37″ Stretched High Bright LCD Monitor3000 cd/m²1920×540LED938.5 x 290.5 x 61.8High TNi panel, Industrial Grade
MO-376-003-EW-1000-L37.6″ Stretched High Bright LCD Monitor 1000 cd/m²1920×540LED962.6x 304.9 x 54.2Industrial Grade
MO-378-001-EW-700-Z37.8” Industrial Stretched Display700 cd/m²1920×387LEDTBA – active area 941.18 x 190 mm Industrial Grade
MO-380-003-1000-EW-Z38″ Stretched High Bright LCD Monitor 1000 cd/m²1920×540LED959.4 x 308 x 73.4 EOL (replacement is the MO-370-002-EW-700-Z)
MO-380-004-EW-500-W38″ Stretched High Bright LCD Monitor 500 cd/m² 1920×540LED989.6 x 311.9 x 86Industrial Grade, 700 & 1,000 & 1,500 nits available as well as IP65 front/IP66 chassis
MO-420-002-EW-500-W42″ High Bright Stretched LCD Monitor 500 cd/m²1920×480LED1068.18 x 292.22 x 107.5Industrial Grade
MO-422-001-EW-3000-L42.2″ Stretched High Bright LCD Monitor3000 cd/m²1920×480LED1072.8 x 296.9 x 66.1 High TNi panel, Industrial Grade
MO-422-002-EW-1000-L42.2″ Stretched High Bright LCD Monitor1000 cd/m²1920×480LED1062.5 x 286.5 x 84.7 High TNi panel, Industrial Grade
MO-424-001-EW-1000-Z42.4″ Stretched LCD Monitor1,000 cd/m²1920×143LED1141.4 x 148.6 x 63 mmIndustrial Grade, 12vdc I/P, with mounting flanges, MOQ applies
MO-430-001-EW4K-1000-L43″ Stretched LCD Monitor1000 cd/m²3840×720LEDTBC, Panel Dimensions are 1096.5 x 224.1 x 25.1Industrial Grade
MO-435-001-EW-2000-L43.5″ High Bright Stretched LCD Monitor 2000 cd/m²1920×268LEDTBC, Panel Dimensions are 1121.7 x 184.8 x 21.6Industrial Grade
MO-435-002-EW-1000-Z43.5″ High Bright Stretched LCD Monitor 1000 cd/m²1920×270LEDTBC, AA is 1095.84(H) x 153.0(V) mmIndustrial Grade
MO-448-002-EW4K-1000-L44.8″ High Bright 4K Stretched LCD Monitor 1000 cd/m²3840×1076 LEDTBC, Panel Dimensions are 1121.7 x 338.9 x 21.6 Industrial Grade
MP-470-001-EW-500-Z47″ High Bright 4K Stretched LCD Monitor 500 cd/m²3840×160LED1,212 x 65.9 x 67 mmIndustrial Grade, Android board
MO-483-001-EW-1000-Z48.3″ Stretched LCD Monitor1000 cd/m²3840×640 LED1243.6 x 228.4 mmIndustrial Grade
MO-485-001-EW-600-V48.5″ Stretched LCD Monitor600 cd/m²1920×357LED1251 x 267 x 65.5Digital Signage
MO-485-003-EW-3000-L48.5″ Stretched LCD Monitor3000 cd/m²1920×360LED1235 x 252.2 x 66 High TNi panel,, Industrial Grade
MO-485-004-EW4K-1200-L48.5″ Stretched LCD Monitor1200 cd/m²3840×720 LEDTBC, Panel Dimensions are 1244.6 x 265.3 x 27.6Industrial Grade
MO-495-004-EW-800-Z49.5″ Stretched LCD Monitor800 cd/m²3840×1080LED1243.6 x 374.2 x 66.03Industrial Grade
MO-495-006-EW-1000-Z49.5″ Stretched LCD Monitor1000 cd/m²1920×540LEDTBA, AA is 1209.6(H) × 340.2(V) mmIndustrial Grade
MO-495-005-EW4K-1800-L49.5″ Stretched 4K LCD Monitor1800 cd/m²3840×1080LED1247.2 x 381.3 x 68.4 Industrial Grade
MO-519-001-EW4K-1400-L50.5″ Stretched High Bright 4K LCD Monitor1400 cd/m²3840×1077LED1304.2 x 394.8 x 67.4Industrial Grade
MO-566-001-EW-1000-L56.6″ Stretched High Bright 4K LCD Monitor500 cd/m²1920×238LEDTBC, Panel Dimensions are 1462.4 x 203.3Industrial Grade
MO-566-002-EW-1000-Z56.6″ Stretched High Bright LCD Monitor1000 cd/m²1920×240LEDTBA, AA is 1428.5 mm (H) x 177(V) mmIndustrial Grade
MO-574-001-EW4K-1000-L57.4″ Stretched High Bright 4K LCD Monitor 1000 cd/m²3840×810LED1462.5 x 333.8 x 65.1Industrial Grade
MO-575-001-EW-2000-Z57.5″ Stretched High Bright 4K LCD Monitor 2000 cd/m²3840×810LEDTBA, AA is 1428.48(H) x 301.2(V) mmIndustrial Grade
MO-584-002-EW4K-600-V58.4″ Stretched 4K LCD Monitor600 cd/m²3840×1067LED1463 x 429 x 56Digital Signage
MO-584-003-EW-800-Z58.4″ Stretched 4K LCD Monitor800 cd/m²3840×1080LED1473.6 x 446.6 x 72.02 Industrial Grade
MO-674-001-EW4K-1000-L67.4″ Stretched 4K High Bright LCD Monitor1,000 cd/m²3840×1076LED1699.70 x 500.40 x 71.40Industrial Grade
MO-770-001-EW4K-1000-V77″ Stretched 4K LCD Monitor1,000 cd/m²3840×600LED1934 x 381.6 x 65.2Digital Signage
MO-775-001-EW-700-Z77.5″ Stretched 4K LCD Monitor700 cd/m²3840×1080LED1,929.6 x 567.6 x 72.03Industrial Grade
MO-860-001-EW4K-500-LG86″ Stretched LG LCD Monitor500 cd/m²3840×600LED2158.8 x 348.5 x 81.7Industrial Grade

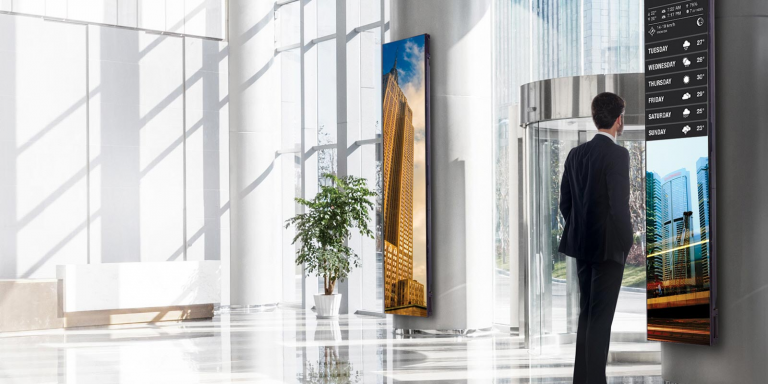

stretched monitor

What Is A Stretched LCD Monitor?

A stretched LCD monitor, also known as a stretched display or bar-type display, is a type of LCD (Liquid Crystal Display) screen that has a unique and non-standard aspect ratio. Unlike traditional monitors that typically have a 4:3 or 16:9 aspect ratio, stretched LCD monitors have an elongated and narrow shape.

Applications

  • Digital Signage: Perfect for eye-catching displays in retail, malls, airports, and public spaces.
  • Advertising Displays: Engage audiences with dynamic, high-impact content.
  • Transportation Displays: Improve passenger info in buses, trains, airports, and subways.
  • Gaming Machines: Enhance gameplay with immersive, wide-field visuals.
  • Museums & Exhibitions: Present interactive exhibits and multimedia with a unique appeal.
  • Retail Applications: Showcase products, promotions, and branding to attract customers.
  • Entertainment Venues: Deliver eye-catching promotions and event info in theaters and arenas.
  • Hospitality: Enhance guest experiences with wayfinding, event details, and promotions.
  • Corporate Lobbies: Elevate branding with dynamic corporate messaging and announcements.
  • Control Rooms: Optimize monitoring with panoramic, data-rich displays.
  • Vending Machines: Upgrade interactivity with product info, ads, and promotions.
  • Outdoor Signage: Ensure visibility with high-brightness displays for any lighting condition.
  •
transport display, stretched monitor
CDS stretched install ships

Need a Touchscreen For a Stretched Display? No Problem!

We have both IR and PCAP touchscreens available for use with our stretched monitors. They can be fully customized in terms of glass size, thickness, number of touch points etc. CDS has even made bespoke shape cover glass with specific cut outs and produced the glass in custom colours with logo / branding etc

CDS stretched touch PCAP overlay

Looking For a Shelf Edge POS Display That Stands Out? Look No Further!

Explore our extensive collection of Stretched LCD Displays tailored for shelf edge advertising. Our lineup includes a 27.5″ HD LCD (Model: MO-275-001-EW-1000-L), and we’re excited to introduce a recently added 21″ variant crafted from a full HD panel (Model: MO-210-EW-1200-L).

Torn Between Using a Stretched Display or a Transparent LCD?

Why Not Combine Both For Something Special?

To create CDS stretched LCDs, we modify traditional panels by cutting the bottom for a unique aspect ratio. Taking it further, we’ve applied this process to Transparent LCDs, resulting in Stretched Transparent LCD panels. Available as raw components or finished showcases—with or without touchscreens—we offer various sizes and options. Contact our technical sales team to discuss your needs!

stretched transparent, stretched display showcase

Take a Look At Our Stretched Displays in Action!
